Открытый узел

Winch Attachment Hoses, Spools, Switches, And Filter

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT303355	1	Wiring Harness	-
2	AT303356	1	Wiring Harness	-
3	AT274649	1	O-Ring	-
4	AT274815	1	O-Ring	-
5	AT264964	2	Switch	-
6	AT264630	1	Cap	-
7	AT274880	1	Indicator Lamp	-
8	AT274378	1	Bulb	-
9	XGE10LREDCF	3	Fitting	SUB FOR AT218837
10	PMH3851	1	Fitting	SUB FOR AT218833
10	PMH3827	1	Fitting	-
11	AT277590	1	Solenoid Valve	ALSO ORDER (4) 19M9482
12	AT265596	1	Housing	-
13	19M9482	4	Screw	M5 X 50, SUB FOR AT265055
14	AT265373	1	Solenoid Valve Coil	-
15	AT265687	1	Cap	-
16	LW7624268	1	Seal Kit	SUB FOR AT265383
17	AT277081	2	Clip	-
18	AT274183	2	Socket Head Screw	-
19	AT274400	2	Elec. Connector Housing	-
20	AT277081	2	Clip	-
21	AT274183	2	Socket Head Screw	M8 X 12
75	AT278694	1	Hydraulic Hose	Fabricate
75	51M7106	2	O-Ring	7.500 X 1.500 mm
78	AT279877	2	Solenoid Valve	-
79	19M9090	2	Cap Screw	M6 X 100
80	24M7088	2	Washer	6.600 X 12 X 1.600 mm
81	AT218872	3	Tee Fitting	-
82	AT265457	1	Hydraulic Hose	Fabricate
82	51M7106	2	O-Ring	7.500 X 1.500 mm
83	51M7106	2	O-Ring	7.500 X 1.500 mm
83	XEW10LOMDCF	1	Adapter Fitting	SUB FOR AT218871
88	AT303334	1	Hydraulic Hose	Fabricate
88	51M7108	2	O-Ring	12 X 2 mm
89	AT300689	1	Filter Element	-
90	PMH3841	1	Fitting	SUB FOR AT277091
90	51M7109	1	O-Ring	15 X 2 mm
91	XEL15LCF	1	Fitting	SUB FOR AT218875 AND LW472300414
91	51M7109	1	O-Ring	15 X 2 mm
96	AT265457	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
97	XGE10LMEDCF	2	Fitting	SUB FOR AT218623

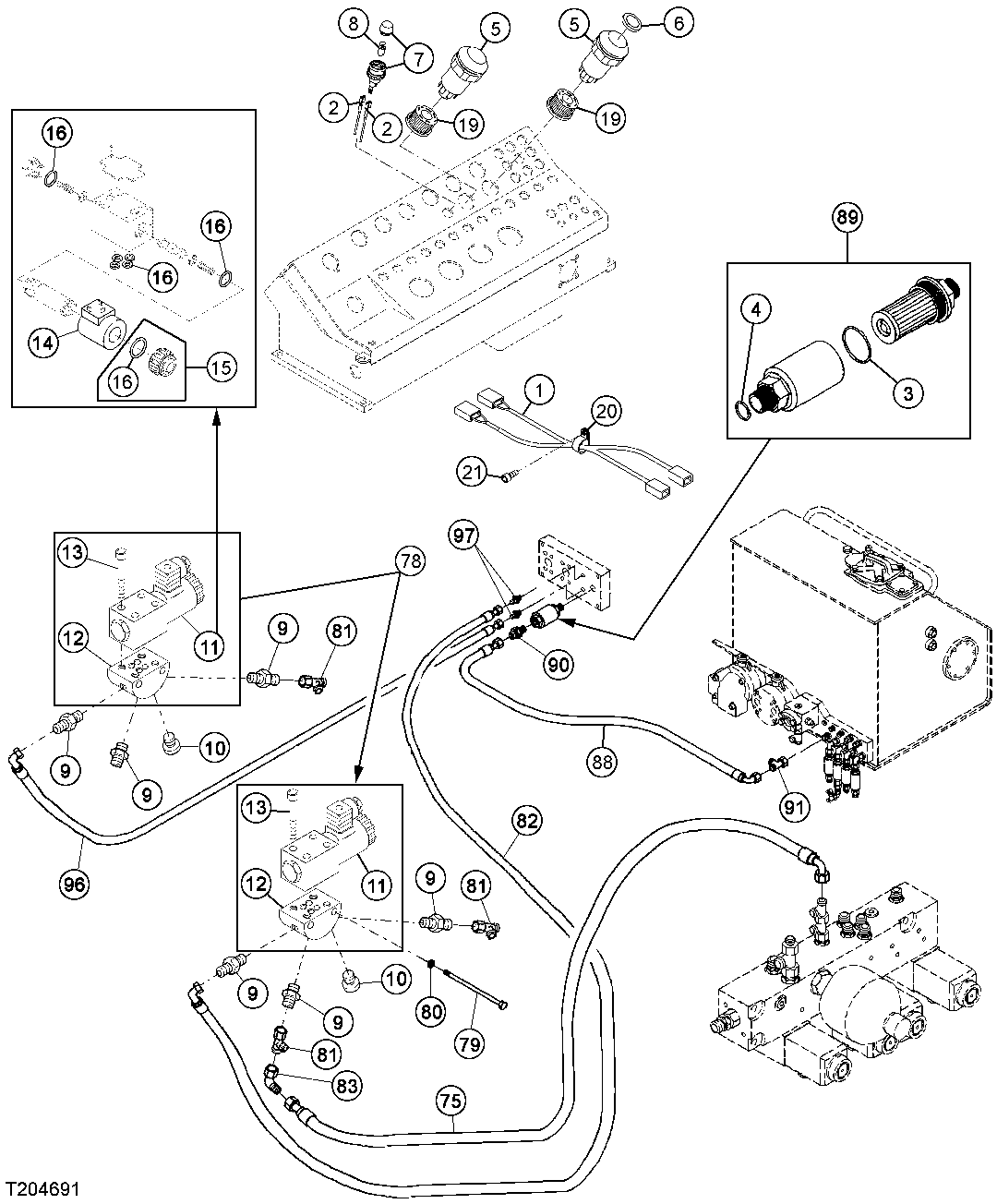

Winch Attachment Hoses, Spools, Switches, And Filter
