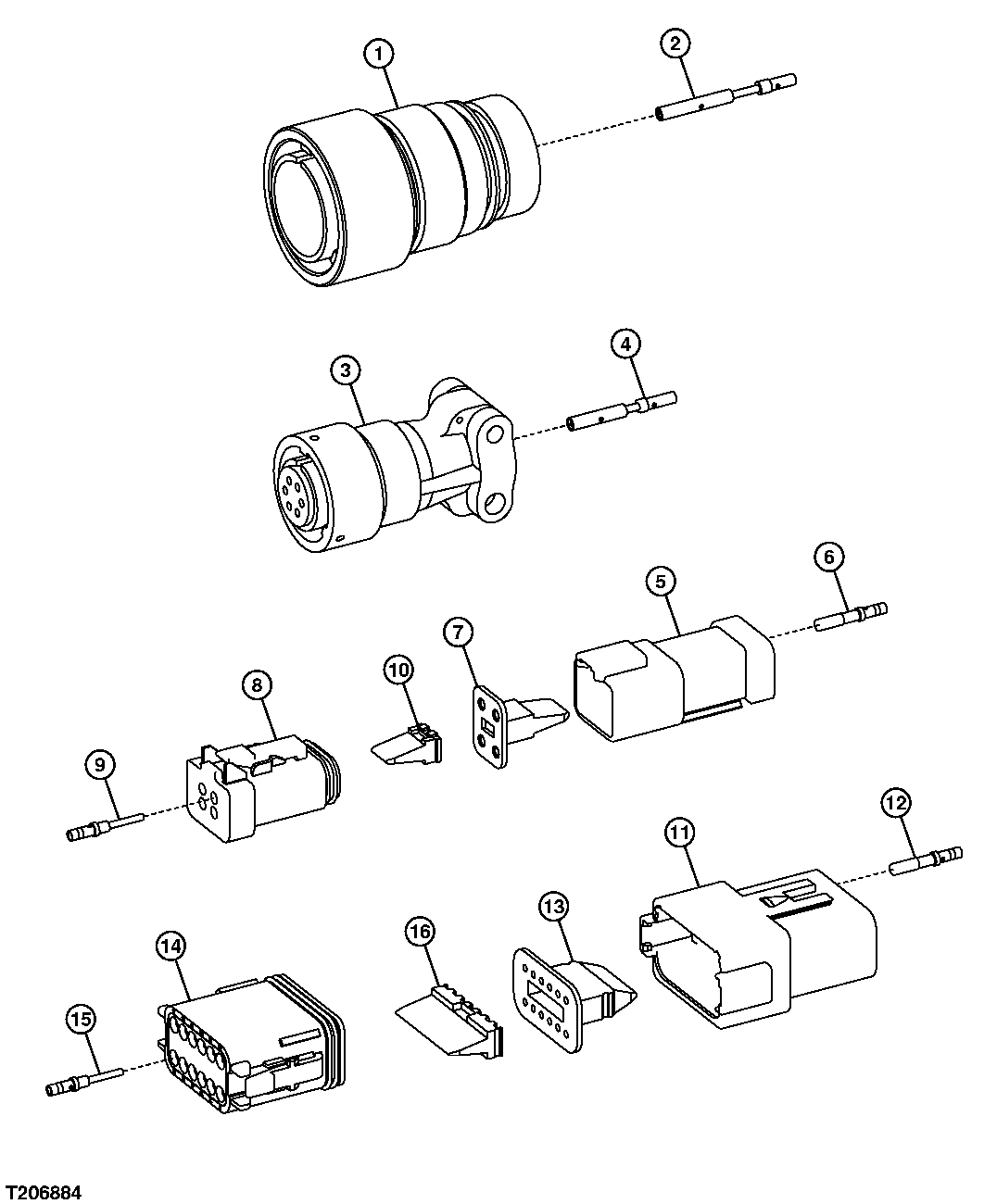

TRAVEL CONTROLLER, POTENTIOMETER, AND PEDAL ELECTRICAL CONNECTORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8667	1	Elec. Connector Housing	14 WAY HOUSING, SOCKET CONTACT (TRAVEL CONTROLLER)
2	57M8689	1	Elec. Connector Terminal	1.5 MM2 FEMALE CONTACT
3	57M8668	1	Elec. Connector Housing	6 WAY HOUSING, SOCKET CONTACT (TRAVEL CONTROLLER)
4	57M8694	1	Elec. Connector Terminal	1.5 MM2 FEMALE CONTACT
5	57M8672	1	Elec. Connector Housing	4 WAY RCPT, PIN CONTACTS (INCH PEDALS)
6	57M7541	1	Elec. Connector Terminal	SOLID TERM M, 14-16 GA.
7	57M7619	1	Elec.Connect Locking Device	WEDGE
8	57M8673	1	Elec. Connector Housing	4 WAY RCPT, SOC CONTACTS (INCH PEDALS)
9	57M7542	1	Elec. Connector Terminal	-
10	57M7618	1	Electrical Connector Assy	PLUG LOCKING WEDGE
11	57M8674	1	Elec. Connector Housing	12 WAY RCPT, PIN CONTACTS (PEDALS)
12	57M7541	1	Elec. Connector Terminal	SOLID TERM M, 14-16 GA.
13	57M7682	1	Elec.Connect Locking Device	RECPT. LOCKING WEDGE, 12PIN
14	57M8675	1	Elec. Connector Housing	12 WAY PLUG, SOC CONTACTS (PEDALS)
15	57M7542	1	Elec. Connector Terminal	-
16	57M7681	1	Elec. Connector Terminal	PLUG LOCKING WEDGE, 12 SOCKET
17	57M9025	1	Elec. Connector Seal	4WAY INTERFACIAL SEAL (NOT ILLUSTRATED)
18	57M9026	1	Elec. Connector Seal	12WAY INTERFACIAL SEAL (NOT ILLUSTRATED)

TRAVEL CONTROLLER, POTENTIOMETER, AND PEDAL ELECTRICAL CONNECTORS
