Открытый узел

TRACK IDLER, IDLER SHAFT, BRACKETS AND GUIDES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT314663	1	Idler	AT276965 NLA, ALSO ORDER AT309928 AND AT309929
2	AT276966	1	Shaft	Idler Shaft
2	T189260	1	Shaft	Idler Shaft, SUB FOR AT317724
3	AT276959	2	Bushing	-
4	AT277480	2	Ring	-
5	AT277479	2	Cover	-
5	T189259	2	Cover	SUB FOR AT317725
6	LW10316798	2	Bracket	ALSO ORDER (4) LW11080690, SUB FOR AT277932
7	AT277478	24	Bolt	-
8	AT277477	2	Washer	-
9	AT277475	2	Seal	-
9	AT279001	2	Seal	SUB FOR AT317728
10	AT278273	2	Guide	Inner
11	AT277929	2	Strip	-
12	19M8035	8	Cap Screw	M16 X 35
13	AT277470	1	Plug	Rubber Stopper
14	AT314663	1	Idler	AT276964 NLA, ALSO ORDER AT309928 AND AT309929
14	AT314663	1	Idler	-
15	T189169	2	Gasket	SUB FOR AT317727
15	AT277476	2	Ring	-
16	AT277933	4	Strap	-
17	AT277935	8	Shim	-
18	19M8100	8	Cap Screw	M20 X 180
19	24M7396	8	Washer	21 X 34 X 3 mm
20	AT276835	2	Spring Pin	-
21	AT309928	1	Bracket	LH, SUB FOR AT277931
22	AT309929	1	Bracket	RH, SUB FOR AT277940
23	19M7889	4	Cap Screw	M24 X 80
25	AT277937	2	Cover	-
26	AT277936	6	Plate	-
27	19M7963	4	Cap Screw	M20 X 100
28	R113500	4	Washer	-
29	T116461	8	Washer	SUB FOR 24M7280
30	AT277934	2	Guide	-
31	AT314659	8	Shim	-
32	T189325	24	Washer	SUB FOR AT317729
33	T189258	2	Retainer	SUB FOR AT317726
34	LW10318049	1	Bracket Kit	-

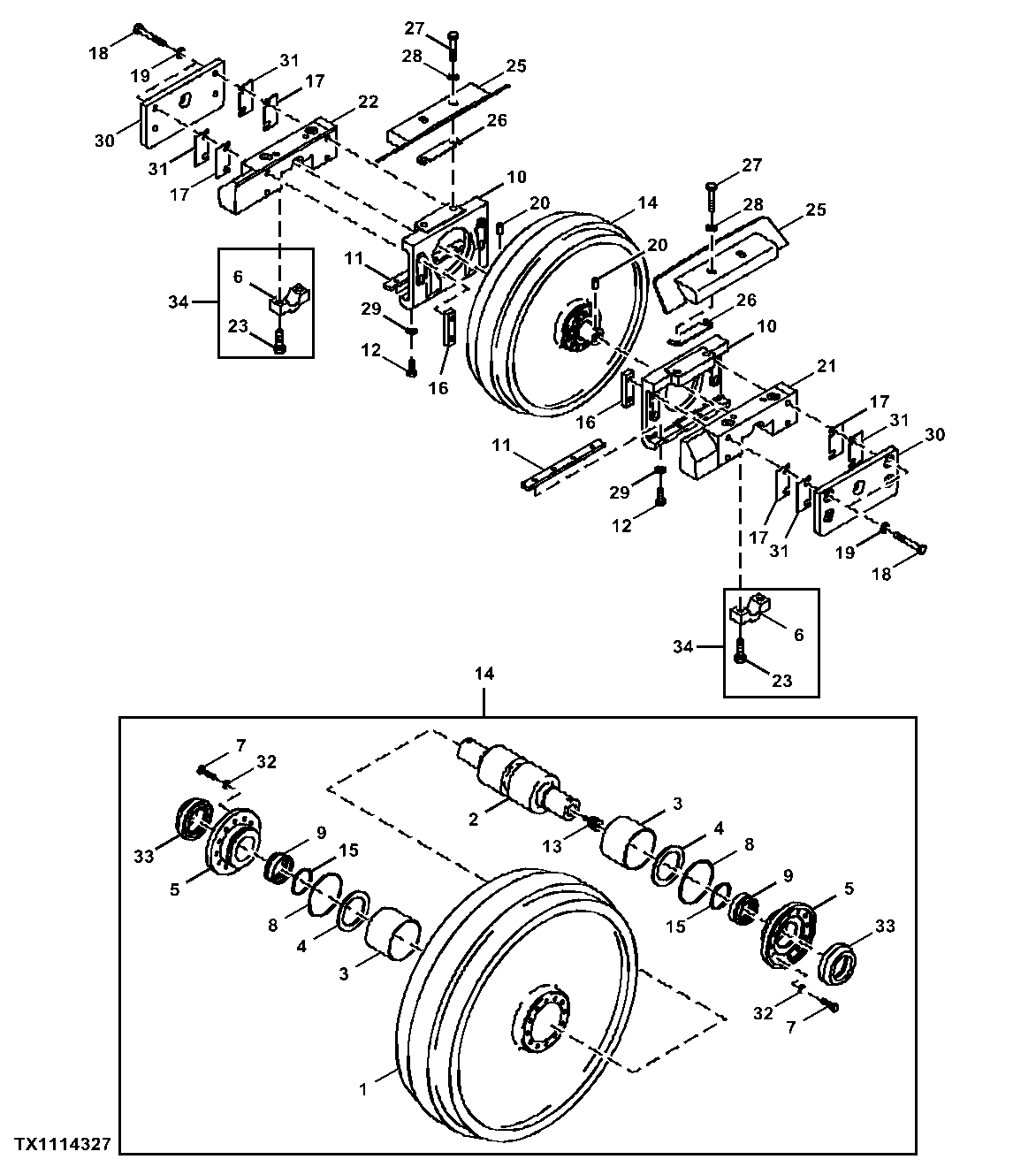

TRACK IDLER, IDLER SHAFT, BRACKETS AND GUIDES

Нет текстового описания
