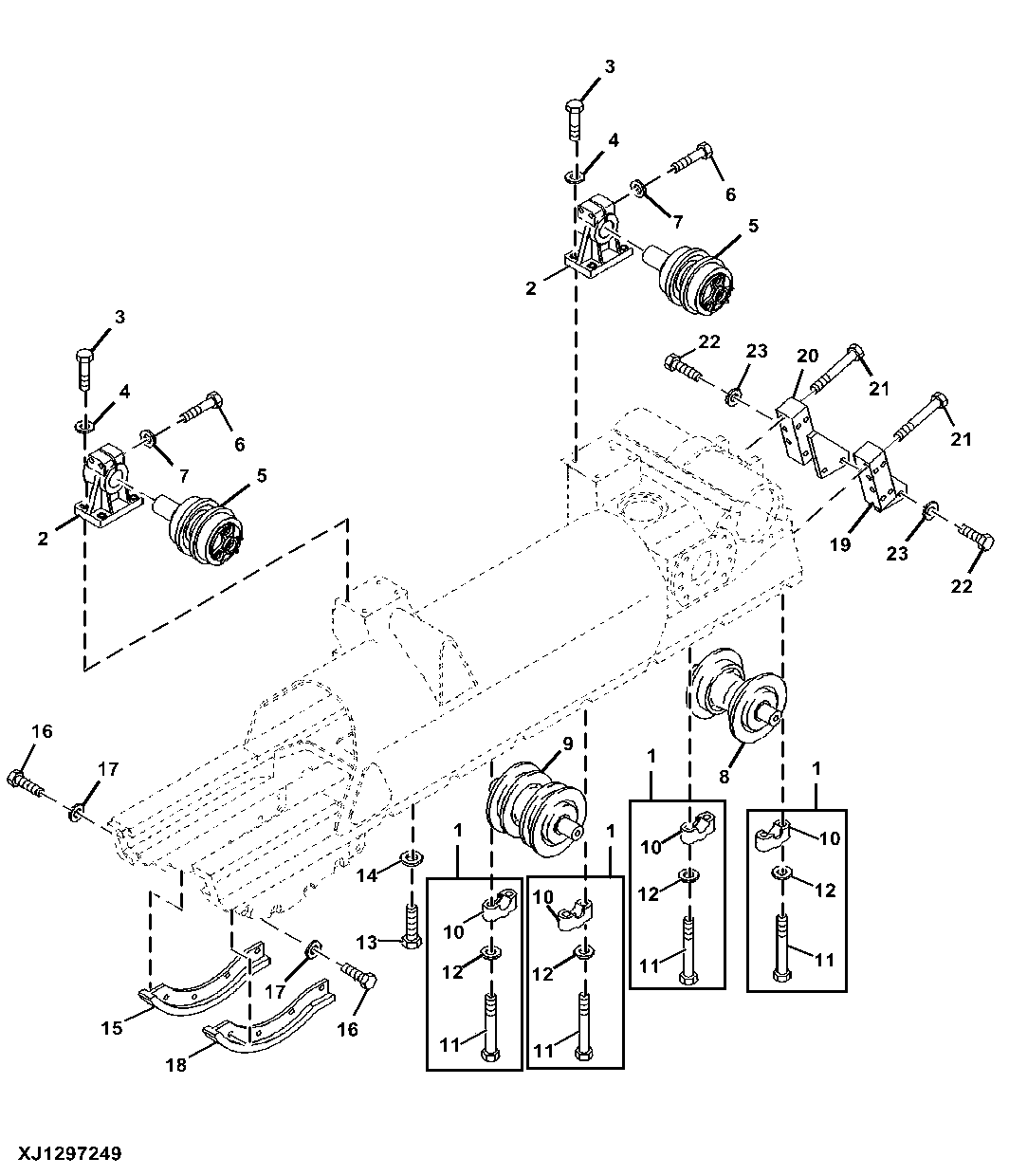

TRACK CHAIN CARRIER AND FLANGE ROLLERS COMPLETE, AND FRONT TRACK CHAIN GUIDES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW10318051	4	Bracket Kit	-
2	AT277948	2	Support	CARRIER ROLLER
3	AT264636	8	Cap Screw	-
4	24M7396	8	Washer	21 X 34 X 3 mm
5	LW10036895	2	Carrier Roller	CARRIER, COMPONENTS ON ANOTHER PAGE, SUB FOR AT276958
6	19M8147	4	Cap Screw	M20 X 90
7	24M7396	4	Washer	21 X 34 X 3 mm
8	-	4	Part 8	TRACK; SINGLE FLANGE, SUB LW10036887; SUB FOR AT276939; COMPONENTS ON ANOTHER PAGE
8	LW10036887	4	Roller	TRACK; SINGLE FLANGE, COMPONENTS ON ANOTHER PAGE, SUB FOR AT302636
9	-	3	Part 10	TRACK; DOUBLE FLANGE, SUB LW10036894; SUB FOR AT276940; COMPONENTS ON ANOTHER PAGE
9	LW10036894	3	Roller	TRACK; DOUBLE FLANGE, COMPONENTS ON ANOTHER PAGE, SUB FOR AT302637
10	LW11066055	14	Retainer	SUB FOR LW10315825 AND AT276941
11	LW4900063	28	Bolt	SUB FOR 19M7936
12	24M7559	28	Washer	25 X 44 X 4 mm, SUB FOR AT275997
13	19M8022	12	Cap Screw	M24 X 70
14	24M7351	12	Washer	25 X 44 X 4 mm
15	AT277914	1	Guide	RIGHT; FRONT TRACK CHAIN
16	19M8224	8	Cap Screw	M20 X 60
17	24M7396	8	Washer	21 X 34 X 3 mm
18	AT277913	1	Guide	LEFT; FRONT TRACK CHAIN
19	AT311441	1	Bracket	SUB FOR AT278002
20	AT311442	1	Bracket	SUB FOR AT278003
21	19M7969	6	Cap Screw	M20 X 110
22	19M8424	4	Cap Screw	M20 X 25
23	24M7051	4	Washer	21 X 37 X 3 mm, SUB FOR AT274140
