Открытый узел

TRACK CHAIN AND TRACK SHOES

TRACK CHAIN AND TRACK SHOES

TRACK CHAIN AND TRACK SHOES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

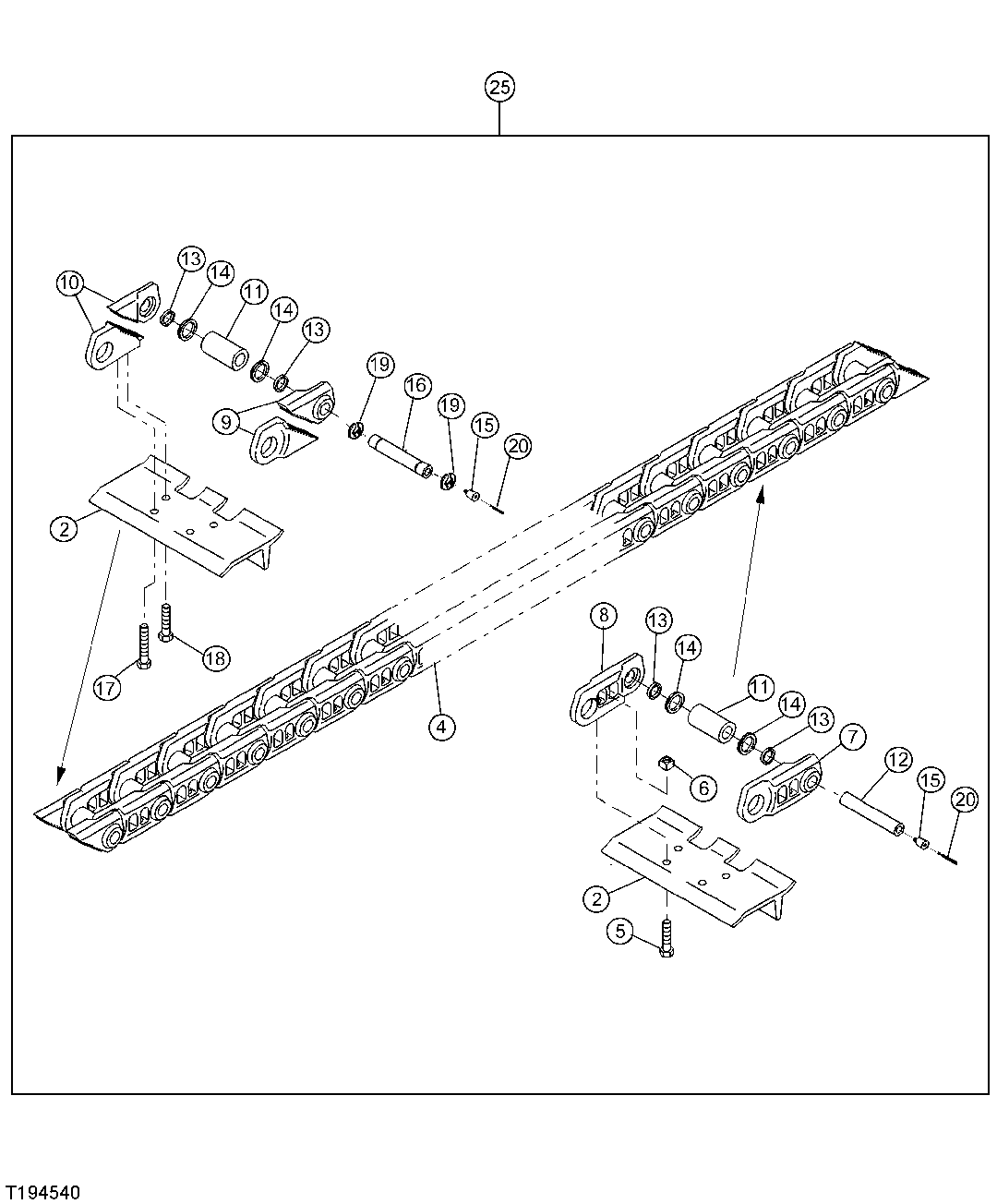

TRACK CHAIN AND TRACK SHOES

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	AT263489	44	Single Bar Shoe	610 MM SINGLE BAR (24INCH)
2	AT276951	44	Single Bar Shoe	(560MM SINGLE BAR) (22 INCH)
2	AT301563	44	Single Bar Shoe	711 MM SINGLE BAR (28 INCH) (OPEN CENTER SHOE)
2	AT305556	44	Single Bar Shoe	660 MM SINGLE BAR (26 INCH) (OPEN CENTER SHOE)
2	AT301562	44	Single Bar Shoe	610 MM SINGLE BAR (24 INCH) (OPEN CENTER SHOE)
2	AT263488	44	Single Bar Shoe	711 MM SINGLE BAR (28 INCH)
2	AT305555	44	Single Bar Shoe	660 MM SINGLE BAR (26INCH)
2	AT301560	44	Single Bar Shoe	560 MM SINGLE BAR (OPEN CENTER SHOE) (22 INCH)
4	LW10114096	1	Track Chain W/O Shoes	SUB FOR AT276952
5	T360973	172	Master Track Bolt	SUB FOR AT277400
6	AT277401	172	Nut	-
7	AT277402	43	Track Link	LEFT
8	AT277403	43	Track Link	RIGHT
9	AT277404	1	Track Link	LEFT SPLIT MASTER
10	AT277405	1	Track Link	RIGHT SPLIT MASTER
11	AT277406	44	Bushing	-
12	AT277407	43	Pin Fastener	-
13	AT277409	88	Back-Up Ring	-
14	-	88	Part 19	(SUB FOR AT317722)(AT277611 NLA)
14	AT317722	88	Seal	-
15	F434249	44	Plug	(SUB FOR AT277174)(RUBBER STOPPER)
16	T189183	1	Master Track Pin	(SUB FOR AT277411)(MASTER)
17	AT277410	2	Master Track Bolt	(LONG MASTER BOLT)
18	AT277540	2	Master Track Bolt	(SHORT MASTER BOLT)
19	AT277408	2	Locking Collar	(SUB FOR AT317723)
20	T149248	44	Plug	-
25	AT316628	1	Track Assembly With Shoes	(SUB FOR AT263486)(WITH 28 INCH SHOES)
25	AT316632	1	Track Assembly With Shoes	(WITH 28 INCH OPEN CENTER SHOES)
25	AT316632	1	Track Assembly With Shoes	(SUB FOR AT305186)(WITH 28 INCH OPEN CENTER SHOES)
25	AT316631	1	Track Assembly With Shoes	(WITH 26 INCH OPEN CENTER SHOES)
25	AT305566	1	Track Assembly With Shoes	(WITH 26 INCH OPEN CENTER SHOES)
25	AT305566	1	Track Assembly With Shoes	(WITH 24 INCH OPEN CENTER SHOES) (AT316629 NLA)
25	AT316629	1	Track Assembly With Shoes	(SUB FOR AT305185)(WITH 24 INCH OPEN CENTER SHOES)
25	AT316630	1	Track Assembly With Shoes	(WITH 22 INCH OPEN CENTER SHOES)
25	AT316630	1	Track Assembly With Shoes	(SUB FOR AT305184)(WITH 22 INCH OPEN CENTER SHOES)
25	AT316628	1	Track Assembly With Shoes	(WITH 28 INCH SHOES)
25	AT316633	1	Track Assembly With Shoes	(WITH 26 INCH SHOES)
25	AT316632	1	Track Assembly With Shoes	(SUB FOR AT305565)(WITH 26 INCH SHOES)
25	AT316626	1	Track Assembly With Shoes	(WITH 24 INCH SHOES)
25	AT316626	1	Track Assembly With Shoes	(SUB FOR AT263487)(WITH 24 INCH SHOES)
25	AT316627	1	Track Assembly With Shoes	(WITH 22 INCH SHOES)
25	AT316627	1	Track Assembly With Shoes	(SUB FOR AT276950)(WITH 22 INCH SHOES)
26	AT338488	1	Pin & Bushing Kit	-
