Test Port And Scraper Control Hoses (Scraper Puller)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
50	PMH3831	1	Fitting	-
50	PMH3077	8	Fitting	SUB FOR AT277073
55	AT312472	1	Hydraulic Hose	Fabricate, ALSO ORDER T59014)
55	T59014	2	O-Ring	-
56	AT312472	1	Hydraulic Hose	Fabricate, ALSO ORDER T59014
57	LW10286359	12	Flange Fitting	SUB FOR AT274302, THIS APPLICATION
58	LW10490784	6	O-Ring	SUB FOR LW10290520 AND AT274678
59	19M7550	24	Cap Screw	M10 X 35
60	AT312473	1	Hydraulic Hose	Fabricate, ALSO ORDER T59014
60	T59014	2	O-Ring	-
61	AT312473	1	Hydraulic Hose	Fabricate, ALSO ORDER T59014
62	T59014	2	O-Ring	-
62	AT312474	1	Hydraulic Hose	Fabricate, ALSO ORDER T59014
63	AT312474	1	Hydraulic Hose	Fabricate, ALSO ORDER T59014
64	AT316590	1	Strap	SCRAPER PULLER
70	LW10300469	1	Hydraulic Hose	Fabricate, SUB FOR AT277455ND TEST POINT
70	51M7106	2	O-Ring	7.500 X 1.500 mm
71	LW10331840	1	Hydraulic Hose	Fabricate, SUB FOR AT277456LS TEST POINT
71	51M7106	2	O-Ring	7.500 X 1.500 mm
72	LW10331838	1	Hydraulic Hose	Fabricate, SUB FOR AT276317HD TEST POINT
72	51M7106	2	O-Ring	7.500 X 1.500 mm
73	AT274682	3	Coupling	SUB FOR AT276215, THIS APPLICATION
74	LW7413727	1	Clip	-
95	R44302	1	Tie Band	SUB FOR AT314698
96	AT315950	1	Support	CONVERSION WELD PLATE

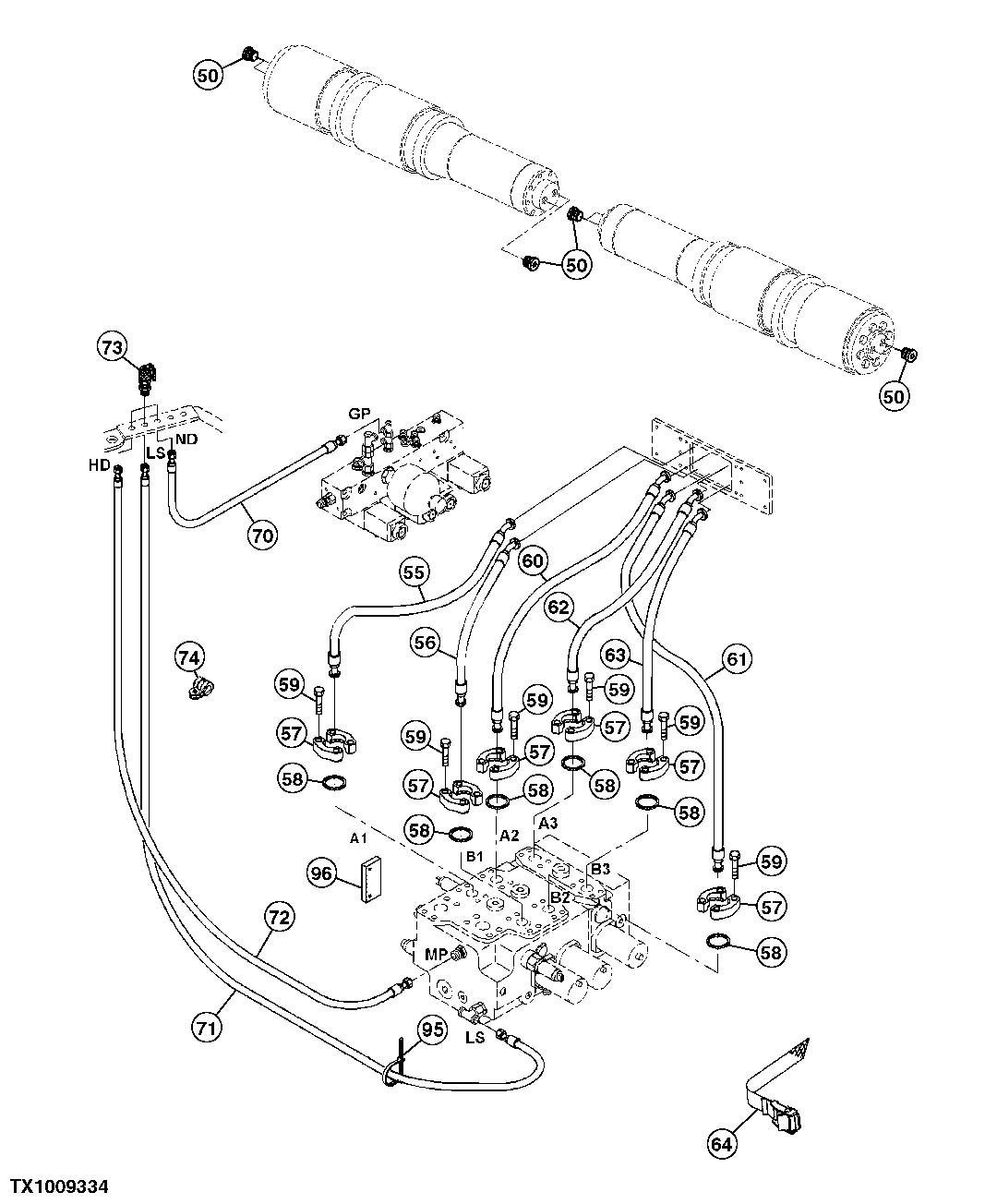

Test Port And Scraper Control Hoses (Scraper Puller)

Нет текстового описания
