Открытый узел

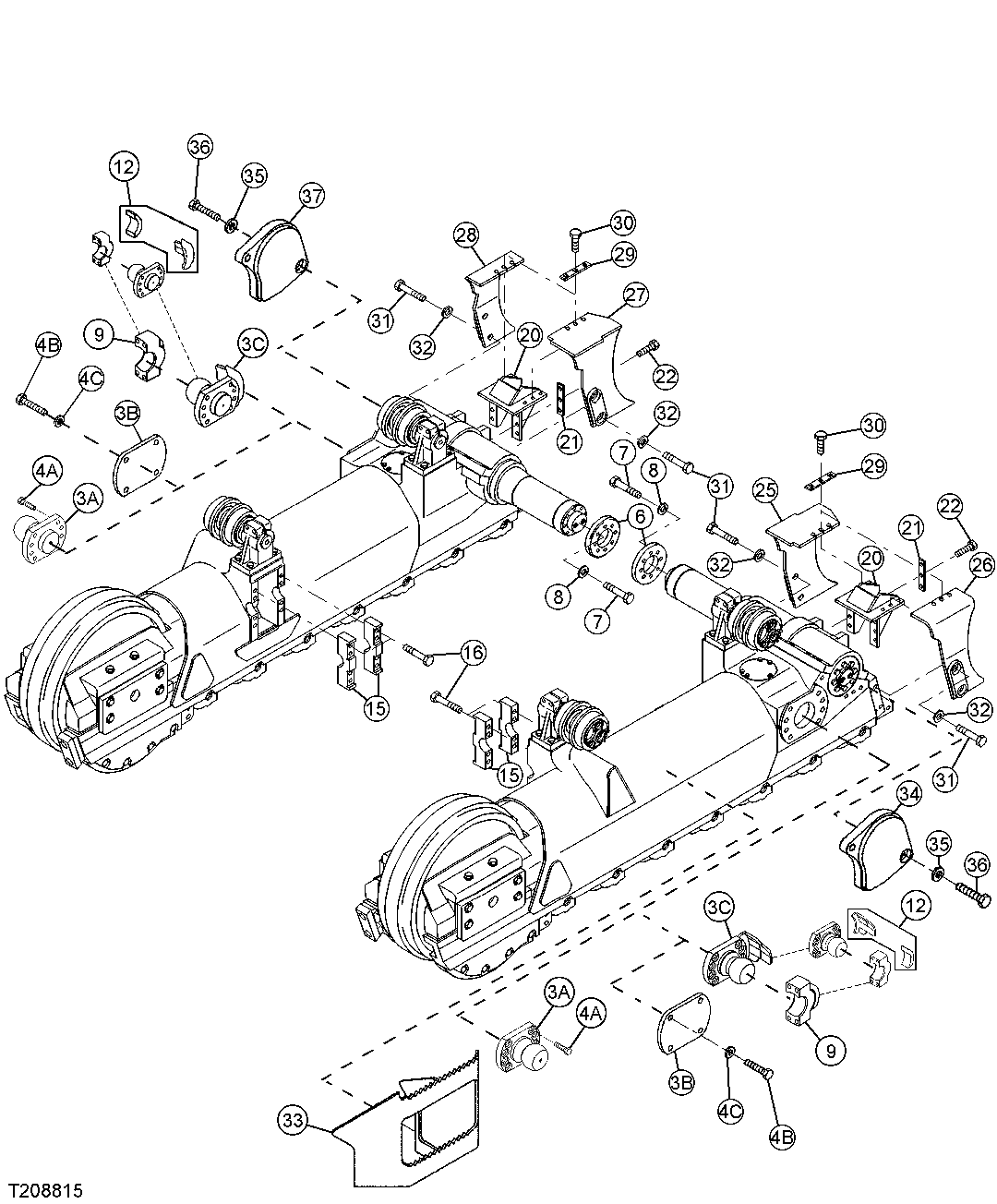

SPROCKET GUARD, PUSHBEAM TRUNNION, SCRAPER PULLER STEPS AND COVERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
6	AT277947	2	Plate	-
7	19M8020	16	Cap Screw	M16 X 100
8	T116461	16	Washer	(SUB FOR 24M7280)
9	AT320973	1	Cap	(WASTE HANDLER ONLY)
12	-	1	Part 14	( AT320979 NLA) WHOLE GOODS (WELD ON PROTECTION KIT) (FOR USE WITH TILT CYLINDER)
12	-	1	Part 15	( AT320980 NLA) WHOLE GOODS (WELD ON PROTECTION KIT) (FOR USE WITH PITCH ANGLE CYLINDER)
15	AT277950	4	Cap	(FRONT CROSSBAR SHAFT)
16	19M7963	16	Cap Screw	M20 X 100
20	AT278004	2	Guard	-
21	AT278007	4	Plate	-
22	19M7409	12	Cap Screw	M16 X 50
25	AT278175	1	Guard	(LEFT INSIDE SPROCKET GUARD)
26	AT278005	1	Guard	(LEFT OUTSIDE SPROCKET GUARD)
27	AT278176	1	Guard	(RIGHT INSIDE SPROCKET GUARD)
28	AT278006	1	Guard	(RIGHT OUTSIDE SPROCKET GUARD)
29	AT278007	4	Plate	-
30	19M7488	12	Cap Screw	M16 X 40
31	19M8147	8	Cap Screw	M20 X 90
32	R113500	8	Washer	-
33	AT311691	2	Step	(SCRAPER PULLER UNIT ONLY)
34	AT278211	1	Cover	(SCRAPER PULLER UNIT ONLY)
35	24M7559	4	Washer	25 X 44 X 4 mm, Scraper Puller Unit Only, (SUB FOR AT275997)
36	19M8346	4	Cap Screw	M24 X 70, (SCRAPER PULLER UNIT ONLY)
37	AT316589	1	Cover	(SCRAPER PULLER)
3A	LW9417417	1	Trunnion	(SUB FOR AT320975)
3A	LW9417414	1	Trunnion	(SUB FOR AT320968)
3A	AT277985	2	Trunnion	(CONNECTION BALL)(PUSHBEAM) (DOZER UNIT ONLY)
3B	AT311690	2	Cover	(SCRAPER PULLER UNIT ONLY)
3C	LW9417417	1	Trunnion	(SUB FOR AT320975)(WASTE HANDLER ONLY) (FOR USE WITH PITCH ANGLE CYLINDER)
3C	LW9417414	1	Trunnion	(SUB FOR AT320968)(WASTE HANDLER ONLY) (FOR USE WITH TILT CYLINDER)
4A	19M7888	16	Cap Screw	M24 X 60, (DOZER UNIT ONLY)
4B	19M7993	8	Cap Screw	M24 X 50, (SCRAPER PULLER UNIT ONLY)
4C	24M7559	8	Washer	25 X 44 X 4 mm, Scraper Puller Unit Only, (SUB FOR AT275997)

SPROCKET GUARD, PUSHBEAM TRUNNION, SCRAPER PULLER STEPS AND COVERS

Нет текстового описания
