Большое обновление пильных узлов

Смотреть

Открытый узел

Ripper Hydraulic Control Valve, Hoses, And Manifold

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT277992	1	Manifold	-
2	19M7493	32	Cap Screw	M12 X 40
3	LW10286360	16	Flange	SUB FOR AT218503, THIS APPLICATION
4	AT277868	8	Plug	-
5	LW10490781	8	O-Ring	SUB FOR LW10290519 AND AT218851
6	AT277994	1	Manifold	-
7	AT277993	1	Manifold	-
8	PMH3077	8	Fitting	SUB FOR AT277073
8	PMH3831	1	Fitting	-
9	PMH3080	2	Fitting	SUB FOR AT261789
9	PMH3829	1	Fitting	-
10	XGE12SMEDCF	2	Elec. Connector Accessory	SUB FOR AT218464
11	XM12SCFX	2	Fitting	SUB FOR AT276852
12	XVKA12CF	2	Fitting	SUB FOR AT274299 AND LW477700514
12	51M7107	1	O-Ring	9 X 1.500 mm
16	AT277616	1	Hydraulic Hose	-
16	T78313	2	O-Ring	-
17	AT277615	1	Hydraulic Hose	-
17	T78313	2	O-Ring	-
18	AT277618	1	Hydraulic Hose	Fabricate, ALSO ORDER T78313 AND T78314
18	T78313	2	O-Ring	-
18	T59014	2	O-Ring	-
19	AT277613	1	Hydraulic Hose	Fabricate, ALSO ORDER T78313 AND T78314
19	T78313	2	O-Ring	-
19	T59014	2	O-Ring	-
20	AT277202	1	Hydraulic Hose	Fabricate, ALSO ORDER T78313 AND T59014
20	T78313	2	O-Ring	-
20	T59014	2	O-Ring	-
21	T59014	2	O-Ring	-
21	AT277614	1	Hydraulic Hose	Fabricate, ALSO ORDER T78313 AND T78314
21	T78313	2	O-Ring	-
25	LW10490781	8	O-Ring	SUB FOR LW10290519 AND AT218851
26	LW10286360	16	Flange	SUB FOR AT218503, THIS APPLICATION
27	19M7493	16	Cap Screw	M12 X 40
28	19M9163	16	Screw	M12 X 40
30	LW10490784	4	O-Ring	SUB FOR LW10290520 AND AT274678
31	LW10286359	8	Flange Fitting	SUB FOR AT274302, THIS APPLICATION, HALF
32	19M7550	16	Cap Screw	M10 X 35
40	AT276961	2	Section	-
41	AT276830	4	Bolt	-
42	14M7274	4	Nut	M10
50	AT276204	4	Clip	HALF
51	AT311985	1	Plate	-
52	AT277161	1	Plate	-
53	AT277157	1	Bolt	-
54	19M7185	1	Cap Screw	M8 X 60
55	AT280133	2	Cover	-
56	19M7768	4	Screw	M6 X 16
57	AT265097	2	Screw	-
58	AT265289	1	Valve Spool	-
59	AT280143	1	Check Valve	-
60	AT266091	1	Piston	SUB FOR AT280144
61	AT265102	1	Plug	-
62	AT265091	2	Plug	INCLUDES AT300691
62	LW10332095	1	Gasket Kit	SUB FOR AT300691
63	AT265190	2	Compression Spring	-
64	AT280136	2	Plate	-
65	LW7369482	2	Fitting Plug	SUB FOR AT280137
66	AT263581	1	O-Ring Kit	-
67	AT196491	1	O-Ring Kit	-

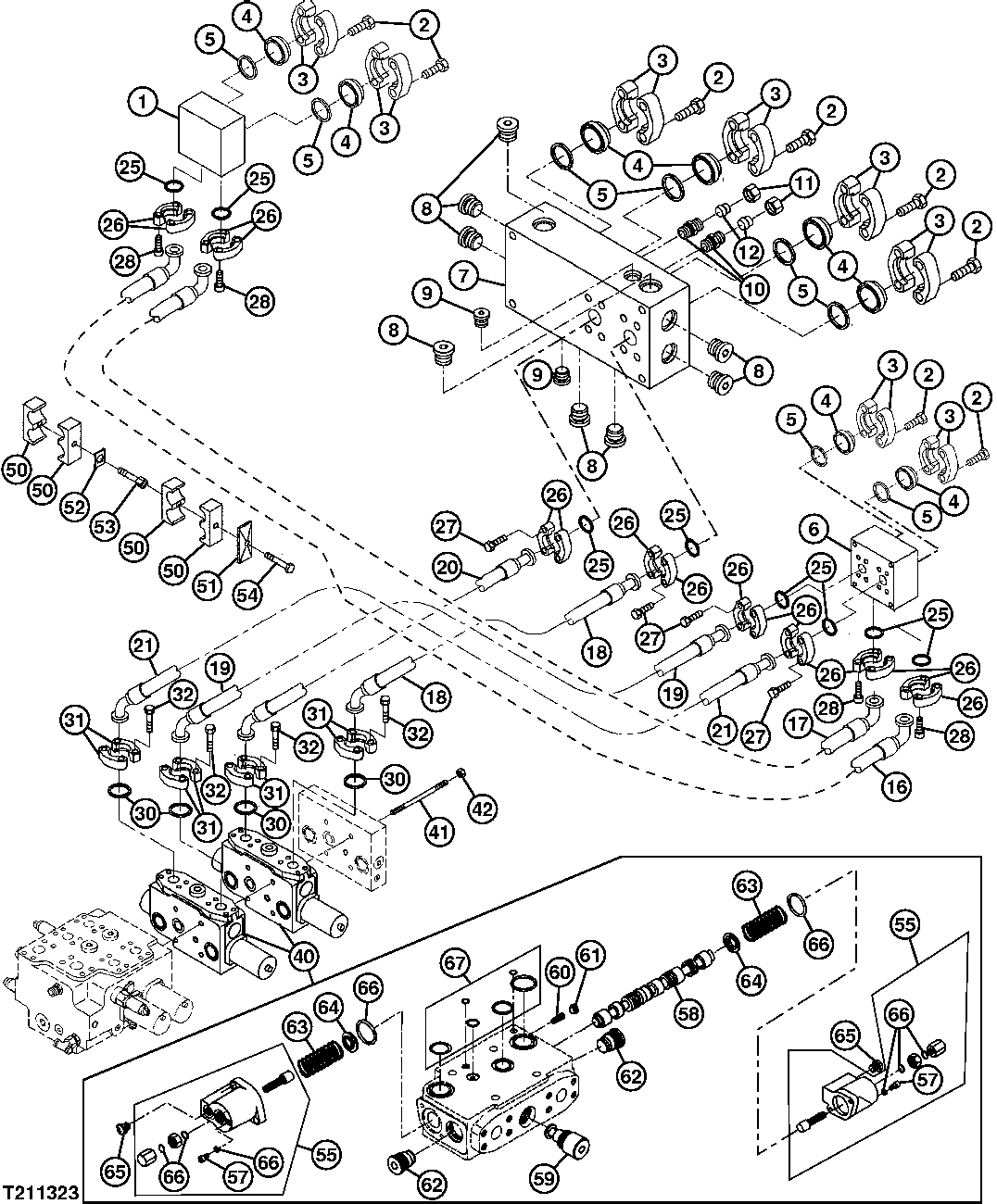

Ripper Hydraulic Control Valve, Hoses, And Manifold

Нет текстового описания
