Right Push Beam Hoses And Covers (Angle Blade)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW10490785	1	O-Ring	SUB FOR LW10290521 AND AT277951
2	24M7559	6	Washer	25 X 44 X 4 mm, SUB FOR AT275997
3	AT276808	6	Screw	-
4	AT277952	1	Cover	-
5	24M7559	4	Washer	25 X 44 X 4 mm, SUB FOR AT275997
6	AT276808	1	Screw	-
7	19M7893	3	Cap Screw	M24 X 160
8	XGE20SMEDCF	2	Fitting	SUB FOR AT218490
9	AT277383	1	Hydraulic Hose	Fabricate, ALSO ORDER R69667 AND 51M7110
9	R69667	2	O-Ring	-
9	51M7110	2	O-Ring	16.300 X 2.400 mm
10	AT277384	1	Hydraulic Hose	Fabricate, ALSO ORDER R69667 AND 51M7110
10	51M7110	2	O-Ring	16.300 X 2.400 mm
10	R69667	2	O-Ring	-
11	AT277047	2	O-Ring	-
12	LW10286357	4	Flange	SUB FOR AT264728
13	19M7407	8	Cap Screw	M8 X 25
25	XGE20SMEDCF	1	Fitting	SUB FOR AT218490
26	AT266542	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
26	51M7110	2	O-Ring	16.300 X 2.400 mm
27	XGE20SMEDCF	2	Fitting	SUB FOR AT218490
28	51M7110	1	O-Ring	16.300 X 2.400 mm
28	AT250298	1	Spacer	SUBFOR AT250298
29	XM20SCFX	1	Fitting	SUB FOR AT250299
30	XGE20SMEDCF	1	Fitting	SUB FOR AT218490
31	AT266541	1	Hydraulic Hose	Fabricate, (INCLUDES (2) 51M7110)
31	51M7110	2	O-Ring	16.300 X 2.400 mm
32	XGE20SMEDCF	2	Fitting	SUB FOR AT218490
33	AT250298	1	Spacer	SUBFOR AT250298
33	51M7110	1	O-Ring	16.300 X 2.400 mm
34	XM20SCFX	1	Fitting	SUB FOR AT250299 AND AT250299
35	R44302	3	Tie Band	-
40	AT196675	1	Cover	-
41	24M7559	2	Washer	25 X 44 X 4 mm, SUB FOR AT275997
42	19M7888	2	Cap Screw	M24 X 60
43	AT315991	1	Step	-
50	AT196676	1	Cover	-
51	24M7559	3	Washer	25 X 44 X 4 mm, SUB FOR AT275997
52	19M7888	3	Cap Screw	M24 X 60
53	AT265451	1	Trunnion	SUB FOR AT300699

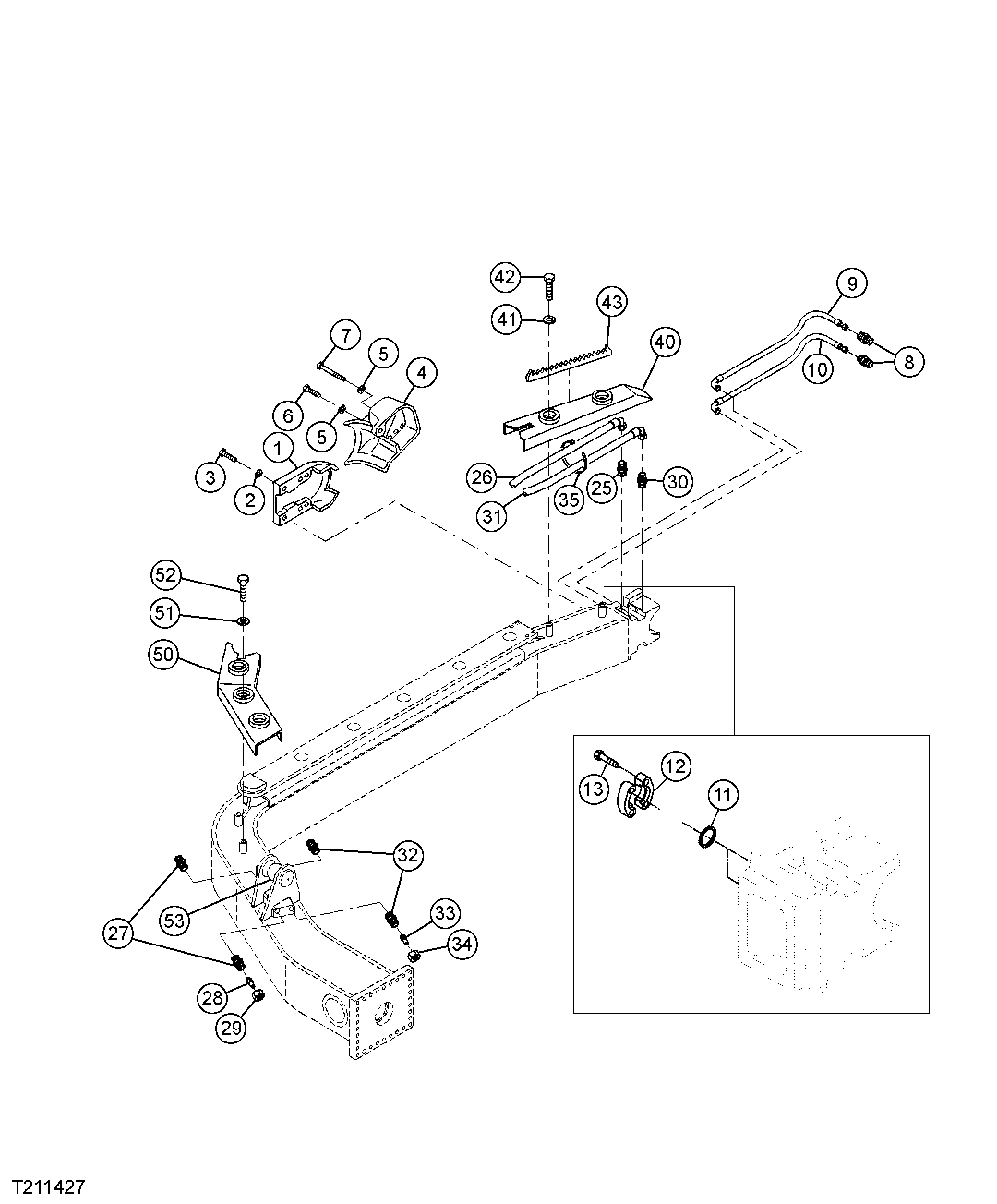

Right Push Beam Hoses And Covers (Angle Blade)

Нет текстового описания
