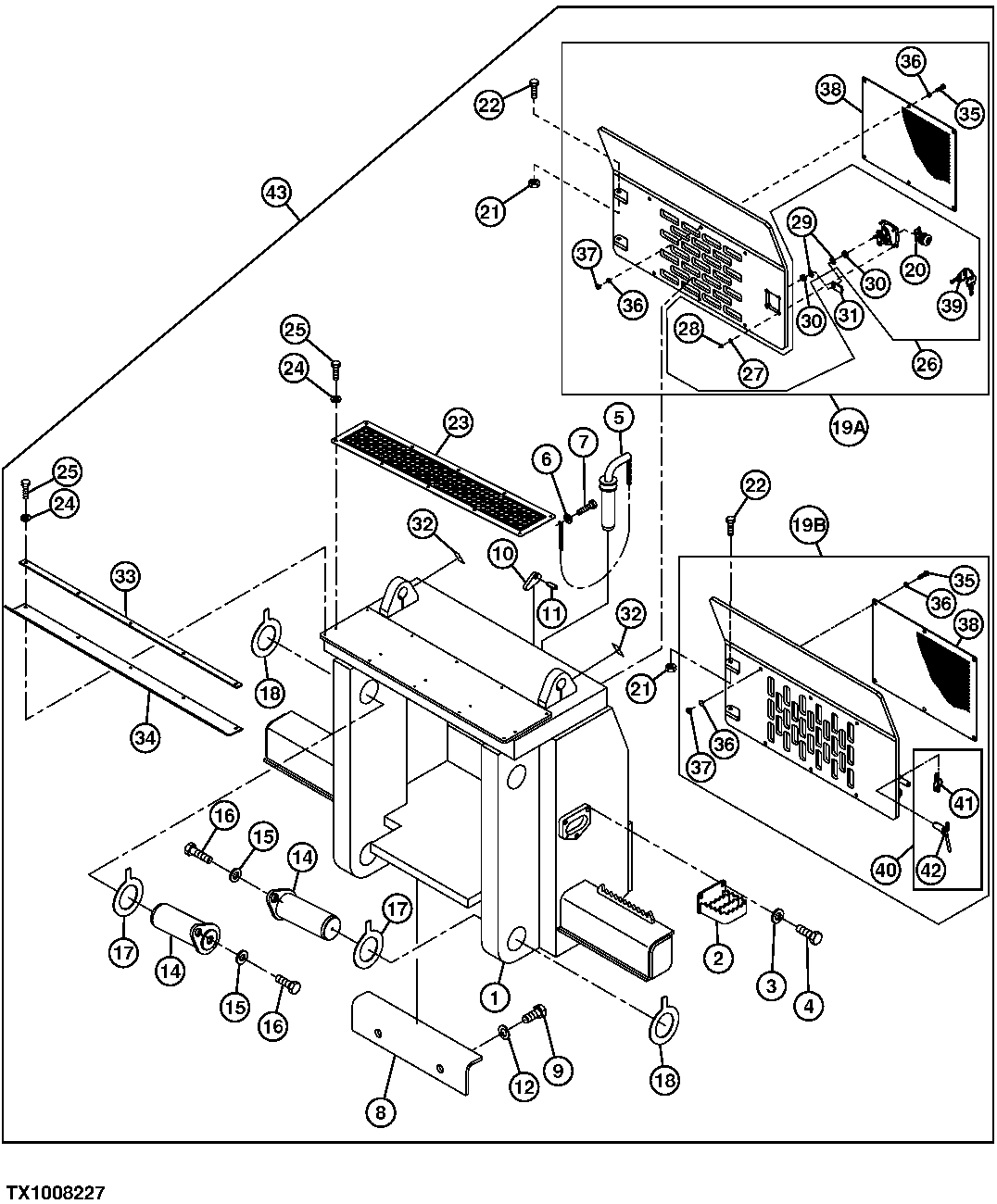

REAR COUNTERWEIGHT AND STORAGE AREA (WASTE HANDLER PACKAGE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT312097	1	Counterweight	-
2	AT303029	1	Step	-
3	24M7051	3	Washer	21 X 37 X 3 mm, SUB FOR AT274140
4	19M8174	3	Cap Screw	M20 X 35
5	AT277653	1	Pin Fastener	-
6	24M7250	1	Washer	6.400 X 17 X 3 mm
7	19M7077	1	Cap Screw	M6 X 20
8	AT317644	1	Cover	-
9	AT316720	2	Bolt	-
10	AT219286	1	Retainer	-
11	AT276771	1	Spring Pin	-
12	24M7202	2	Washer	31 X 56 X 4 mm
14	AT278752	4	Pin	-
15	24H1380	4	Washer	11/16" X 1-3/4" X 0.194"
16	AT264638	4	Cap Screw	-
17	AT278750	2	Spacer	-
18	AT278751	2	Spacer	-
20	AT322768	1	Lock	-
21	14M7328	2	Lock Nut	M16
22	AT276775	2	Screw	-
23	AT312099	1	Anti-Skid Pad	-
24	24M7055	10	Washer	8.400 X 16 X 1.600 mm, (SUB FOR AT274273)
25	19M7881	10	Screw	M8 X 20
26	LW9412956	1	Latch Kit	(SUB FOR AT302902)
26	AT322845	1	Latch	-
27	24M7088	4	Washer	6.600 X 12 X 1.600 mm
28	14M7272	4	Nut	M6
29	24M7028	2	Washer	10.500 X 20 X 2 mm
29	24M7240	2	Washer	13 X 25 X 3 mm
30	AT265056	2	Nut	-
30	14M7275	2	Nut	M12
31	AT322846	1	Lever	(SUB FOR AT316056)
31	AT322846	1	Lever	-
32	AT316729	2	Label	(SUB FOR AT224543, THIS APPLICATION)
33	AT316730	1	Strip	-
34	AT316731	1	Seal	-
35	19M7493	12	Cap Screw	M12 X 40
36	T21242	6	Washer	(SUB FOR 24M7240)
37	14M7275	1	Nut	M12
38	AT278141	1	Cover	-
39	AT274672	1	Key	-
40	LW9798828	1	Pin Fastener	-
41	AT261731	1	Quick Lock Pin	-
42	LW4600946	1	Pin Fastener	-
43	-	1	Part 47	( AT316858 NLA) (COUNTERWEIGHT WITH STORAGE COMPARTMENT) (WHOLE GOODS)
19A	AT312098	1	Door	-
19B	LW9406042	1	Cover	-

REAR COUNTERWEIGHT AND STORAGE AREA (WASTE HANDLER PACKAGE)
