Quick Drop Valve Hoses And Test Port Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
13	XGE20SMEDCF	2	Fitting	SUB FOR AT277073
14	XEW20SCF	2	Fitting	SUB FOR AT186703
14	51M7110	1	O-Ring	16.300 X 2.400 mm
15	PMH3077	6	Fitting	SUB FOR AT277073
15	PMH3831	1	Fitting	-
55	AT277428	1	Hydraulic Hose	Fabricate, ALSO ORDER T78313 AND T59014
55	T78313	2	O-Ring	-
55	T59014	2	O-Ring	-
56	AT277428	1	Hydraulic Hose	Fabricate, ALSO ORDER T78313 AND T59014
57	LW10286359	8	Flange Fitting	SUB FOR AT274302, THIS APPLICATION
58	LW10490784	4	O-Ring	SUB FOR LW10290520 AND AT274678
59	19M7550	16	Cap Screw	M10 X 35
60	LW10286360	4	Flange	SUB FOR AT218503, THIS APPLICATION
61	LW10490781	2	O-Ring	SUB FOR LW10290519 AND AT218851
62	19M7493	8	Cap Screw	M12 X 40
63	AT277048	1	Hydraulic Hose	Fabricate, ALSO ORDER 51M7110 AND T59014
63	51M7110	2	O-Ring	16.300 X 2.400 mm
64	AT277429	1	Hydraulic Hose	Fabricate
64	51M7110	2	O-Ring	16.300 X 2.400 mm
64	T59014	2	O-Ring	-
70	LW10300469	1	Hydraulic Hose	Fabricate, ALSO ORDER AT274682 SUB FOR AT277455TEST HOSE FOR MAIN HYDRAULIC SYSTEMND TEST POINT
70	51M7106	2	O-Ring	7.500 X 1.500 mm
71	LW10331840	1	Hydraulic Hose	Fabricate, SUB FOR AT277456TEST HOSE FOR MAIN HYDRAULIC SYSTEMLS TEST POINT
71	51M7106	2	O-Ring	7.500 X 1.500 mm
72	LW10331838	1	Hydraulic Hose	Fabricate, ALSO ORDER AT274682 SUB FOR AT276317TEST HOSE FOR MAIN HYDRAULIC SYSTEM HD TEST POINT
72	51M7106	2	O-Ring	7.500 X 1.500 mm
73	AT274682	3	Coupling	SUB FOR AT276215, THIS APPLICATION
74	LW7413727	1	Clip	-
80	AT278206	1	Clamp	-
95	R44302	1	Tie Band	SUB FOR AT274490 AND AT314698

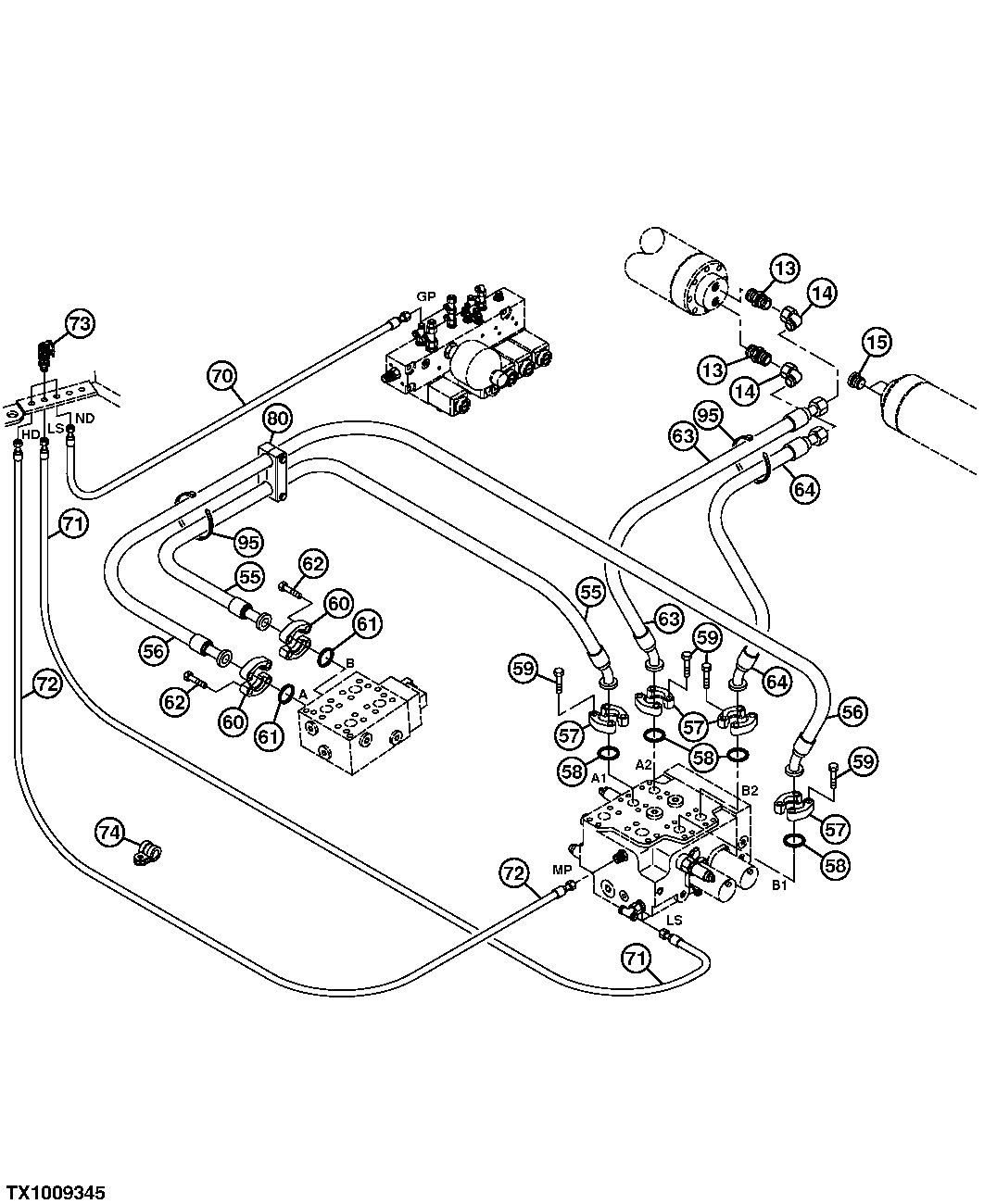

Quick Drop Valve Hoses And Test Port Hoses
