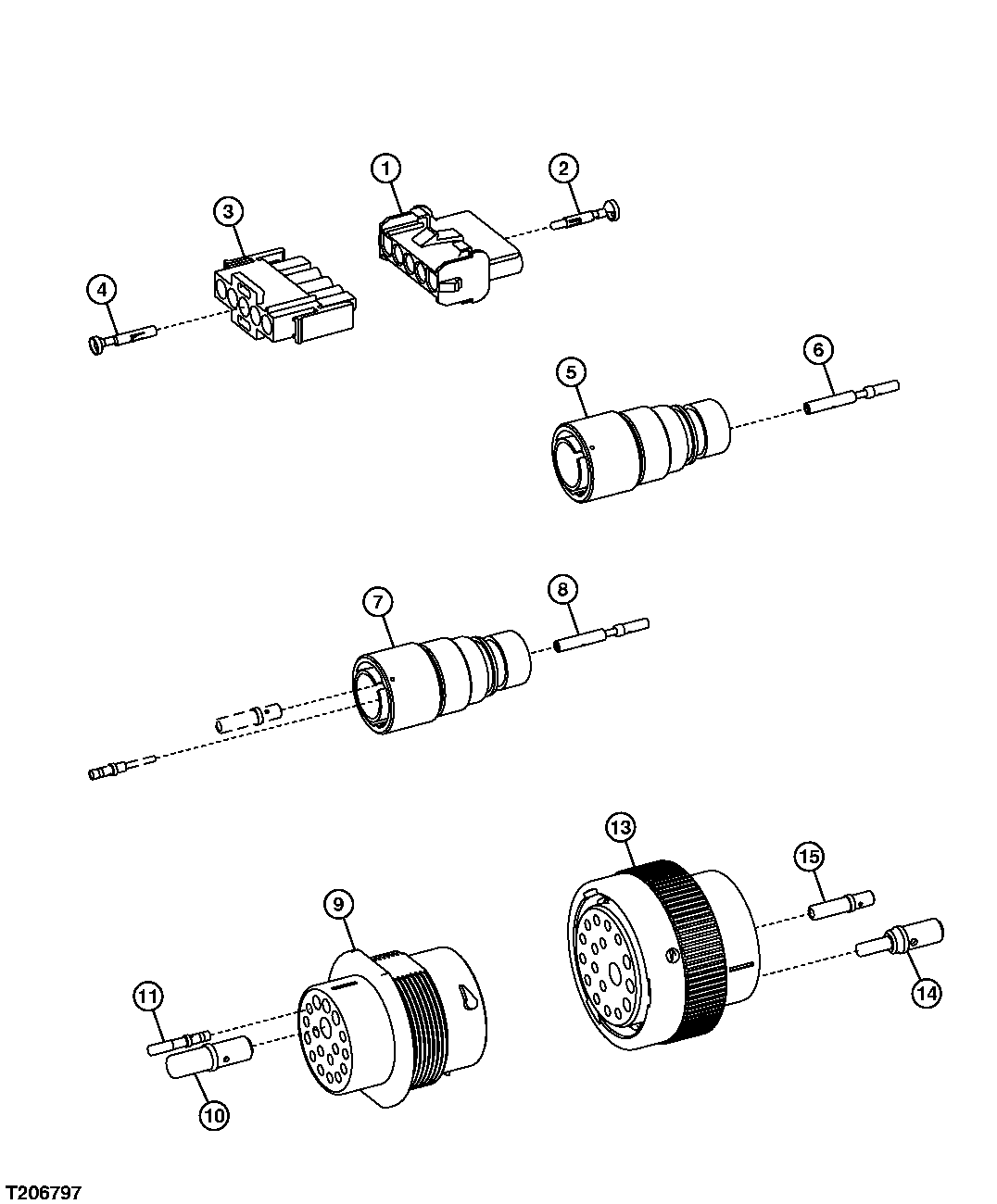

PILOT CONTROLLER, PROPORTIONAL SOLENOID, DIESEL MOTOR AND TANK ELECTRICAL CONNECTORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8663	1	Elec. Connector Housing	AMP MATENLOK 5 WAY RCPT HOUSING, PILOT CONTROLLER
2	57M9018	1	Elec. Connector Terminal	AMP .250 CENTERLINE MATE-N-LOK PIN
3	57M8664	1	Elec. Connector Housing	AMP MATENLOK 5 WAY PLUG HOUSING, PILOT CONTROLLER
4	L36668	1	Electrical Conductor	-
5	LW6002985	1	Electrical Connector Assy	TYCO JRPT45 3 WAY FEM. CONNECTOR, PROPORTIONAL SOLENOID, SUB FOR 57M8620
6	57M8694	1	Elec. Connector Terminal	CANON 1.5 MM2 FEMALE CONTACT
7	57M8698	1	Elec. Connector Housing	CANON CACOM 3 WAY CONN SOC CONTACTS, DIESEL TANK
8	57M8694	1	Elec. Connector Terminal	CANON 1.5 MM2 FEMALE CONTACT
9	57M8677	1	Elec. Connector Housing	DEUTSCH HDP PLUG, 18 WAY, SOC CONT, DIESEL MOTOR
10	57M7614	1	Elec. Connector Terminal	8 & 10 AWG, 8.0 - 5.0MM2
11	R78067	3	Elec. Connector Terminal	12 & 14 AWG, 3.0 - 2.0MM2
12	57M7542	14	Elec. Connector Terminal	14 AWG, 2.0MM2, NOT ILLUSTRATED
13	57M8676	1	Elec. Connector Housing	DEUTSCH HDP 18 WAY RCPT, PIN CONT, DIESEL TANK
14	57M7613	1	Elec. Connector Terminal	8 & 10 AWG, 8.0 - 5.0MM2
15	R78068	3	Elec. Connector Terminal	12 & 14 AWG, 3.0 - 2.0MM2
16	57M7541	14	Elec. Connector Terminal	14 AWG, 2.0MM2, NOT ILLUSTRATED

PILOT CONTROLLER, PROPORTIONAL SOLENOID, DIESEL MOTOR AND TANK ELECTRICAL CONNECTORS
