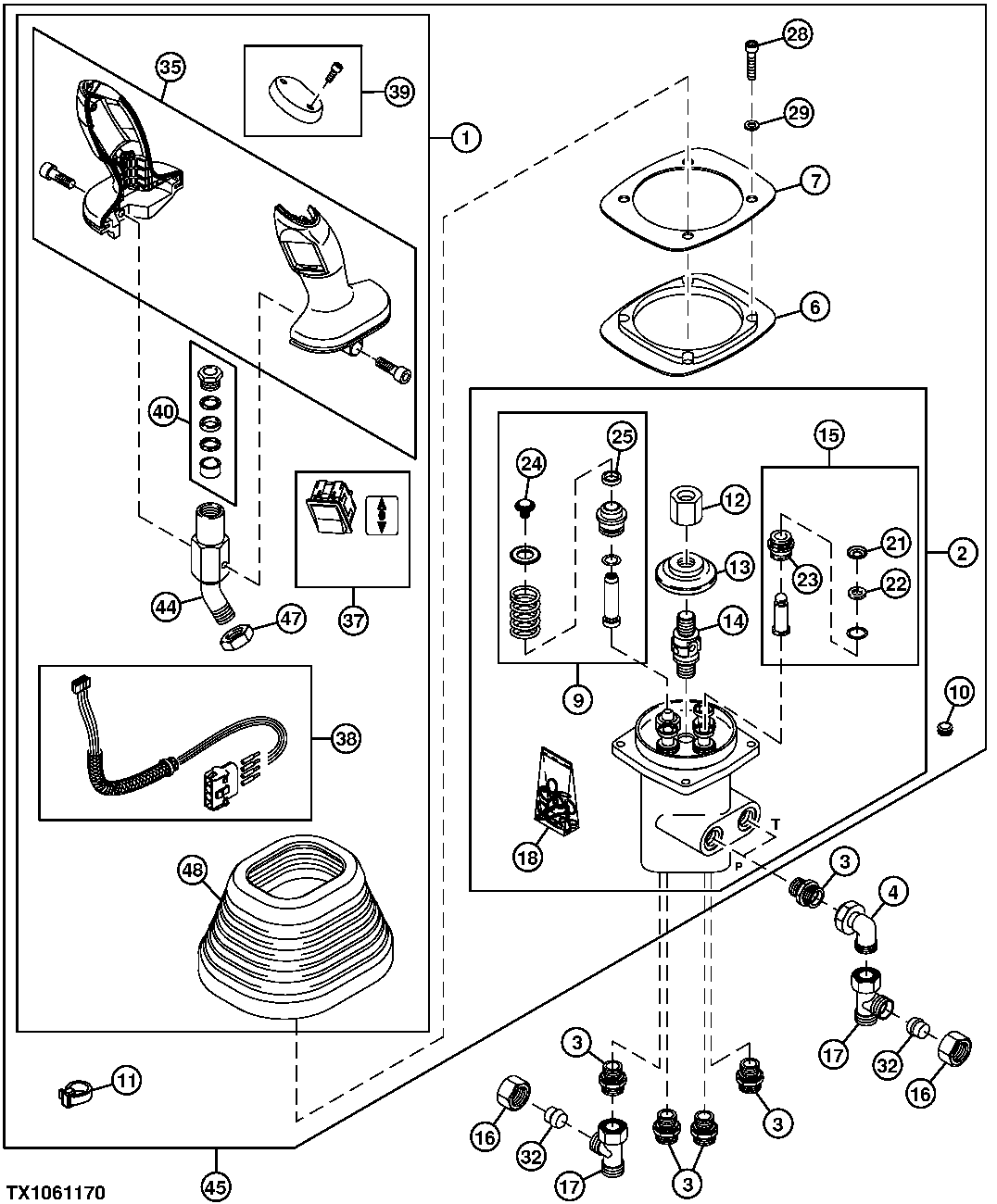

PILOT CONTROLLER AND FITTINGS (SCRAPER PULLER) (S.N. 008234-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW9611229	1	Multi-Functional Controller	-
2	AT313568	1	Hydr./Pilot Control Valve	-
3	XGE10LREDCF	6	Fitting	SUB FOR AT218837
4	XEW10LOMDCF	2	Adapter Fitting	SUB FOR AT218871
4	51M7106	1	O-Ring	7.500 X 1.500 mm
6	AT311710	1	Flange	-
7	AT311711	1	Plate	-
9	AT275411	1	Repair Kit	-
10	AT277077	1	Plug	(SUB FOR AT274973 AND AT276974)
11	R44302	1	Tie Band	-
12	AT275408	1	Nut	-
13	AT275368	1	Plate	-
14	AT275455	1	Universal Joint	-
15	AT302330	3	Repair Kit	-
16	XM10LCFX	3	Fitting	SUB FOR AT261739
17	XEL10LCF	3	Fitting	SUB FOR AT218872 AND LW247242302
17	51M7106	1	O-Ring	7.500 X 1.500 mm
18	AT275401	1	Gasket Kit	-
21	AT302332	1	Cap	-
22	AT279960	1	Gasket	-
23	AT279959	1	Bushing	-
24	AT275410	1	Bolt	-
25	AT279960	1	Gasket	-
28	19M8263	4	Screw	M6 X 30
29	LW10289802	4	Washer	(SUB FOR 24M7088, THIS APPLICATION)
32	XVKA10CF	3	Fitting	SUB FOR AT261740
32	51M7106	1	O-Ring	7.500 X 1.500 mm
35	LW10469932	1	Handle	(SUB FOR LW10014780, LW10014779 AND (2) AT218439)
37	LW9968568	1	Switch	-
38	LW9611234	1	Wiring Harness	-
39	LW10469926	1	Cap	(SUB FOR LW10014783)
40	LW10470189	1	Adapter Fitting	(SUB FOR LW10031929, LW10031930, (2) LW9932882 AND LW9932877)
44	LW9408868	1	Handlebar	-
45	LW9408485	1	Central Control Unit	-
47	LW4001927	1	Nut	-
48	LW10014790	1	Boot	(SUB FOR AT333535)

PILOT CONTROLLER AND FITTINGS (SCRAPER PULLER) (S.N. 008234-)
