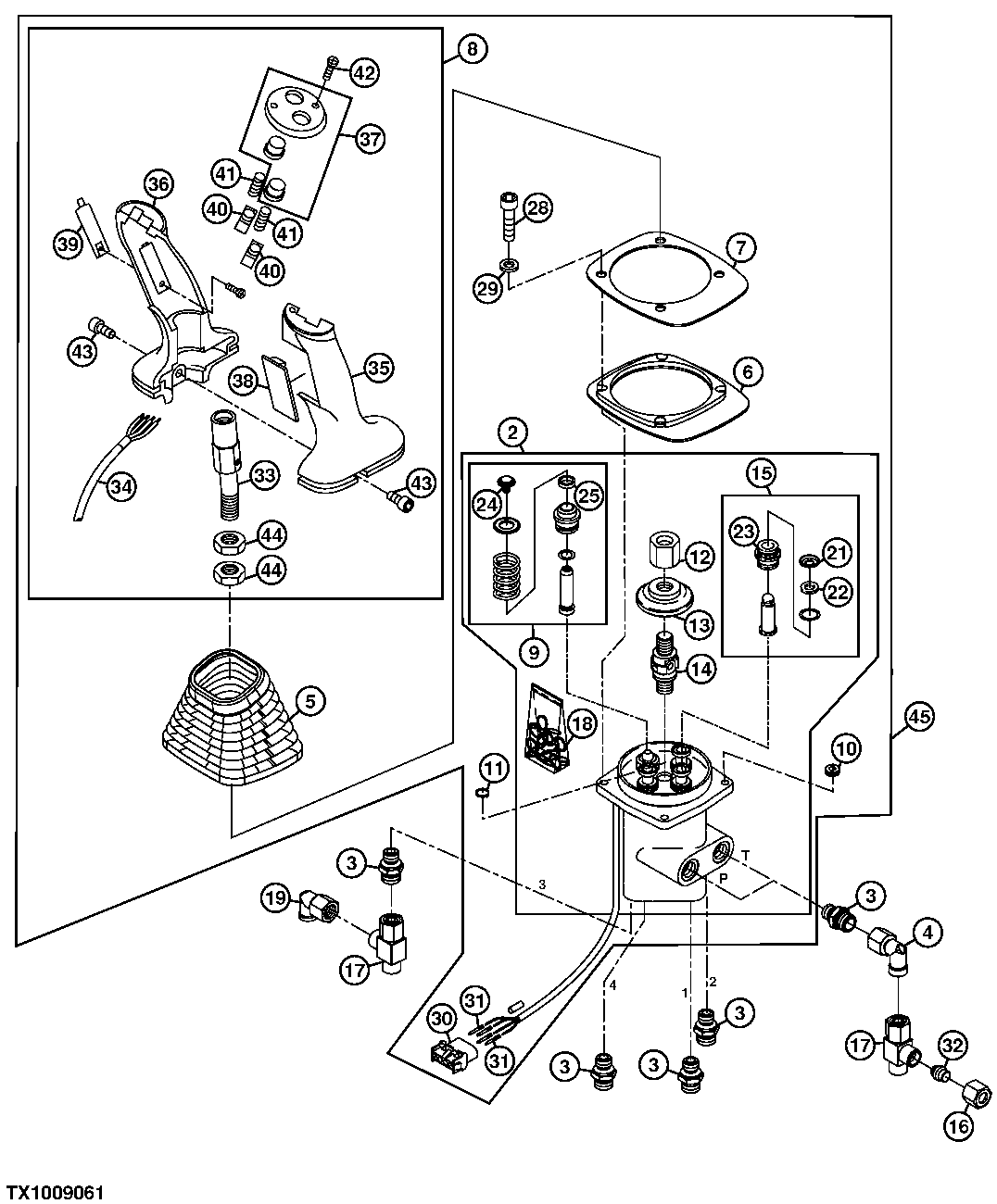

PILOT CONTROLLER AND FITTINGS (S.N. 007282-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT275567	1	Handle	-
2	AT313568	1	Hydr./Pilot Control Valve	-
3	XGE10LREDCF	6	Fitting	SUB FOR AT218837
4	XEW10LOMDCF	2	Adapter Fitting	SUB FOR AT218871
4	51M7106	1	O-Ring	7.500 X 1.500 mm
5	LW10014790	1	Boot	(RECTANGULAR BOOT), (SUB FOR AT219294)
6	AT311710	1	Flange	-
7	AT311711	1	Plate	-
8	AT314445	1	Multi-Functional Controller	-
9	AT275411	1	Repair Kit	-
10	AT277077	1	Plug	(SUB FOR AT274973, AND AT276974THIS APPLICATION)
11	R44302	1	Tie Band	-
12	AT275408	1	Nut	-
13	AT275368	1	Plate	-
14	AT275455	1	Universal Joint	-
15	AT302330	4	Repair Kit	-
16	XM10LCFX	3	Fitting	SUB FOR AT261739
17	XEL10LCF	3	Fitting	SUB FOR AT218872 AND LW247242302
17	51M7106	1	O-Ring	7.500 X 1.500 mm
18	AT275401	1	Gasket Kit	-
21	AT302332	1	Cap	-
22	AT279960	1	Gasket	-
23	AT279959	1	Bushing	-
24	AT275410	1	Bolt	-
25	AT279960	1	Gasket	-
28	19M8263	4	Screw	M6 X 30
29	LW10289802	4	Washer	(SUB FOR 24M7088, THIS APPLICATION)
30	AT276995	1	Electrical Connector Assy	-
31	LW6905970	4	Elec. Connector Terminal	(SUB FOR AT186903)
32	XVKA10CF	3	Fitting	SUB FOR AT261740
32	51M7106	1	O-Ring	7.500 X 1.500 mm
33	AT312040	1	Lever	-
34	AT309800	1	Wiring Harness	-
35	AT219292	1	Handle	-
36	AT219293	1	Handle	-
37	AT218768	1	Switch Kit	-
38	AT219291	1	Plug	(COVER PLATE FOR TOGGLE SWITCH HOLE)
39	AT262066	1	Plug	-
40	AT274476	2	Push Button	-
41	AT184937	2	Spring	-
42	AT218433	2	Screw	-
43	19M7600	2	Screw	M5 X 12
44	14M7156	2	Nut	M14
45	-	1	Part 44	( AT314443 NLA) (SERVICE WITH COMPONENTS)
45	-	1	Part 45	( AT314442 NLA) (SERVICE WITH COMPONENTS) (INCLUDES FNR CONTROLLER AND HYDRAULIC CONTROLLER)
