PILOT CONTROLLER AND FITTINGS (S.N. -007281)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278324	1	Hydr./Pilot Control Valve	(REMANUFACTURED)
1	AT278323	1	Hydr./Pilot Control Valve	-
1	AT313568	1	Hydr./Pilot Control Valve	(SUB FOR AT302327, THIS APPLICATION)
1	AT263606	1	Hydr./Pilot Control Valve	-
2	AT275567	1	Handle	(PILOT CONTROL HANDLE)
3	AT274973	1	Clamp	-
4	LW6905970	4	Elec. Connector Terminal	(SUB FOR AT186903)
5	XGE10LREDCF	6	Fitting	SUB FOR AT218837
6	XEW10LOMDCF	2	Adapter Fitting	SUB FOR AT218871
6	51M7106	1	O-Ring	7.500 X 1.500 mm
7	XEL10LCF	3	Fitting	SUB FOR AT218872 AND LW247242302
7	51M7106	1	O-Ring	7.500 X 1.500 mm
8	AT276995	1	Electrical Connector Assy	-
9	AT275220	1	Fitting	-
10	XVKA10CF	2	Fitting	SUB FOR AT261740
10	51M7106	1	O-Ring	7.500 X 1.500 mm
11	XM10LCFX11	3	PART MISSING IN WISE	SUB FOR AT261739
11	XM10LCFX	2	Fitting	SUB FOR AT261739
12	AT274233	1	Ferrule	-
13	AT218871	1	Elbow Fitting	SUB FOR AT218871
13	51M7106	1	O-Ring	7.500 X 1.500 mm
13	AT265713	1	Elbow Fitting	-
14	AT275411	1	Repair Kit	(PISTON REPAIR KIT WITH SPRING)
15	AT275408	1	Nut	-
16	AT275368	1	Plate	-
17	AT275455	1	Universal Joint	-
18	AT275370	3	Repair Kit	(PISTON REPAIR KIT)
18	AT265385	3	Steering Column Kit	(PISTON REPAIR KIT)
18	AT302330	4	Repair Kit	(PISTON REPAIR KIT)
19	AT275401	1	Gasket Kit	(PILOT CONTROLLER SEAL KIT)
20	AT302332	1	Cap	-
21	AT279960	1	Gasket	-
22	AT279959	1	Bushing	-
23	AT275410	1	Bolt	-
24	AT279960	1	Gasket	-
28	19M7600	2	Screw	M5 X 12
29	AT274220	2	Nut	(USE WITH STANDARD HEIGHT ONLY)
32	AT309787	1	Washer	(USE WITH 2" SHORTENED HEIGHT ONLY)
33	AT315945	1	Set Screw	(USE WITH 2" SHORTENED HEIGHT ONLY)
34	AT218433	2	Screw	-
35	AT184937	2	Spring	-
36	AT274476	2	Push Button	-
37	AT262066	1	Plug	-
38	AT219291	1	Plug	-
39	AT219292	1	Handle	-
40	AT219293	1	Handle	-
41	AT276861	1	Screw	-
42	AT218768	1	Switch Kit	(PILOT CONTROLLER HANDLE BUTTONS)
43	-	1	Part 59	AT274477 NLA, ORDER COMPONENTS
25A	AT275467	1	Adapter Fitting	(STANDARD HEIGHT)
25B	AT309786	1	Adapter Fitting	(2" SHORTENED HEIGHT)
26A	AT275468	1	Adapter Fitting	(STANDARD HEIGHT)
26B	AT309799	1	Adapter Fitting	(2" SHORTENED HEIGHT)
27A	AT274479	1	Boot	(STANDARD HEIGHT) (ROUND BOOT)
27B	AT309801	1	Boot	(2" SHORTENED HEIGHT) (ROUND BOOT)
30A	AT275466	1	Wiring Harness	(PILOT CONTROLLER HANDLE WIRING HARNESS) (STANDARD HEIGHT)
30B	AT309800	1	Wiring Harness	(PILOT CONTROLLER HANDLE WIRING HARNESS) (2" SHORTENED HEIGHT)
31A	AT274461	1	Union Fitting	(STANDARD HEIGHT)
31B	AT309796	1	Union Fitting	(2" SHORTENED HEIGHT)

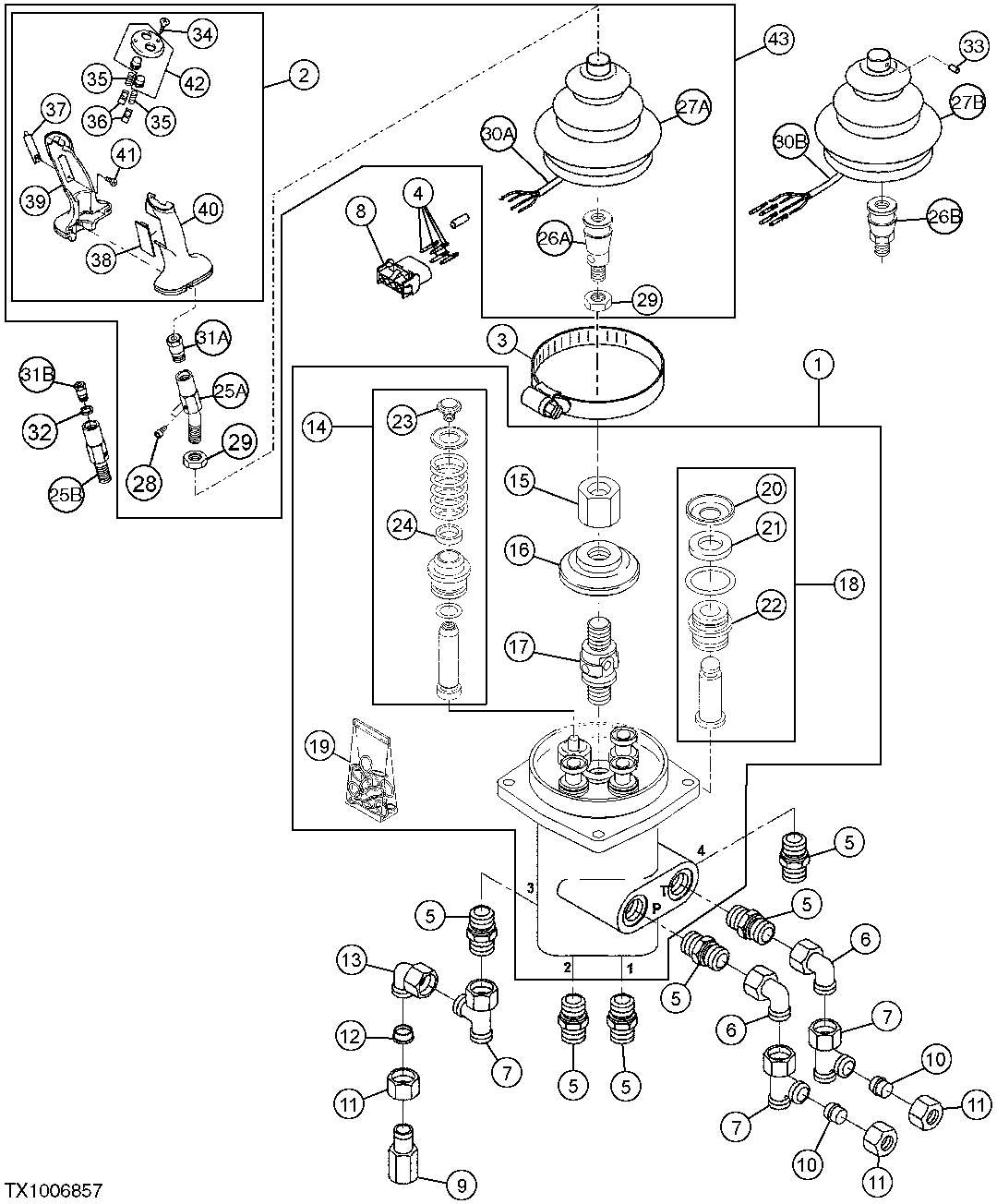

PILOT CONTROLLER AND FITTINGS (S.N. -007281)
