PERFORATED REAR DOOR/ADDITIONAL SEALING FOR MAIN FRAME BELLY PAN AREA

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT303193	1	Cover	-
2	AT303194	1	Cover	-
3	AT307270	1	Bracket	-
4	AT303195	1	Sealing Trim	-
5	AT303196	1	Strip	-
6	19M7881	7	Screw	M8 X 20, (SUB FOR 19M7139)
7	24H1621	2	Washer	11/32" X 1" X 0.220"
9	AT303180	1	Hinge	-
10	AT303213	1	Plate	-
10	AT320715	1	Plate	-
11	19M8011	2	Cap Screw	M12 X 30, (SUB FOR 19M7285)
11	19M7496	2	Cap Screw	M12 X 45, (SUB FOR 19M7303)
12	24M7240	2	Washer	13 X 25 X 3 mm
13	19M7496	2	Cap Screw	M12 X 45, (SUB FOR 19M7303)
13	19M7403	2	Cap Screw	M12 X 35, (SUB FOR 19M7744)
14	24H1272	2	Washer	9/16" X 1-1/4" X 1/4"
14	24M7240	2	Washer	13 X 25 X 3 mm
15	AT307268	2	Sealing Trim	(SAME ON BOTH SIDES OF FRAME)
16	AT307269	2	Sealing Trim	(SAME ON BOTH SIDES OF FRAME)
17	AT274687	1	Lock	-
18	AT274672	1	Key	-
19	AT277388	6	Rivet	-
20	19M7403	1	Cap Screw	M12 X 35, (SUB FOR 19M7744)
21	24H1272	2	Washer	9/16" X 1-1/4" X 1/4"
22	AT322768	1	Lock	-
23	LW9412956	1	Latch Kit	(SUB FOR AT302902)
23	AT322845	1	Latch	-
24	AT320716	1	Lever	-
25	AT265056	2	Nut	-
26	24M7027	2	Washer	5.300 X 10 X 1 mm
27	14M7272	4	Nut	M6
28	LW10289802	4	Washer	(SUB FOR 24M7088, THIS APPLICATION)
8A	AT303179	1	Door	-
8B	AT320714	1	Door	-

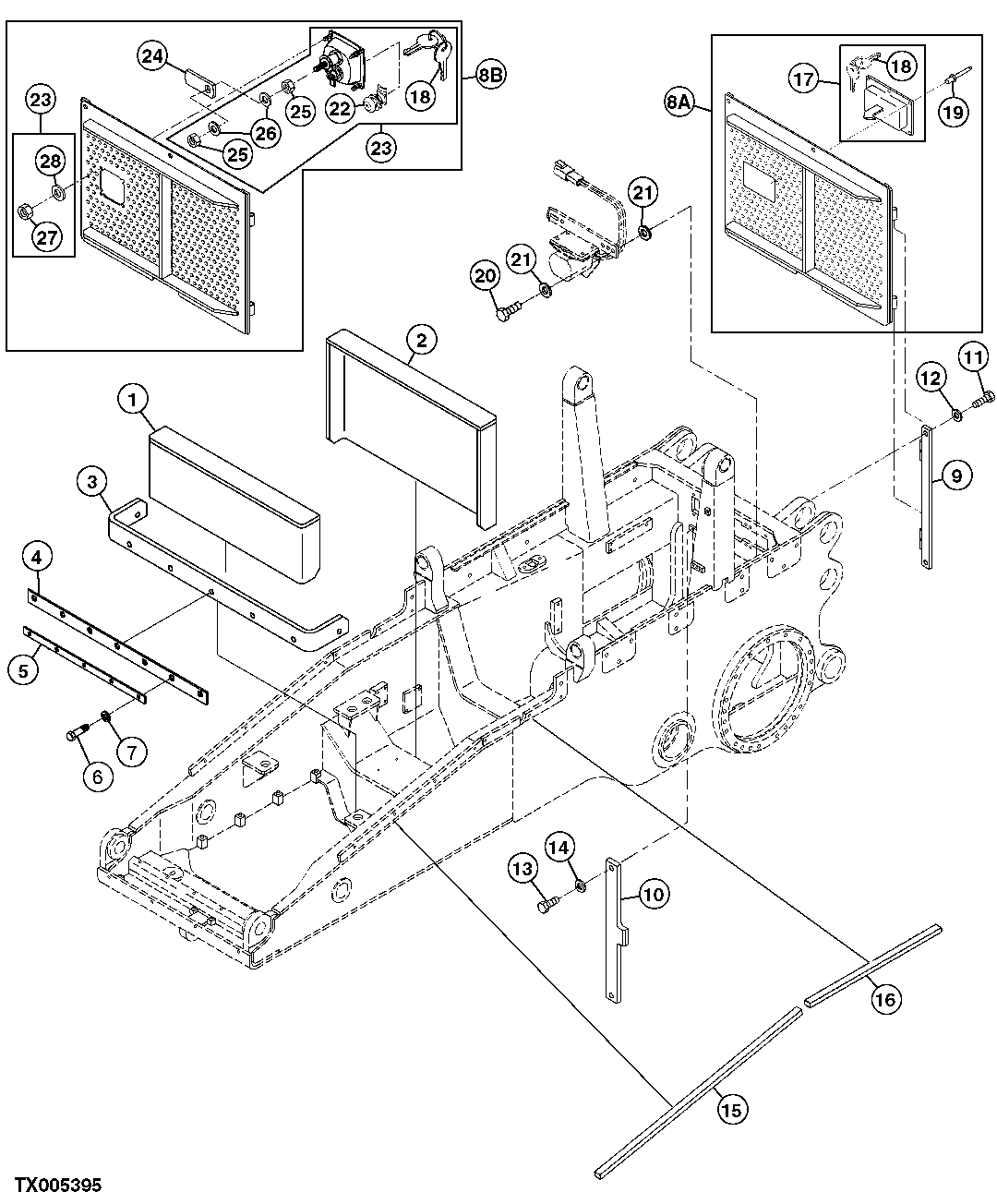

PERFORATED REAR DOOR/ADDITIONAL SEALING FOR MAIN FRAME BELLY PAN AREA
