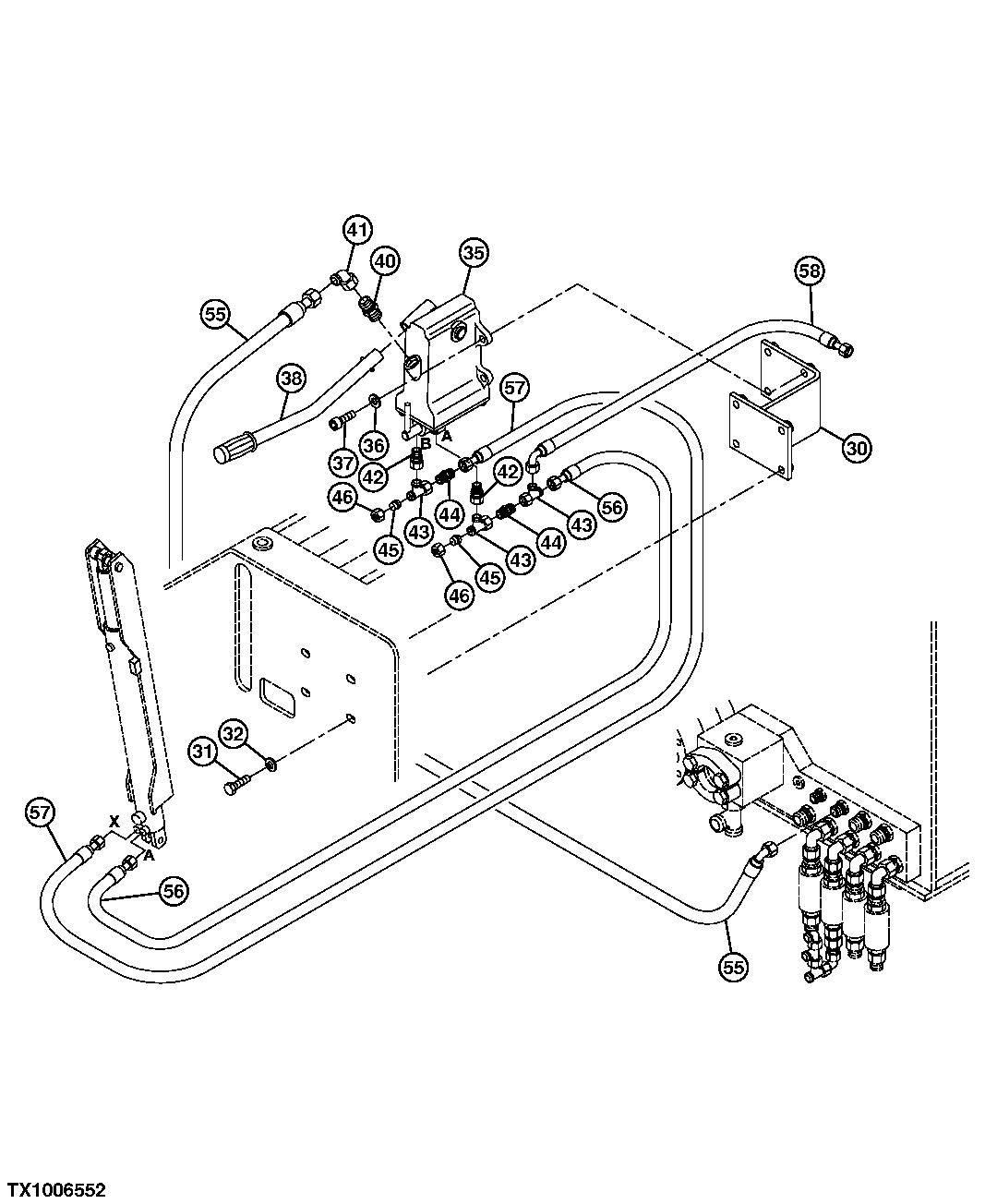

Operator Station Hydraulic Tilt And Gasket Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT274798	1	Gasket Kit	HYDRAULIC HAND PUMP, NLA
30	AT278056	1	Support	-
31	19M7662	4	Cap Screw	M10 X 30
32	24M7213	4	Washer	10.500 X 25 X 4 mm
35	AT274828	1	Hydraulic Pump	HAND PUMP
36	24M7466	4	Washer	10.500 X 20 X 2 mm, SUB FOR LW10289795, THIS APPLICATION
37	19M8881	4	Screw	M10 X 30, SUB FOR AT274252
37	19M8328	4	Screw	M10 X 25, WITH WASTE HANDLER OR WOODCHIP PACKAGE
38	AT314779	1	Lever	SUB FOR AT277661
40	XGE15LMEDCF	1	Elec. Connector Accessory	THREAD, SUB FOR AT218620
41	XEW15LCF	1	Fitting	SUB FOR AT218893
41	51M7109	1	O-Ring	15 X 2 mm
42	51M7104	1	O-Ring	4 X 1.500 mm
42	XEGE06LMEDCF	2	Fitting	THREADED, SUB FOR AT218893
43	XEL06LCF	3	Fitting	SUB FOR AT274809 AND LW482330014
43	51M7104	1	O-Ring	4 X 1.500 mm
44	XG06LCFX	2	Adapter Fitting	SUB FOR AT276812
45	XVKA06CF	2	Fitting	SUB FOR AT276851
45	51M7104	1	O-Ring	4 X 1.500 mm
46	XM06LCFX	2	Fitting	SUB FOR AT276853
55	AT277421	1	Hydraulic Hose	-
55	51M7108	2	O-Ring	12 X 2 mm
56	AT277422	1	Hydraulic Hose	-
56	51M7105	2	O-Ring	6 X 1.500 mm
57	AT277422	1	Hydraulic Hose	-
58	AT279946	1	Hydraulic Hose	Fabricate
58	51M7104	2	O-Ring	4 X 1.500 mm

Operator Station Hydraulic Tilt And Gasket Kit
