MAIN INSTRUMENT PANEL, ROOF PANEL, BACKUP ALARM, AND SOLENOID ELECTRICAL CONNECTORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8652	1	Elec. Connector Housing	72 WAY FEM. CONNECTOR (MAIN INSTRUMENT PANEL/ENGINE HARNESS)
2	57M8683	1	Elec. Connector Terminal	(1 MM CONTACT)
2	57M8684	1	Elec. Connector Terminal	(1.5 MM CONTACT)
2	57M8685	1	Elec. Connector Terminal	(2.5 MM CONTACT)
4	57M8686	1	Elec. Connector Terminal	(1 MM CONTACT)
4	57M8687	1	Elec. Connector Terminal	(1.5 MM CONTACT)
4	57M8688	1	Elec. Connector Terminal	(2.5 MM CONTACT)
5	57M8697	1	Elec. Connector Housing	HAN DD 72 WAY MALE CONNECTOR (MAIN INSTRUMENT PANEL/ENGINE HARNESS)
9	57M10118	1	Elec. Connector Housing	(SUB FOR 57M8655) 2 WAY SPLASH PROOF SEC LOCK (MULTI USE SOLENOID)
10	57M7393	1	Elec. Connector Terminal	-
11	57M7400	1	Elec. Connector Seal	-
16	57M9018	1	Elec. Connector Terminal	.250 CENTERLINE MATE-N-LOK PIN
17	57M8658	1	Connector	MATENLOK 4 WAY RECEPTACLE HOUSING (ROOF PANEL)
18	AT259211	1	Plug	(ROOF PANEL)
19	L36668	1	Electrical Conductor	-
20	57M7066	1	Elec. Connector Housing	(BACKUP ALARM)
21	57M9020	1	Elec. Connector Terminal	6.35MM, 18-16 GA TAB
22	-	1	Part 18	(NO LONGER AVAILABLE) (BACKUP ALARM)
23	57M9019	1	Elec. Connector Terminal	TAB RECEPTACLE, 18-14 GA.

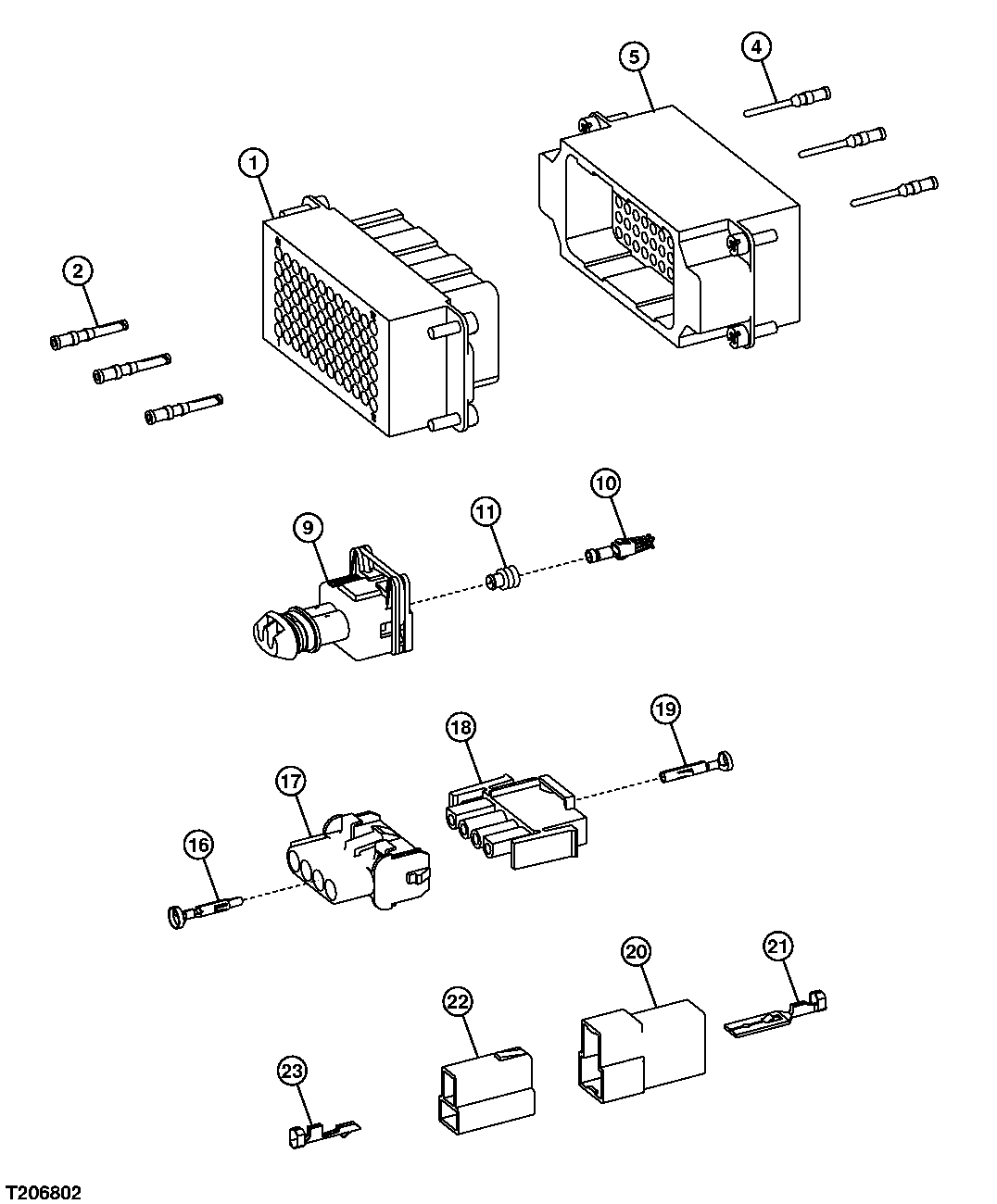

MAIN INSTRUMENT PANEL, ROOF PANEL, BACKUP ALARM, AND SOLENOID ELECTRICAL CONNECTORS
