MAIN HYDRAULIC CONTROL VALVE (SCRAPER PULLER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT280134	1	Valve Spool	-
2	AT302353	1	Valve Spool	-
3	AT266091	1	Piston	-
4	AT266092	1	Self-Locking Screw	-
5	LW10488344	1	Pressure Relief Valve	(SUB FOR AT311709)
6	AT318380	1	Fitting Plug	-
7	AT280143	2	Check Valve	-
8	AT266088	1	Plug	-
9	LW10301748	1	Self-Locking Screw	-
10	LW10488342	1	Pressure Relief Valve	(SUB FOR AT280147)
11	LW10301749	1	Self-Locking Screw	-
12	LW11690731	1	Fitting	SUB FOR AT280138
13	AT280135	4	Valve Spool	-
14	AT280140	1	Spring	-
15	AT280133	4	Cover	-
16	AT280139	1	Plunger	-
17	AT280136	4	Plate	-
18	AT266089	1	Self-Locking Screw	-
19	LW7369482	4	Fitting Plug	-
20	19M7768	2	Screw	M6 X 16
21	AT311873	1	Control Valve	(MAIN HYDRAULIC CONTROL VALVE)
22	AT266094	4	Cap Screw	-
23	AT265660	4	Washer	-
25	AT265103	1	Plug	-
26	AT265104	1	Plug	-
27	AT265131	1	Cover	-
28	AT196491	1	O-Ring Kit	-
29	AT263581	2	O-Ring Kit	-
30	LW10469909	1	Pressure Relief Valve	(SUB FOR AT278405)
31	LW10332095	2	Gasket Kit	(SUB FOR AT300691)
32	LW10332088	1	Gasket	(SUB FOR AT280150)
33	LW10332095	1	Gasket Kit	(SUB FOR AT278399)
35	LW10332095	1	Gasket Kit	(SUB FOR AT280151)

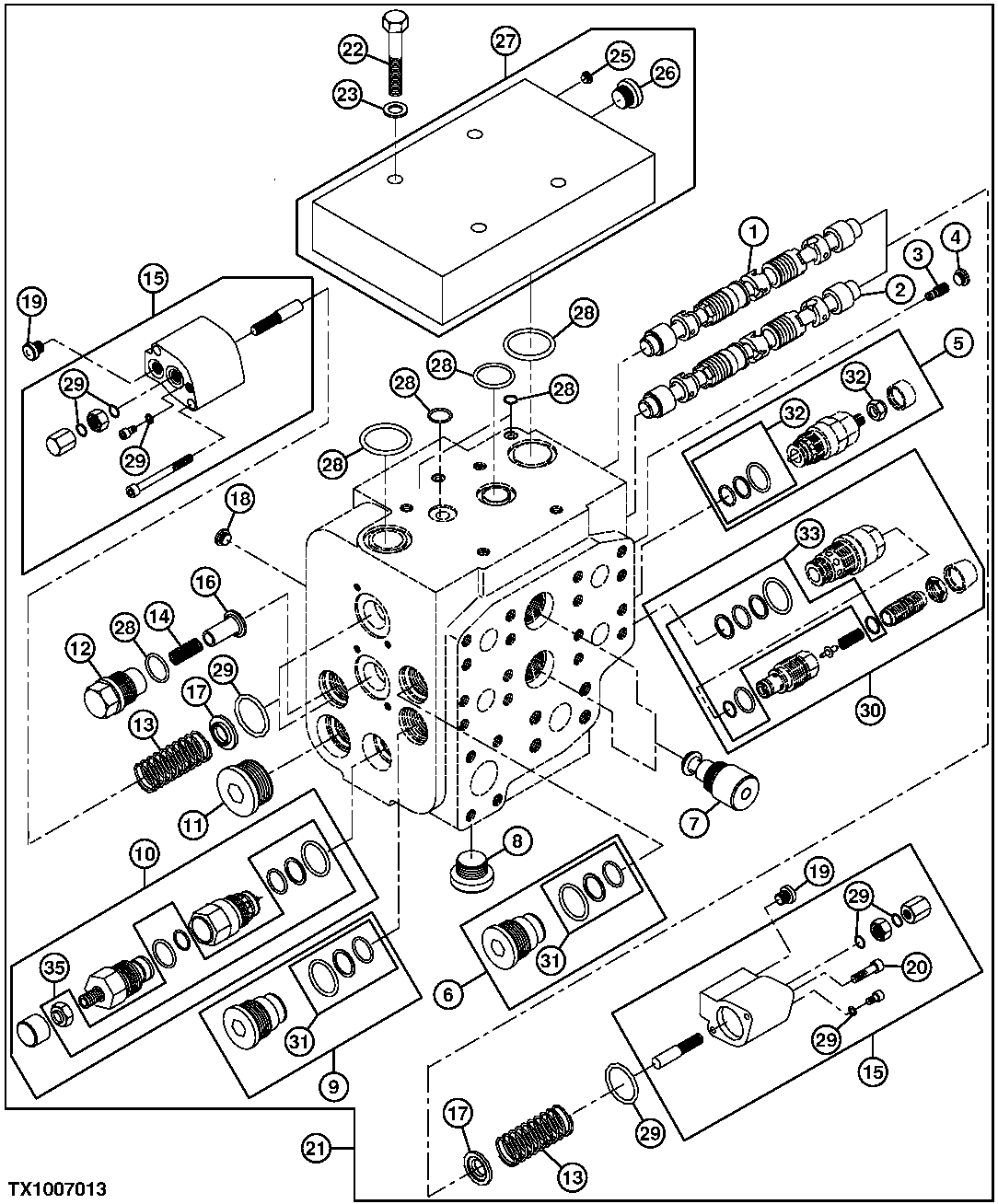

MAIN HYDRAULIC CONTROL VALVE (SCRAPER PULLER)
