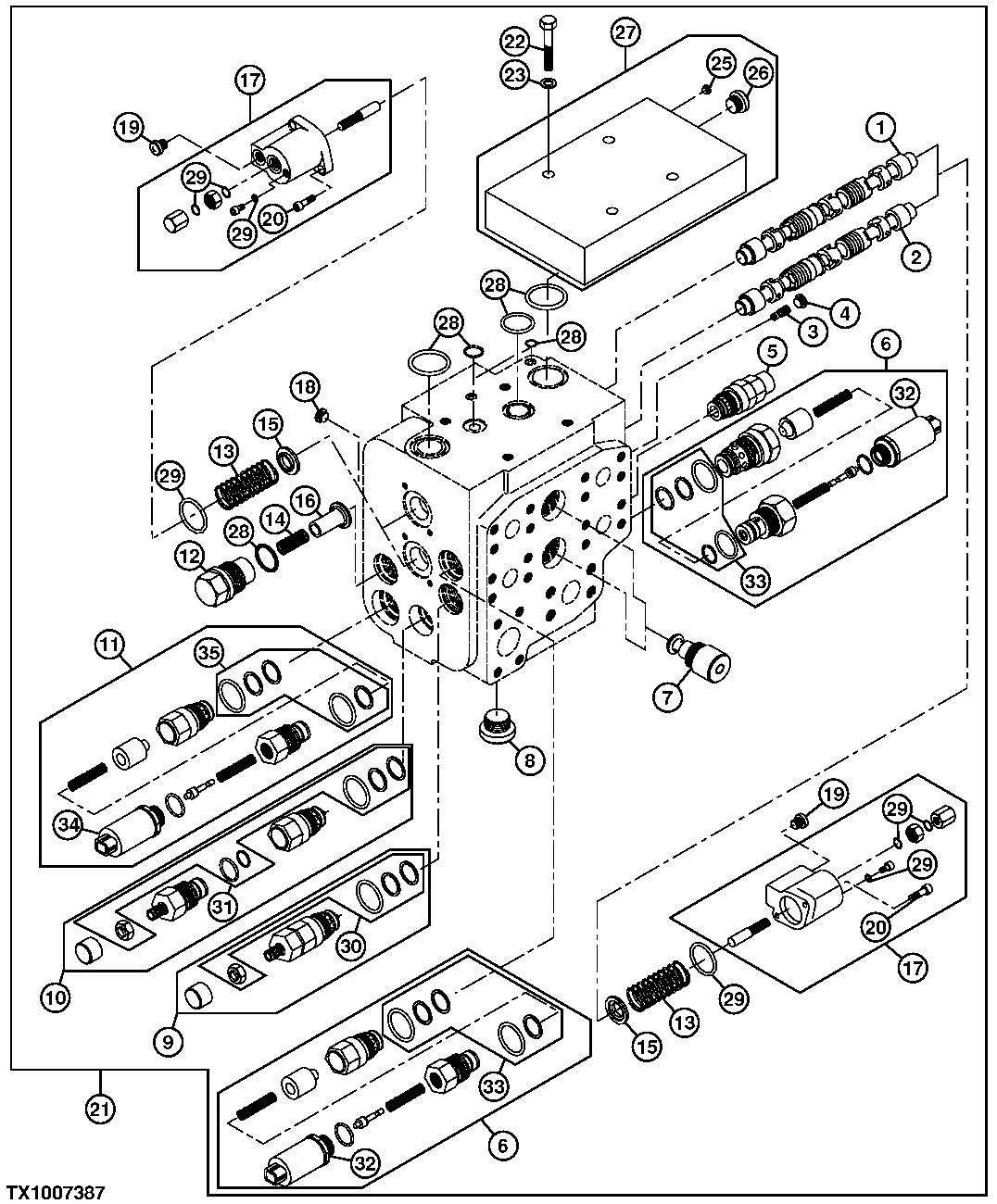

MAIN HYDRAULIC CONTROL VALVE (DOZER)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT280134	1	Valve Spool	Blade Tilt
2	AT280134	1	Valve Spool	Blade Raise/Lower
2	AT302353	1	Valve Spool	Blade Raise/Lower
3	AT280144	1	Pressure Relief Valve	-
3	AT266091	1	Piston	-
4	AT280145	1	Plug	-
4	AT266092	1	Self-Locking Screw	-
5	LW10475746	1	Pressure Relief Valve	INCLUDES LW10332088, SUB FOR AT280146, SECONDARY RELIEF; TILT CYLINDER
6	AT280148	2	Solenoid Valve	FLOAT SOLENOID VALVE
7	AT280143	2	Check Valve	-
8	PMH3496	1	Fitting	-
8	AT266088	1	Plug	-
8	PMH3810	1	Fitting	SUB FOR AT280141
9	AT280146	1	Pressure Relief Valve	SECONDARY RELIEF VALVE FOR LIFT CYLINDER
10	LW10488342	1	Pressure Relief Valve	SUB FOR AT280147, PRIMARY RELIEF VALVE, 270 BAR
11	AT280149	1	Solenoid Valve	QUICK DROP SOLENOID VALVE
12	LW11690731	2	Fitting	CHECK VALVE, NON-ADJUSTABLE, SUB FOR AT280138
13	AT280135	4	Valve Spool	-
14	AT280140	2	Spring	-
15	AT280136	4	Plate	-
16	AT280139	2	Plunger	-
17	AT280133	4	Cover	-
18	AT266089	1	Self-Locking Screw	-
18	AT280142	1	Plug	-
19	LW7369482	4	Fitting Plug	SUB FOR AT280137
20	19M7768	8	Screw	M6 X 16
21	-	1	Part 27	Main Hydraulic Control Valve, AT276962 NLA, ORDER AT302352
21	AT302352	1	Control Valve	Main Hydraulic Control Valve
22	AT265062	4	Cap Screw	-
22	AT266094	4	Cap Screw	-
23	AT265660	4	Washer	-
25	AT265103	1	Plug	-
26	AT265104	1	Plug	-
27	AT265131	1	Cover	-
28	AT196491	1	O-Ring Kit	-
29	AT263581	1	O-Ring Kit	-
30	LW10332088	1	Gasket	SUB FOR AT280150
31	LW10332095	1	Gasket Kit	SUB FOR AT280151, PRESSURE VALVE SEAL KIT
32	AT311707	2	Solenoid	FLOAT SOLENOID
33	LW10332095	2	Gasket Kit	SUB FOR AT280153
34	AT280149	1	Solenoid Valve	SUB FOR AT311706, QUICK DROP SOLENOID
35	AT280154	1	Gasket Kit	-

MAIN HYDRAULIC CONTROL VALVE (DOZER)

Нет текстового описания
