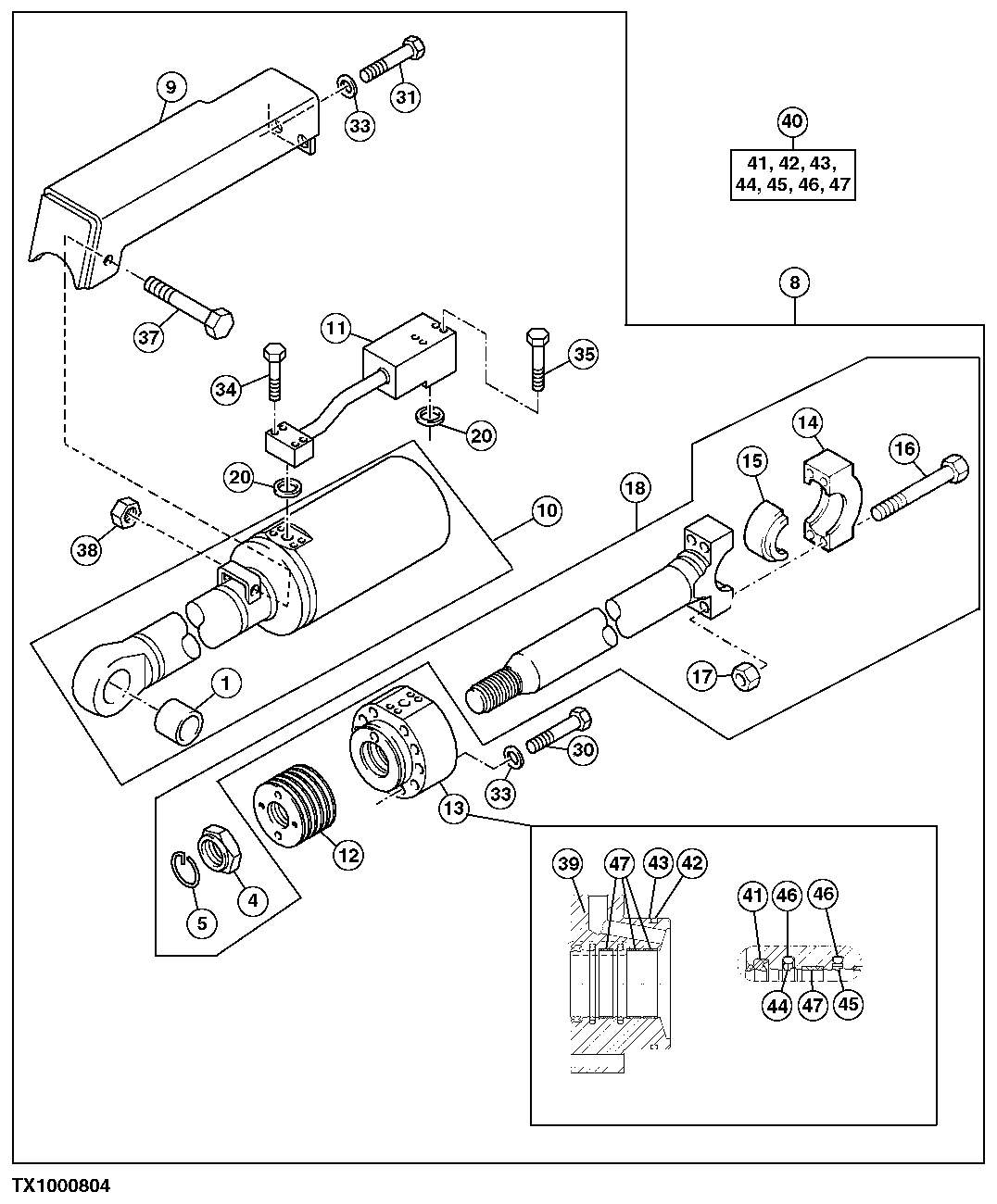

LEFT SIDE POWER PITCH CYLINDER COMPONENTS (ANGLE BLADE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT277055	1	Bushing	-
4	AT199889	1	Nut	-
5	AT274103	1	Snap Ring	-
8	AT316000	1	Hydraulic Cylinder	-
9	AT300837	1	Cover	-
10	AT315962	1	Hydraulic Cylinder Barrel	-
11	AT300838	1	Tube	-
12	AT300840	1	Piston	(INCLUDES AT264797)
12	AT264797	1	Hydraulic Cylinder Kit	-
13	LW9596154	1	Bearing	(SUB FOR AT300841)(INCLUDES AT300843)
13	AT300843	1	Seal Kit	-
14	AT264576	1	Bearing Cap	-
15	AT277683	1	Bearing	-
16	19M8100	4	Cap Screw	M20 X 180
17	14M7277	4	Nut	M20
18	AT315963	1	Rod	(INCLUDES AT199889 AND AT274103)
20	LW10490785	2	O-Ring	(SUB FOR LW10290521 AND AT277047)
30	19M7364	2	Cap Screw	M12 X 80
31	19M7943	2	Cap Screw	M12 X 90
33	AT265552	15	Washer	-
34	AT274256	4	Screw	-
35	19M7663	4	Cap Screw	M8 X 70
37	19M7732	1	Cap Screw	M16 X 130
38	14M7328	1	Lock Nut	M16
39	-	1	Part 25	( LW9596155 NO LONGER AVAILABLE)
40	AT300843	1	Seal Kit	-
41	-	1	Part 27	( AT276166 NO LONGER AVAILABLE)
42	-	1	Part 28	( AT278692 NO LONGER AVAILABLE)
43	AT324083	1	Sealing Washer	-
44	-	1	Part 30	( AT274571 NO LONGER AVAILABLE)
45	-	1	Part 31	( AT274500 NO LONGER AVAILABLE)
46	-	2	Part 32	( AT274616 NO LONGER AVAILABLE)
47	-	3	Part 33	( AT274537 NO LONGER AVAILABLE)

LEFT SIDE POWER PITCH CYLINDER COMPONENTS (ANGLE BLADE)
