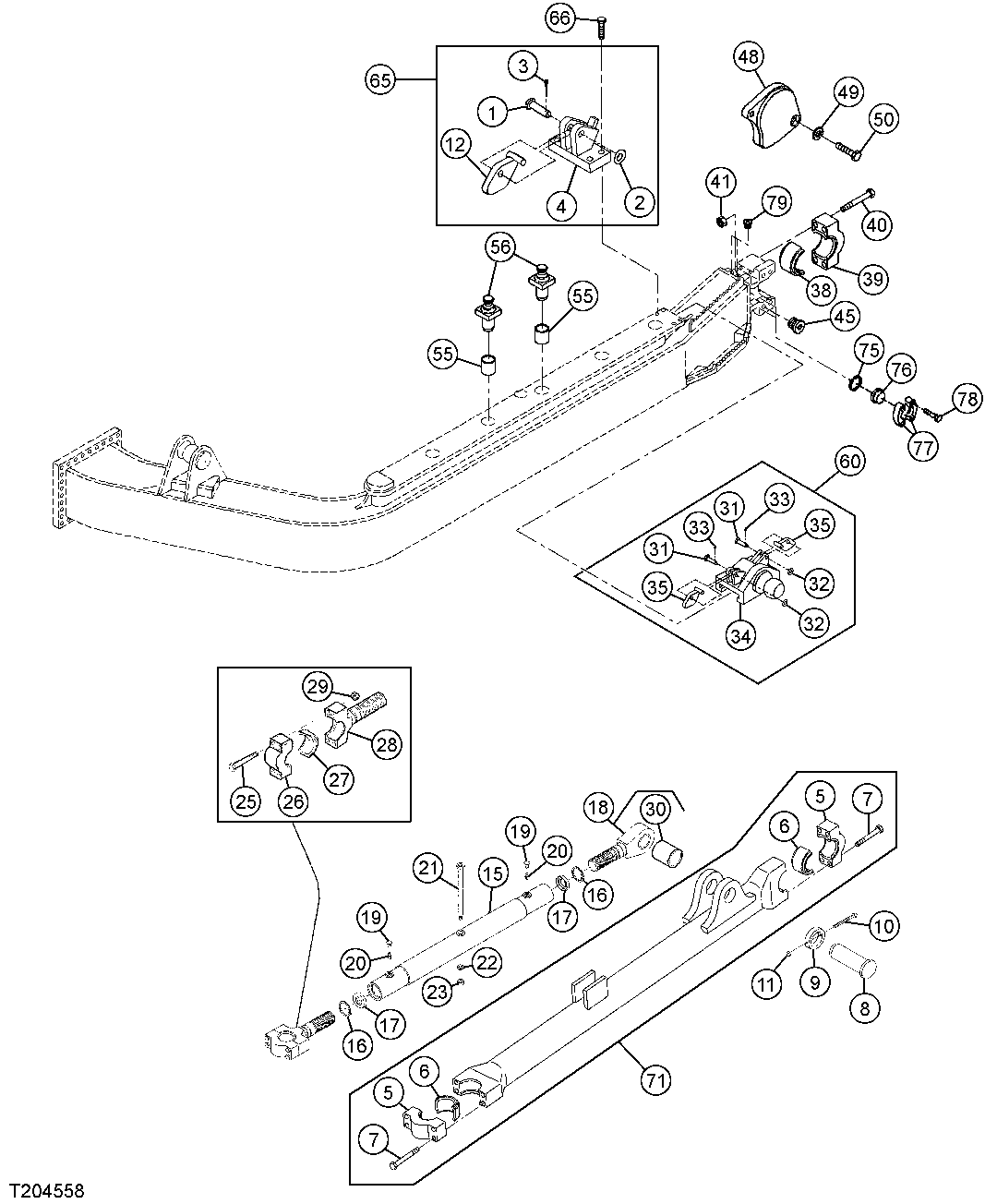

LEFT PUSH BEAM WITH MANUAL PITCH JACK (ANGLE BLADE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT316011	1	Pin Fastener	-
2	24M7051	1	Washer	21 X 37 X 3 mm, SUB FOR AT174140
3	11M7028	1	Cotter Pin	5 X 32 mm
4	AT266616	1	Bracket	-
5	AT264576	2	Bearing Cap	-
6	AT277683	2	Bearing	-
7	19M7969	8	Cap Screw	M20 X 110
8	AT304006	1	Pin Fastener	-
9	AT277657	1	Ring	-
10	19M7411	1	Cap Screw	M16 X 130
11	14M7328	1	Lock Nut	M16
12	AT316012	1	Retainer	-
15	AT316010	1	Brace	(SUB FOR AT315994)
16	AT276763	2	Snap Ring	-
17	AT274640	2	Seal	-
18	AT278300	1	Yoke	-
19	AT275211	2	Cap	-
20	AT219273	2	Lubrication Fitting	-
21	AT315995	1	Rod	-
22	R113500	1	Washer	-
23	14M7277	1	Nut	M20
25	19M8100	4	Cap Screw	M20 X 180
26	AT264576	1	Bearing Cap	-
27	AT277683	1	Bearing	-
28	AT316020	1	Yoke	-
29	14M7277	4	Nut	M20
30	AT277055	1	Bushing	-
31	AT316011	2	Pin Fastener	-
32	24M7051	2	Washer	21 X 37 X 3 mm, SUB FOR AT274140
33	11M7028	2	Cotter Pin	5 X 32 mm
34	AT266544	1	Ball	-
35	AT316012	2	Retainer	-
38	AT277954	1	Bearing	-
39	AT277953	1	Cap	-
40	19M7890	4	Cap Screw	M24 X 240
41	14M7278	4	Nut	M24, (SUB FOR AT276779)
45	AT277644	6	Plug	(USE WITH MANUAL PITCH JACK ONLY)
48	AT278211	1	Cover	(USE WITH MANUAL PITCH JACK ONLY)
49	24M7559	2	Washer	25 X 44 X 4 mm, Use With Manual Pitch Jack Only, (SUB FOR AT275997 )
50	19M8346	2	Cap Screw	M24 X 70, (USE WITH MANUAL PITCH JACK ONLY)
55	AT196678	5	Bushing	-
56	AT196674	2	Pin	-
60	AT196673	1	Bearing	-
65	AT196672	1	Retainer	-
66	19M7409	4	Cap Screw	M16 X 50
71	AT300698	1	Support	-
75	LW10490785	2	O-Ring	(SUB FOR LW10290521 AND AT277047)
76	AT264902	2	Plug	-
77	LW10286357	4	Flange	(SUB FOR AT264728)
78	19M7407	8	Cap Screw	M8 X 25
79	PMH3077	2	Fitting	SUB FOR AT277073
79	PMH3831	1	Fitting	-
