Left Push Beam Hoses And Covers (Angle Blade)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT277951	1	Cover	-
2	24M7559	6	Washer	25 X 44 X 4 mm, SUB FOR AT275997
3	AT276808	6	Screw	-
4	LW10490785	2	O-Ring	SUB FOR LW10290521 AND AT277047
6	LW10286357	4	Flange	SUB FOR AT264728
7	19M7407	8	Cap Screw	M8 X 25
8	AT278741	1	Cover	-
9	24M7559	4	Washer	25 X 44 X 4 mm, SUB FOR AT275997
10	AT276808	1	Screw	-
11	19M7893	3	Cap Screw	M24 X 160
16	XGE20SMEDCF	2	Fitting	SUB FOR AT218490
17	AT277383	1	Hydraulic Hose	Fabricate, ALSO ORDER R69667 AND 51M7110
17	51M7110	2	O-Ring	16.300 X 2.400 mm
17	R69667	2	O-Ring	-
18	AT277384	1	Hydraulic Hose	Fabricate, ALSO ORDER R69667 AND 51M7110
18	R69667	2	O-Ring	-
18	51M7110	2	O-Ring	16.300 X 2.400 mm
23	XGE20SMEDCF	1	Fitting	SUB FOR AT218490
24	AT266542	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
24	51M7110	2	O-Ring	16.300 X 2.400 mm
25	XGE20SMEDCF	2	Fitting	SUB FOR AT218490
26	51M7110	1	O-Ring	16.300 X 2.400 mm
26	XVKA20CF	1	Fitting	SUB FOR AT250298
27	XM20SCFX	1	Fitting	SUB FOR AT250299
28	XGE20SMEDCF	1	Fitting	SUB FOR AT218490
29	AT266541	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7110
29	51M7110	2	O-Ring	16.300 X 2.400 mm
30	XGE20SMEDCF	2	Fitting	SUB FOR AT218490
31	XVKA20CF	1	Fitting	SUB FOR AT250298
31	51M7110	1	O-Ring	16.300 X 2.400 mm
32	XM20SCFX	1	Fitting	SUB FOR AT250299
33	R44302	3	Tie Band	-
38	AT196665	1	Cover	-
39	24M7559	2	Washer	25 X 44 X 4 mm, SUB FOR AT275997
40	19M7888	2	Cap Screw	M24 X 60
41	AT315991	1	Step	-
48	AT196666	1	Cover	-
49	24M7559	3	Washer	25 X 44 X 4 mm, SUB FOR AT275997
50	19M7888	3	Cap Screw	M24 X 60
51	AT265451	1	Trunnion	SUB FOR AT300699

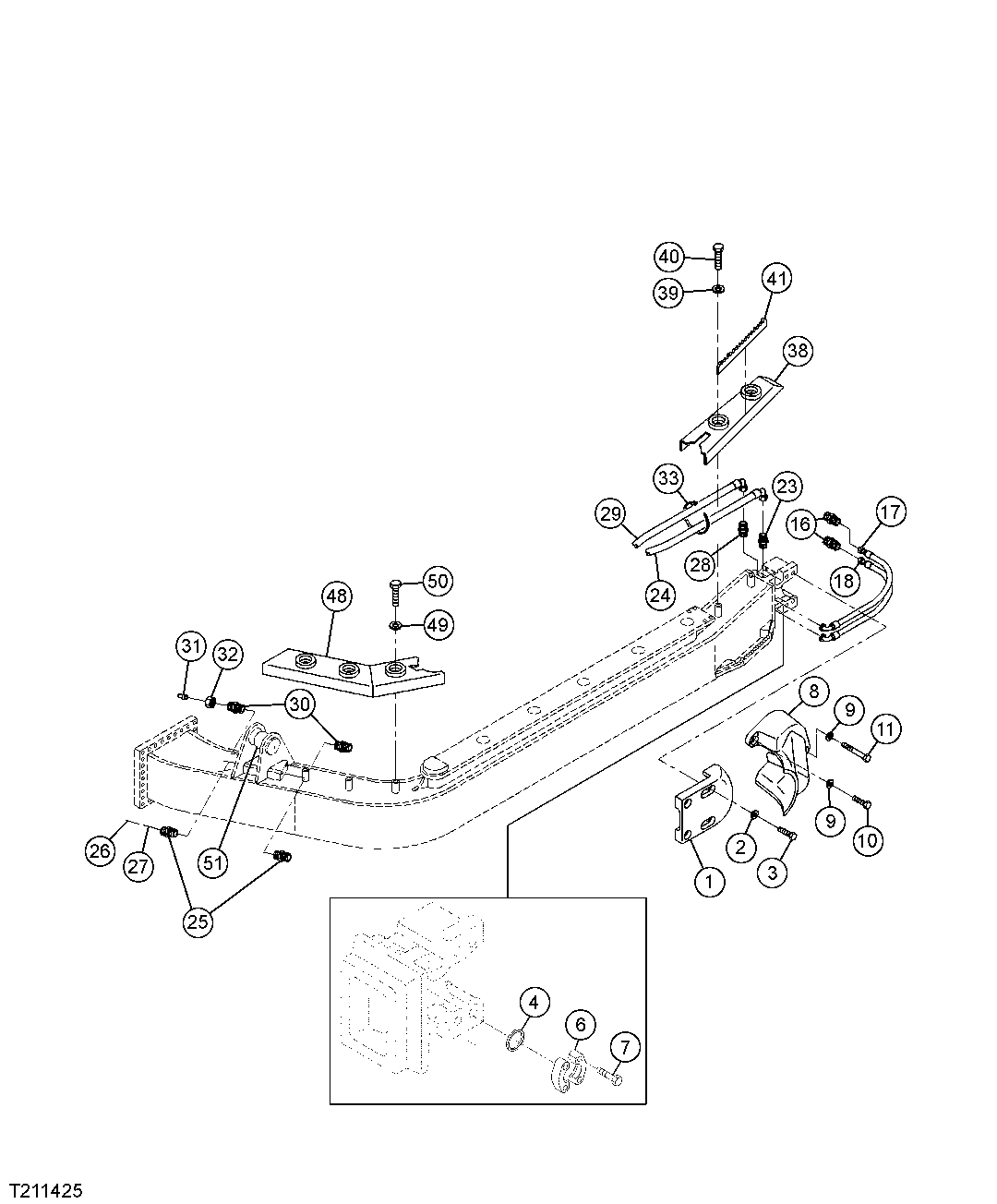

Left Push Beam Hoses And Covers (Angle Blade)
