INSTRUMENT PANEL SWITCHES, INDICATOR LIGHTS, FUSES AND GAUGES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
39	AT274190	1	Seal	-
40	AT322696	1	Rotary Switch	PRE-HEAT/START, (SUB FOR AT274848)
41	AT322697	1	Cover	FOLDING, (SUB FOR AT274807)
42	LW10288887	1	Key	(IGNITION AND CAB DOOR), (SUB FOR AT322699)
43	AT314858	1	Push Button	(SUB FOR AT274411 OR AT276117)(EMERGENCY STOP)
47	AT274387	1	Push Button	HORN
48	AT266565	1	Switch	BUCKET FLOAT POSITION
50	AT276986	1	Push Button	LOW TRAVEL SPEED
54	AT274400	4	Elec. Connector Housing	-
55	AT274463	1	Lamp	INCANDESCENT, (SUB FOR AT274850)
57	AT275244	5	Plug	-
58	AT265628	1	Electrical Lamp Socket	-
58	AT314855	1	Electrical Lamp Socket	-
59	AT265360	1	Bulb	-
59	AT314856	1	Bulb	-
80	AT274440	1	Pressure Gauge	ENGINE OIL PRESSURE
80	AT309017	1	Pressure Gauge	ENGINE OIL PRESSURE
81	AT274441	1	Temperature Gauge	ENGINE COOLANT TEMPERATURE
81	AT309019	1	Temperature Gauge	ENGINE COOLANT TEMPERATURE
82	AT274442	1	Gauge	FUEL
82	AT309018	1	Gauge	FUEL
83	-	1	Part 22	LW10331243 AND AT274443 NLA, ORDER LW9412432
83	LW9412432	1	Hour Meter	(HOUR METER), (SUB FOR AT309016)
85	AT274808	4	O-Ring	-
85	AT309020	4	Gasket	-
87	AT274397	5	Indicator Lamp	YELLOW
89	AT274880	6	Indicator Lamp	RED
90	AT274378	11	Bulb	INCANDESCENT
92	LW7011552	1	Fitting Plug	(SUB FOR AT275245 NLA)
93	AT274408	1	Switch	AIR CONDITIONING

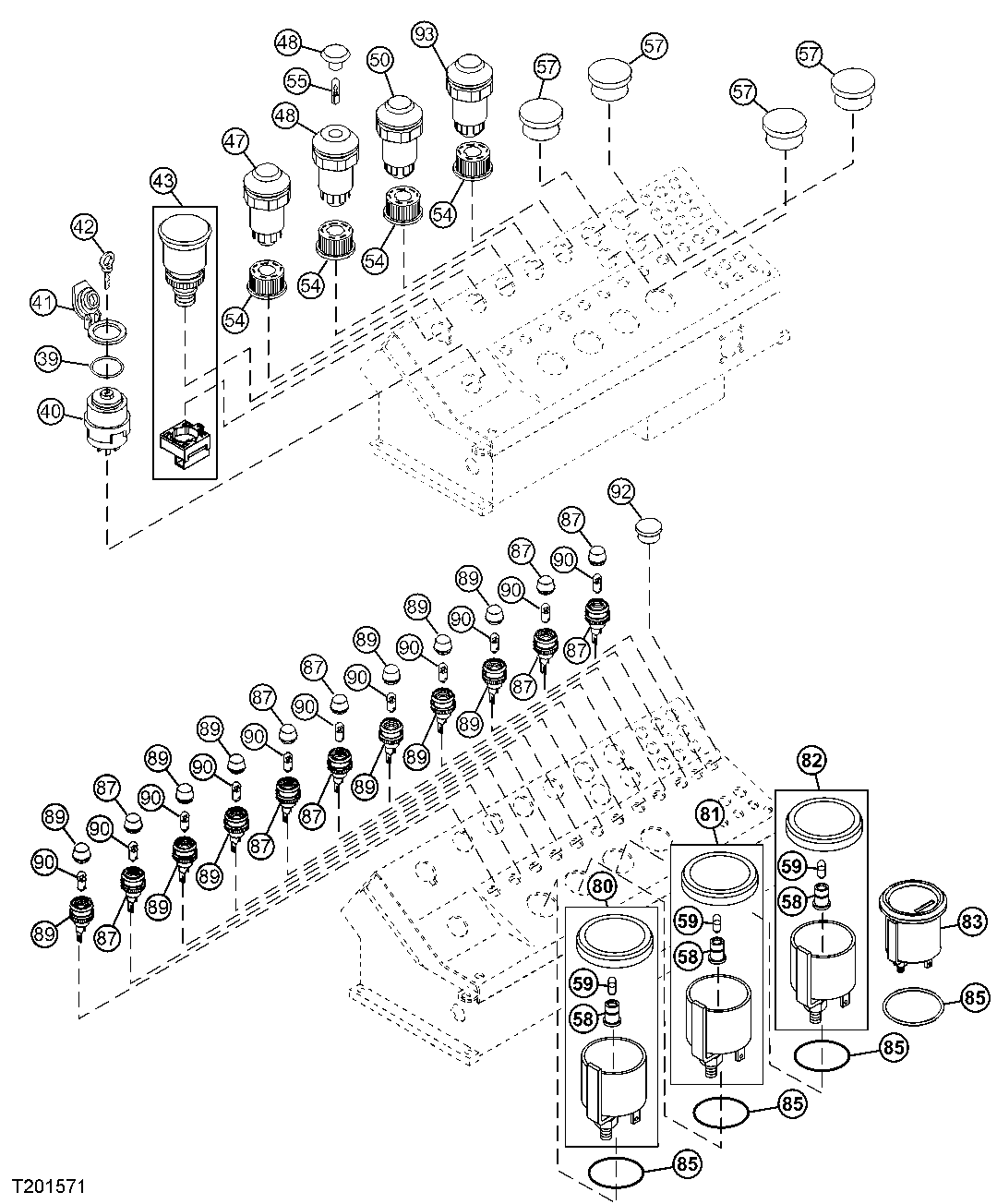

INSTRUMENT PANEL SWITCHES, INDICATOR LIGHTS, FUSES AND GAUGES
