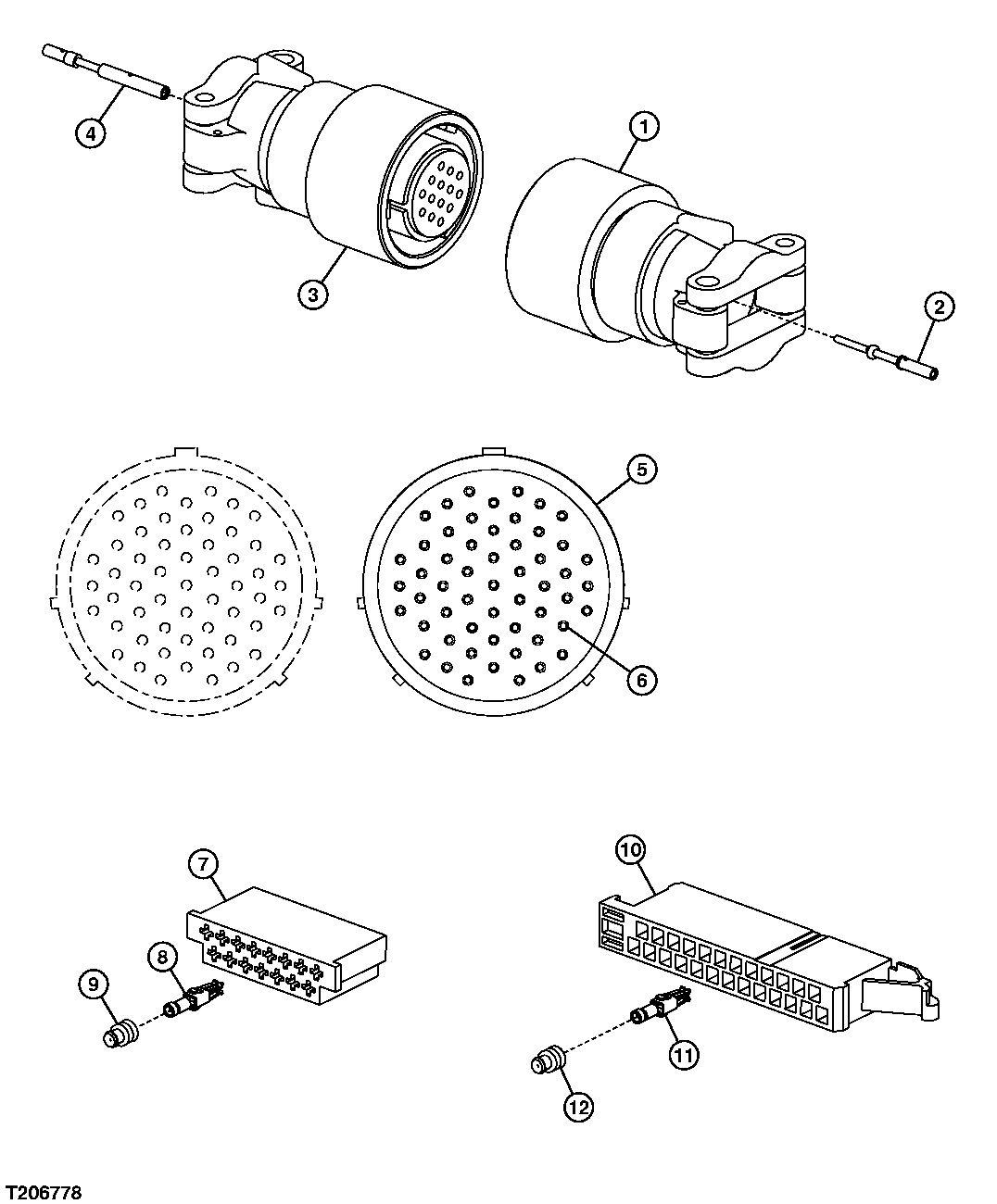

INSTRUMENT PANEL, ELECTRONIC BOX, AND CENTRAL WIRING HARNESS CONNECTORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8653	1	Elec. Connector Housing	14 WAY ALUM. HOUSING, SOCKET CONTACT (CAB)
2	57M8689	1	Elec. Connector Terminal	1.5 MM2 FEMALE CONTACT
3	57M8654	1	Elec. Connector Housing	14 WAY ALUM. HOUSING, PIN CONTACT (CAB)
4	57M8690	1	Elec. Connector Terminal	1.5MM2 MALE CONTACT
5	57M8666	1	Elec. Connector Housing	55 WAY HOUSING, SOCKET CONTACT (ELECTRONIC BOX)
6	57M9017	1	Elec. Connector Terminal	FEMALE CONTACT
7	57M8665	1	Elec. Connector Housing	JRPOWR TIMER 15 WAY HOUSING (FAN DRIVE)
8	57M7393	1	Elec. Connector Terminal	-
9	57M7400	1	Elec. Connector Seal	JRPT45, SEAL PTS 1.2-2.1
10	57M8678	1	Elec. Connector Housing	25 WAY RCPT HOUSING (BOX FAN DRIVE)
11	57M7393	1	Elec. Connector Terminal	-
12	57M7400	1	Elec. Connector Seal	JRPT45, SEAL PTS 1.2-2.1
6A	57M8696	1	Elec. Connector Cavity Plug	(NOT ILLUSTRATED)

INSTRUMENT PANEL, ELECTRONIC BOX, AND CENTRAL WIRING HARNESS CONNECTORS
