Открытый узел

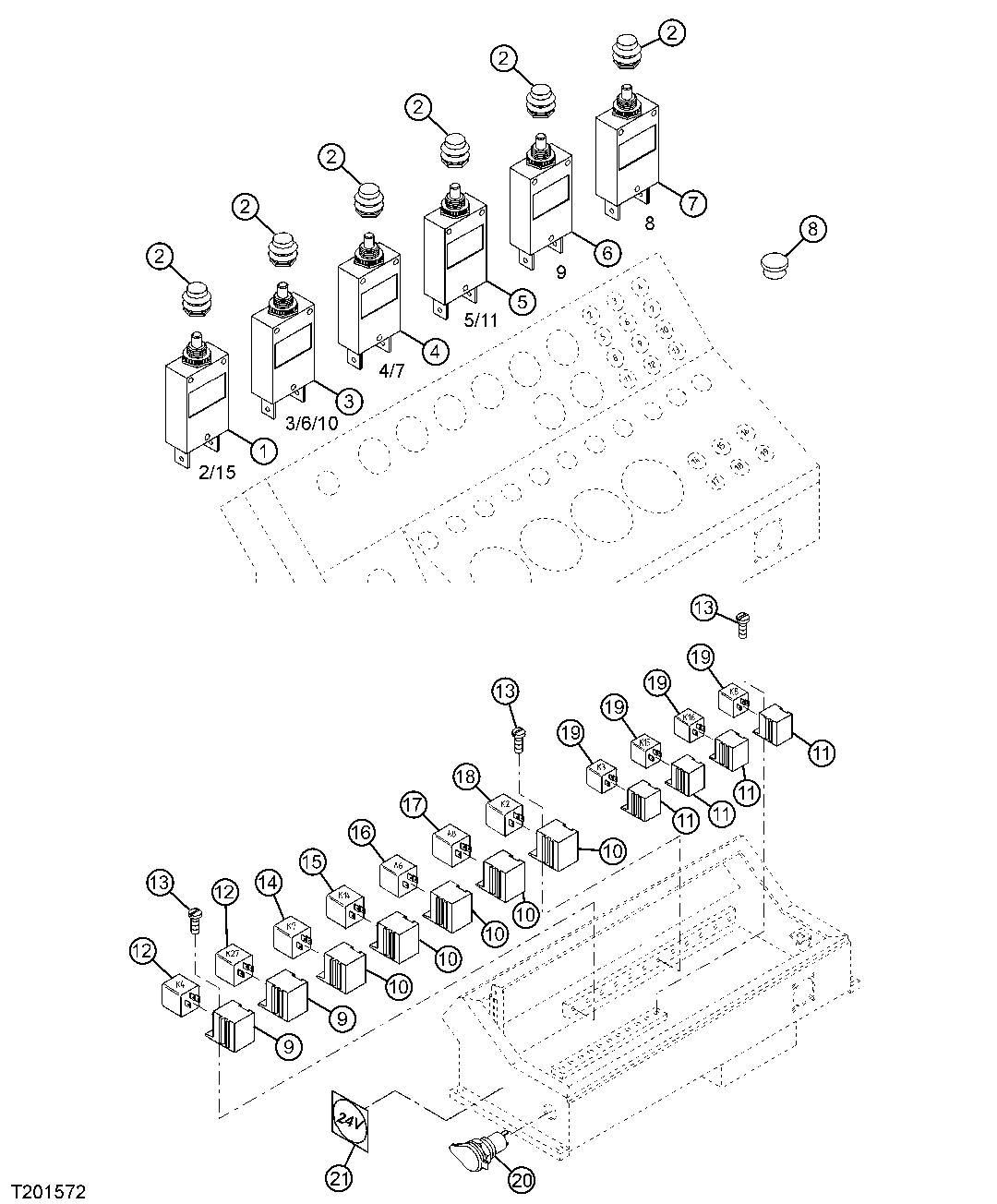

INSTRUMENT PANEL CIRCUIT BREAKERS AND RELAYS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT276980	2	Circuit Breaker	3 AMP. CIRCUIT BREAKER (COLD WEATHER START)
2	AT274404	6	Cap	PROTECTING
3	AT276981	3	Circuit Breaker	5 AMP. CIRCUIT BREAKER (CHARGE INDICATOR, BACKUP ALARM, RADIO AND DOME LIGHT)
3	AT276981	4	Circuit Breaker	5 AMP. CIRCUIT BREAKER (CHARGE INDICATOR, BACKUP ALARM, RADIO AND DOME LIGHT)
4	AT276982	2	Circuit Breaker	8 AMP. CIRCUIT BREAKER (STARTER LOCKOUT)
5	AT276983	2	Circuit Breaker	10 AMP. CIRCUIT BREAKER (ELECTRICAL OUTLET 24 VOLT)
5	AT276988	1	Circuit Breaker	16 AMP. CIRCUIT BREAKER (USED WITH AIR CONDITIONER)
6	AT276984	1	Circuit Breaker	20 AMP. CIRCUIT BREAKER (SHUT OFF DIESEL ENGINE)
6	AT276979	1	Circuit Breaker	25 AMP. CIRCUIT BREAKER (ROOF PANEL)
7	AT276979	1	Circuit Breaker	25 AMP. CIRCUIT BREAKER (ROOF PANEL)
8	AT277017	8	Plug	VENT
9	AT274419	1	Electrical Connector Assy	-
9	AT274419	2	Electrical Connector Assy	-
10	AT274414	5	Electrical Connector Assy	-
11	AT274413	4	Electrical Connector Assy	-
12	-	2	Part 16	( AT274418 NO LONGER AVAILABLE) (FURNISH AT322276) POWER SUPPLY/ENGINE SHUTOFF (K4 AND K27 RELAYS)
13	21M7283	5	Screw	M5 X 8, OVAL HEAD
14	AT274421	1	Relay	BLADE FLOAT (K7 RELAY)
15	AT274422	1	Relay	(DOZER)GLOW PLUG TIMING, (K14 RELAY)
16	AT274420	1	Diode	TIME RELAY , COMBINATION, (A6 COMBINATION DIODE PACK)
17	AT274420	1	Diode	TIME, COMBINATION, (A8 COMBINATION DIODE PACK)
18	AT274470	1	Relay	STARTER CUTOFF (K2 RELAY)
19	AT274439	4	Relay	LOW SPEED INDICATOR/POWER GUARD (K3, K8, K15, AND K16 RELAY)
20	AT274398	1	Cover	BUILT-IN
21	AT322695	1	Label	(SUB FOR AT265612)(24 VOLT)

INSTRUMENT PANEL CIRCUIT BREAKERS AND RELAYS

Нет текстового описания
