HYDROSTATIC SOLENOID MANIFOLD (S.N. 005600-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278259	1	Manifold	-
2	LW7624268	1	Seal Kit	SUB FOR AT265383
2	AT314782	1	Seal Kit	-
3	AT265687	1	Cap	-
3	AT314783	1	Magnet Kit	-
4	AT265373	1	Solenoid Valve Coil	-
4	AT314781	1	Magnet	-
5	AT277590	4	Solenoid Valve	SOLENOID, SUB FOR AT275024, ALSO ORDER (4) 19M9482
5	AT314701	4	Hyd Actuated Control Valve	-
7	AT266055	16	Spacer	M5 X 30
7	19M8280	16	Screw	M5 X 45
8	AT278179	1	Manifold	-
9	AT274517	11	Plug	-
10	AT274314	1	Hydraulic Accumulator	INCLUDES AT305974
10	AT305974	1	Nut	ILLUSTRATED ON ACCUMULATOR
11	AT274604	1	Gasket	-
12	AT300602	1	Plate	-
13	T77613	4	O-Ring	-
14	19M8299	1	Screw	M5 X 16, SUB FOR AT266577
15	XGE10LMEDCF	6	Fitting	SUB FOR AT218623
16	51M7106	1	O-Ring	7.500 X 1.500 mm
16	XEL10LCF	3	Fitting	SUB FOR AT218872 AND LW247242302
17	PMH3805	1	Fitting	SUB FOR AT218846
17	PMH3827	1	Fitting	-
20	XM10LCFX	2	Fitting	SUB FOR AT261739
21	XVKA10CF	2	Fitting	SUB FOR AT274523 AND AT261740
21	51M7106	1	O-Ring	7.500 X 1.500 mm
22	19M7663	3	Cap Screw	M8 X 70, SUB FOR 19M7274
23	LW10289803	3	Washer	SUB FOR 24M7055, THIS APPLICATION
25	XGE12LMEDCF	1	Elec. Connector Accessory	SUB FOR AT274170
26	PMH3075	1	Fitting	SUB FOR AT274648
26	XED10X1X	1	Fitting	-
30	XGE15LMEDCF	1	Elec. Connector Accessory	SUB FOR AT218620
31	XEL15LCF	1	Fitting	SUB FOR AT218875 AND LW472300414
31	51M7109	1	O-Ring	15 X 2 mm
32	PMH3838	1	Fitting	SUB FOR AT218902
32	51M7109	1	O-Ring	15 X 2 mm
38	AT218877	1	Fitting	-
40	AT274945	1	Check Valve	-

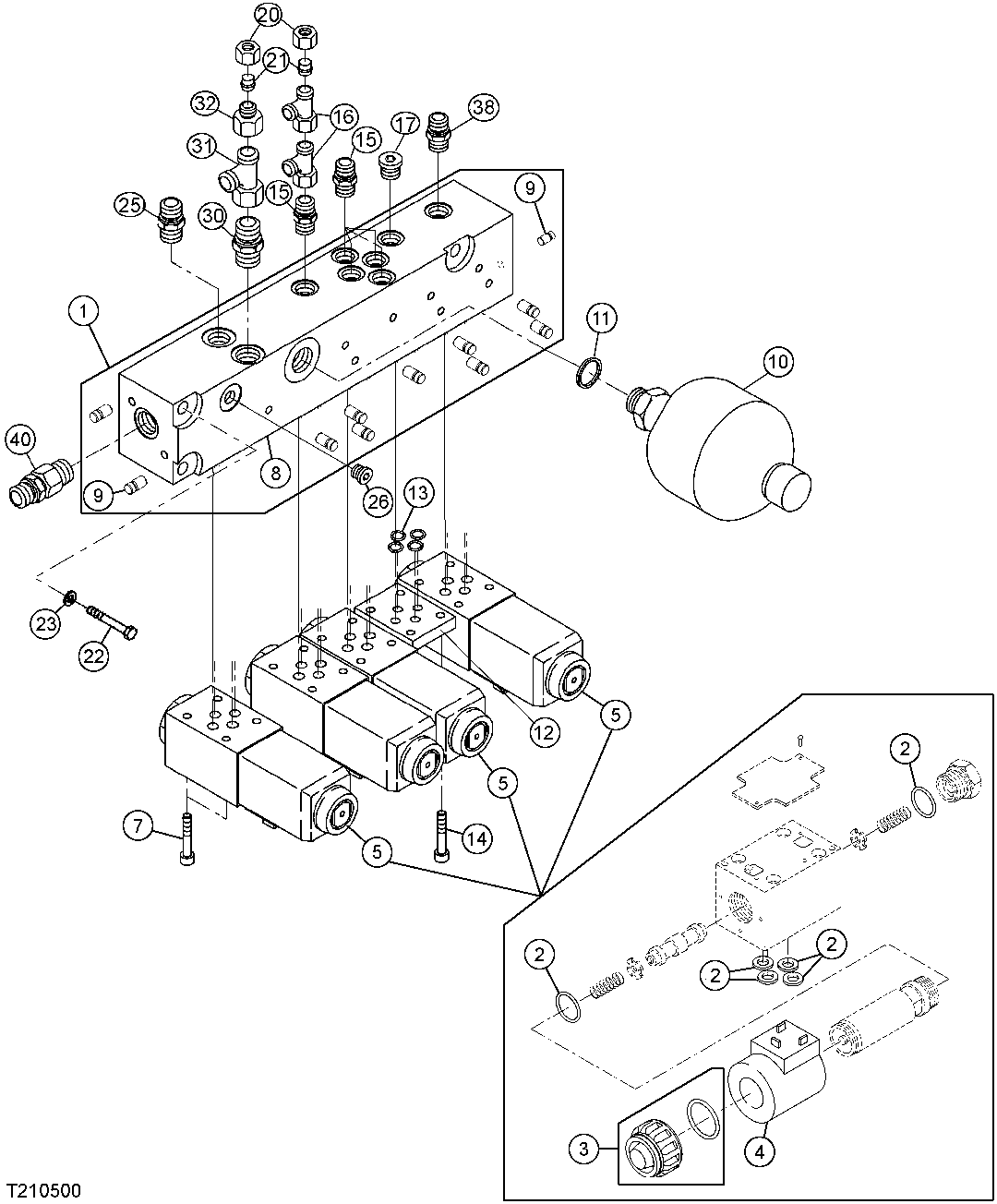

HYDROSTATIC SOLENOID MANIFOLD (S.N. 005600-)
