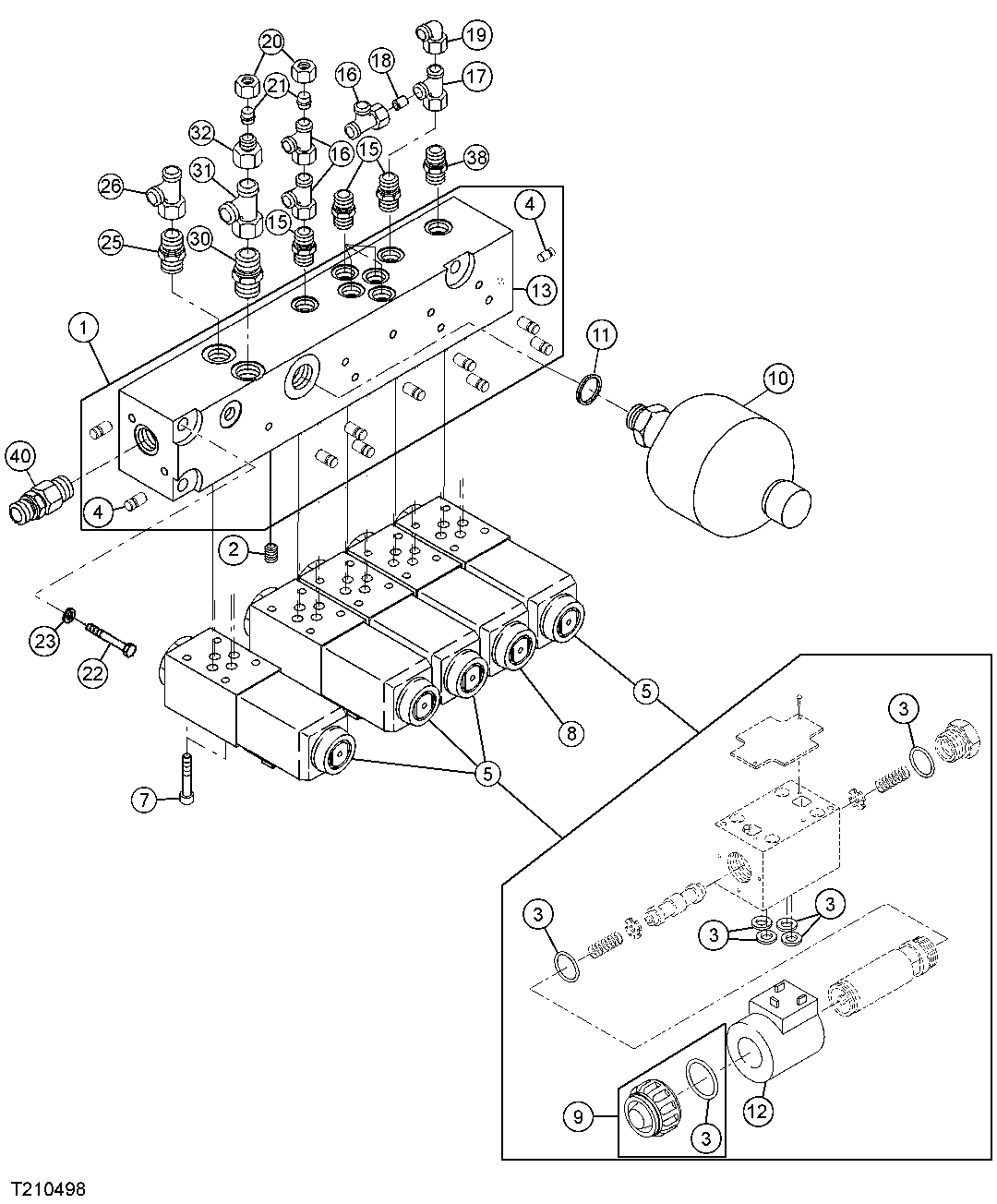

HYDROSTATIC SOLENOID MANIFOLD (S.N.-005599)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278259	1	Manifold	-
2	AT277460	1	Orifice	-
3	LW7624268	1	Seal Kit	SUB FOR AT265383
4	AT274517	11	Plug	-
5	AT277590	4	Solenoid Valve	SOLENOID, ALSO ORDER (4) 19M9482
7	19M8576	20	Screw	M5 X 30, M5 X 30
8	AT277568	1	Hyd Actuated Control Valve	SOLENOID
9	AT265687	1	Cap	-
10	AT274314	1	Hydraulic Accumulator	INCLUDES AT305974
10	AT305974	1	Nut	ILLUSTRATED ON ACCUMULATOR
11	AT274604	1	Gasket	-
12	AT265373	1	Solenoid Valve Coil	-
13	AT278179	1	Manifold	-
15	XGE10LMEDCF	6	Fitting	SUB FOR AT218623
16	XEL10LCF	3	Fitting	SUB FOR AT218872 AND LW247242302
16	51M7106	1	O-Ring	7.500 X 1.500 mm
17	AT278195	1	Fitting	-
18	AT277358	1	Orifice	-
19	51M7106	1	O-Ring	7.500 X 1.500 mm
19	XEW10LOMDCF	1	Adapter Fitting	SUB FOR AT218871
20	XM10LCFX	2	Fitting	SUB FOR AT261739
21	XVKA10CF	2	Fitting	SUB FOR AT274523 AND AT261740
21	51M7106	1	O-Ring	7.500 X 1.500 mm
22	19M7663	3	Cap Screw	M8 X 70, SUB FOR 19M7274
23	LW10289803	3	Washer	SUB FOR 24M7055, THIS APPLICATION
25	XGE12LMEDCF	1	Elec. Connector Accessory	SUB FOR AT274170
26	PMH3075	1	Fitting	SUB FOR AT274648
26	XED10X1X	1	Fitting	-
30	XGE15LMEDCF	1	Elec. Connector Accessory	SUB FOR AT218620
31	XEL15LCF	1	Fitting	SUB FOR AT218875 AND LW472300414
31	51M7109	1	O-Ring	15 X 2 mm
32	PMH3838	1	Fitting	SUB FOR AT218902
32	51M7109	1	O-Ring	15 X 2 mm
38	AT218877	1	Fitting	-
40	AT274945	1	Check Valve	-

HYDROSTATIC SOLENOID MANIFOLD (S.N.-005599)
