HYDROSTATIC PUMP MANIFOLD AND PRESSURE RELIEF VALVES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8300	8	Screw	M8 X 40, M8 X 40
2	AT277603	2	Housing	(CHARGE CHECK VALVE HOUSING)
3	AT277020	4	O-Ring	-
4	LW7380577	2	O-Ring	SUB FOR AT277072
5	AT276907	4	Hyd Actuated Control Valve	CHARGE CHECK
6	AT274752	2	O-Ring	-
7	AT276728	2	Pin	-
8	AT277550	2	Pressure Relief Valve	CHARGE PRESSURE
9	AT277193	4	Hydraulic Pressure Valve	HIGH PRESSURE RELIEF, (DOZER)
9	AT317292	4	Check Valve	HIGH PRESSURE RELIEF (SCRAPER PULLER)
10	AT277039	4	Pipe Plug	(INCLUDES AT320728)
10	AT320728	1	O-Ring	NOT ILLUSTRATED
11	AT276838	1	Socket Head Screw	M16 X 80, (DOZER)
11	AT311763	1	Socket Head Screw	M16 X 80, (SCRAPER PULLER)
12	LW404317901	6	Socket Head Screw	M16 X 90, (SUB FOR AT276839)
13	LW7025168	4	Drain Plug	(SUB FOR AT277272)
14	AT266205	4	Plug	-
15	AT277037	2	Pin	-
16	AT277549	2	Manifold	-
17	AT277033	2	O-Ring	-
18	AT277271	8	Screw	-
19	AT263583	8	O-Ring	(SUB FOR AT277071)
20	AT277143	1	Ring	-
20	AT277142	1	Ring	-
21	AT277270	8	Plate	-
22	AT277269	8	Compression Spring	-
23	AT277268	8	Compression Spring	-
24	AT277267	8	Plate	-
25	AT277141	8	Ring	-
26	AT277140	8	O-Ring	-
27	-	8	Part 31	(SUB FOR AT277258 ) (SUB AT317294)(DOZER)
27	AT317294	8	Valve	(SCRAPER PULLER)
28	AT276816	8	Ball	-
29	LW7024363	2	O-Ring	(SUB FOR AT277011)
30	AT277012	2	Shim	-
31	AT277036	2	Compression Spring	-
32	AT277551	2	Shutter	-

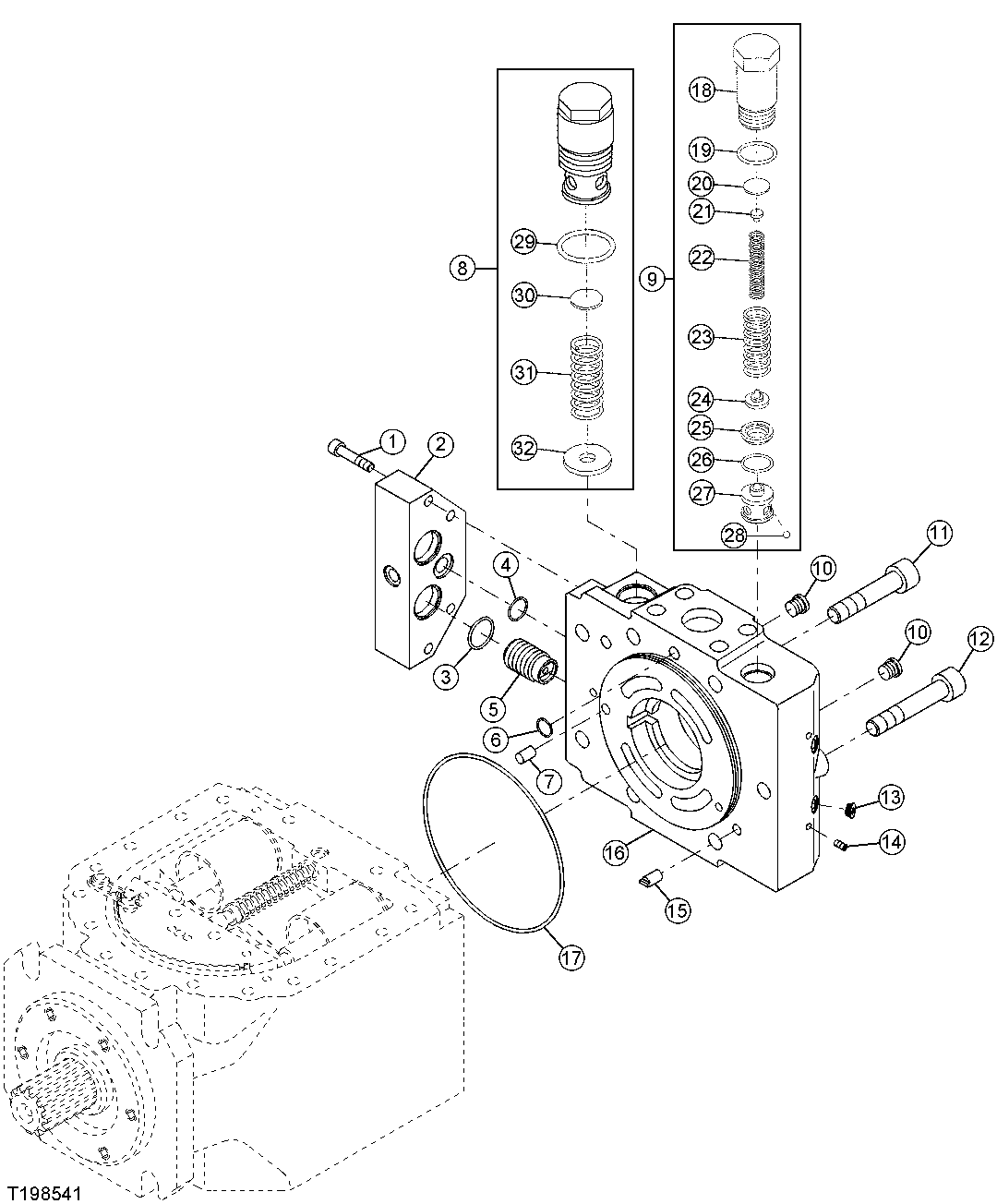

HYDROSTATIC PUMP MANIFOLD AND PRESSURE RELIEF VALVES
