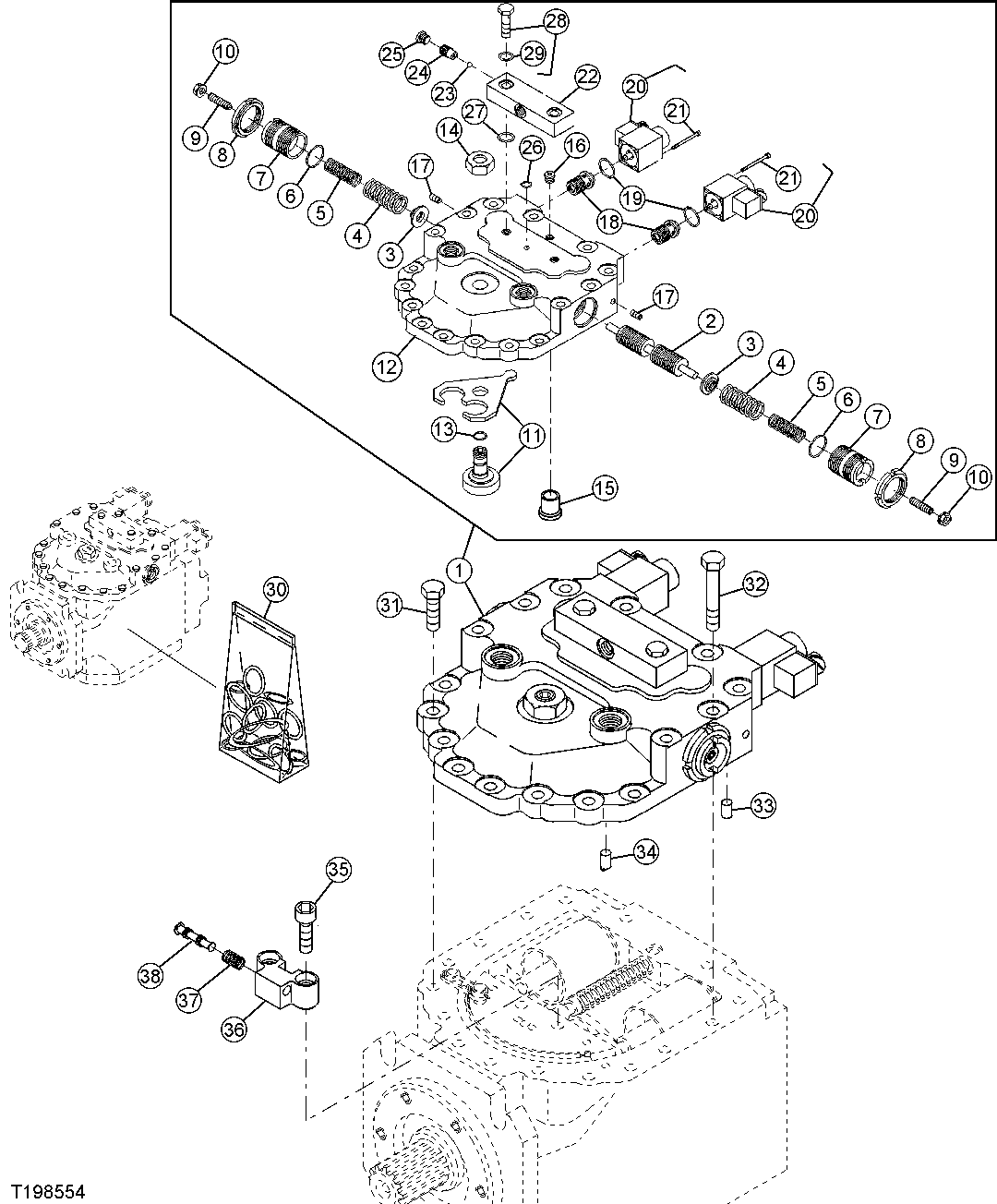

HYDROSTATIC PUMP DISPLACEMENT CONTROL

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	AT277604 NOT AVAILABLE FOR SERVICE, SERVICE WITH COMPONENTS
2	AT276924	2	Piston	-
3	AT277259	2	Seat	SPRING
3	AT277214	2	Seat	SPRING
4	AT277273	4	Compression Spring	-
5	AT277274	4	Compression Spring	-
6	AT274540	4	O-Ring	-
7	AT277275	4	Screw	LOCKING
8	AT277152	4	Nut	SLOTTED
9	AT277164	4	Screw	-
10	AT277165	4	Nut	-
11	AT277276	2	Lever	-
12	AT276923	2	Cover	-
13	AT274543	2	O-Ring	-
14	AT274095	2	Nut	M20
15	AT311696	1	Bushing	-
16	AT277100	2	Pipe Plug	-
17	AT276243	4	Pipe Plug	-
18	AT276294	4	Valve	PRESSURE REGULATING VALVE CARTRIDGE
19	AT274541	4	O-Ring	-
20	AT274930	4	Solenoid	SOLENOID PROPORTIONAL CONTROL
21	LW6002985	8	Electrical Connector Assy	M4 X 55, SUB FOR AT274196
22	AT277605	2	Hyd Actuated Control Valve	SHUTTLE VALVE BLOCK
23	AT276844	2	Hand Operated Valve	-
24	AT277558	2	Valve Seat	-
25	AT277559	2	Screw	-
26	AT274542	2	O-Ring	-
27	AT277560	4	O-Ring	-
28	AT277562	2	Hollow Screw	-
29	AT277561	2	O-Ring	12, 5X1, 6MM
30	AT277563	2	Seal Kit	SET
31	19M7403	16	Cap Screw	M12 X 35
32	19M8088	16	Cap Screw	M12 X 75
33	AT277099	2	Pin	-
34	AT277213	2	Pin Fastener	SUB FOR AT277257
35	19M9714	4	Screw	M12 X 35, M12 X 35, SUB FOR LW404211801 ANDAT276780
36	AT276935	2	Hyd Actuated Control Valve	SERVO
37	AT277166	2	Spring	-
38	AT277042	2	Piston	-

HYDROSTATIC PUMP DISPLACEMENT CONTROL
