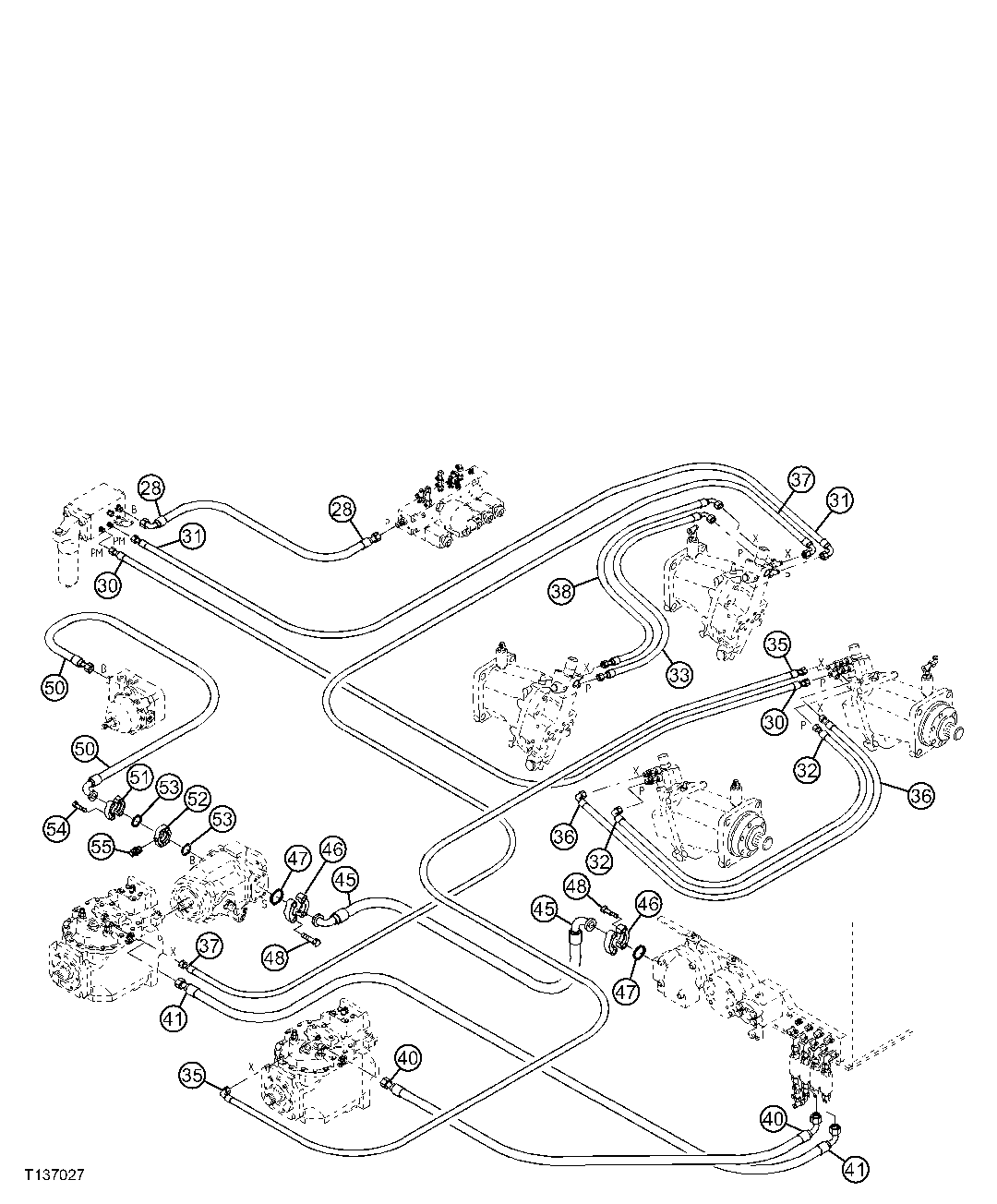

Hydrostatic Hoses (Pilot And Return Lines)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
28	51M7108	2	O-Ring	12 X 2 mm
28	AT277435	1	Hydraulic Hose	Fabricate
30	AT276921	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
31	AT277030	1	Hydraulic Hose	INCLUDES (2) 51M7106
31	51M7106	2	O-Ring	7.500 X 1.500 mm
32	AT277029	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
33	AT277029	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
35	AT277153	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
35	51M7106	2	O-Ring	7.500 X 1.500 mm
36	AT277029	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
37	AT277201	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
37	51M7106	2	O-Ring	7.500 X 1.500 mm
38	AT277029	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
40	LW5604643	1	Hydraulic Hose	Fabricate, SUB FOR AT277427
40	51M7109	2	O-Ring	15 X 2 mm
41	AT275057	1	Hydraulic Hose	SUB FOR AT277443 INCLUDES (2) 51M7109
41	51M7109	2	O-Ring	15 X 2 mm
45	AT277450	1	Hydraulic Hose	Fabricate
45	AT309932	1	Hydraulic Hose	-
45	B3690R	2	O-Ring	-
46	AT274312	4	Flange	-
47	LW10472425	2	O-Ring	SUB FOR LW10290518 AND AT218852
48	19M7662	8	Cap Screw	M10 X 30
50	AT277432	1	Hydraulic Hose	Fabricate, ALSO ORDER 51M7110 AND T59014
50	51M7110	2	O-Ring	16.300 X 2.400 mm
50	T59014	2	O-Ring	-
51	LW10286363	2	Pressed Flanged Housing	SUB FOR AT276919
52	AT277666	1	Flange	-
53	LW10490784	2	O-Ring	SUB FOR LW10290520 AND AT274678
54	19M7383	4	Cap Screw	M10 X 55
55	XGE10LREDCF	1	Fitting	SUB FOR AT218837

Hydrostatic Hoses (Pilot And Return Lines)
