Открытый узел

Hydrostatic Hoses, Hydrostatic Pump To Hydrostatic Motors, Dozers

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T78313	2	O-Ring	-
1	T78393	2	O-Ring	-
1	AT277447	1	Hydraulic Hose	ALSO ORDER T78313 AND T78393
2	AT277446	1	Hydraulic Hose	ALSO ORDER T78313 AND T78393
3	AT277449	1	Hydraulic Hose	ALSO ORDER T78313 AND T78393
3	T78393	2	O-Ring	-
3	T78313	2	O-Ring	-
4	AT277448	1	Hydraulic Hose	ALSO ORDER T78313 AND T78393
4	T78313	2	O-Ring	-
4	T78393	2	O-Ring	-
5	AT277446	1	Hydraulic Hose	ALSO ORDER T78313 AND T78393
6	AT277447	1	Hydraulic Hose	ALSO ORDER T78313 AND T78393
7	AT277448	1	Hydraulic Hose	ALSO ORDER T78313 AND T78393
8	T78313	2	O-Ring	-
8	T78393	2	O-Ring	-
8	AT277449	1	Hydraulic Hose	ALSO ORDER T78313 AND T78393
9	AT326441	16	Flange	SUB FOR AT218518
10	LW10472425	8	O-Ring	SUB FOR LW10290518 AND AT218852
11	19M8423	32	Cap Screw	M14 X 45
12	LW10286360	16	Flange	SUB FOR AT218503, THIS APPLICATION
13	LW10490781	8	O-Ring	SUB FOR LW10290519 AND AT218851
14	19M7493	32	Cap Screw	M12 X 40
20	AT278152	1	Hydraulic Filter	NLA, SEE HYDROSTATIC OIL FILTER PAGE FOR SERVICE PARTS
21	19M8343	3	Cap Screw	M10 X 120
22	24M7466	3	Washer	10.500 X 20 X 2 mm, SUB FOR LW10289795 AND 24M7028, THIS APPLICATION
23	AT277433	1	Hydraulic Hose	Fabricate
23	51M7102	2	O-Ring	20 X 2 mm
24	AT277434	1	Hydraulic Hose	Fabricate
24	51M7102	2	O-Ring	20 X 2 mm

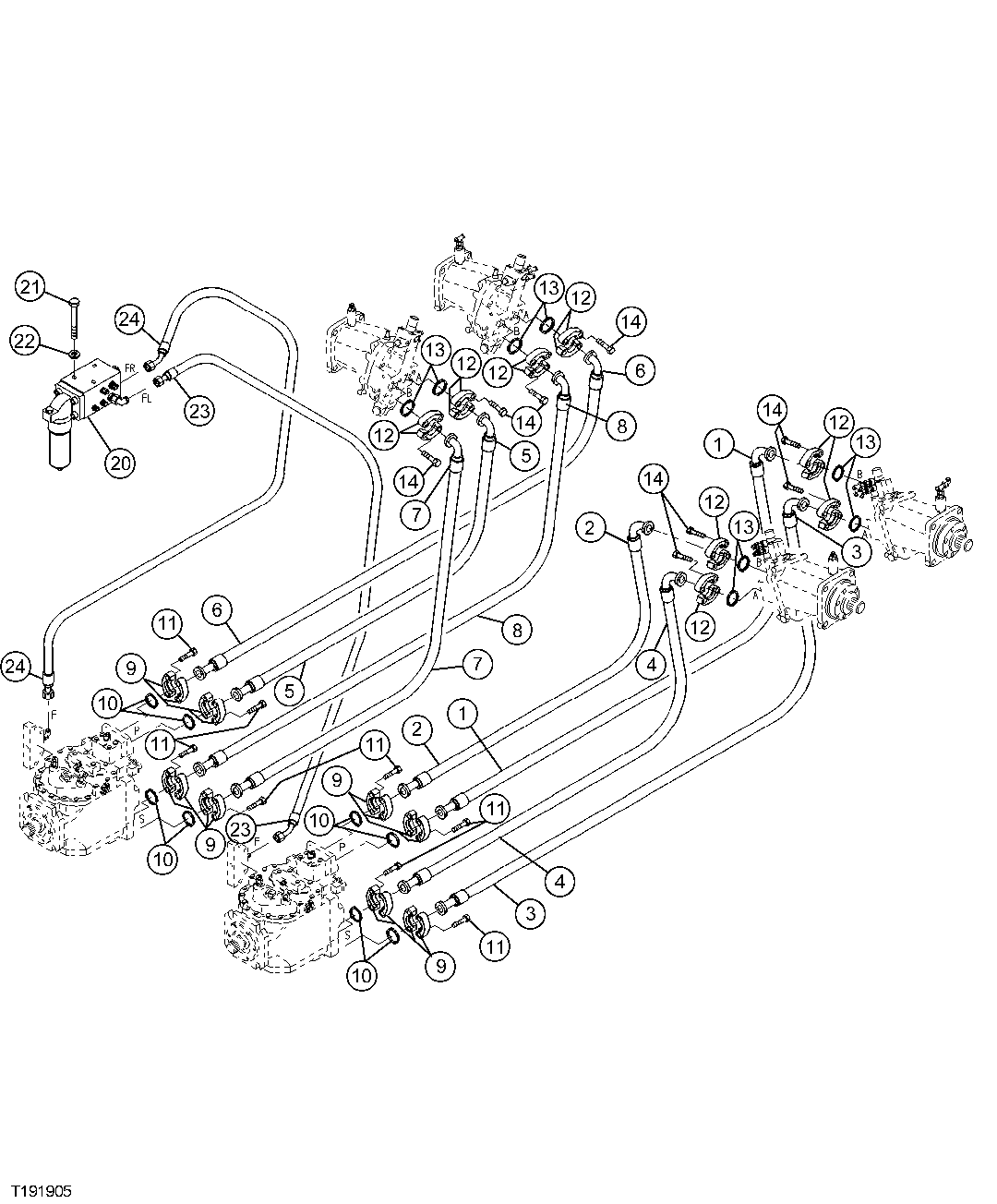

Hydrostatic Hoses, Hydrostatic Pump To Hydrostatic Motors, Dozers

Нет текстового описания
