Hydrostatic Hoses (Hydrostatic Charge Pump To Cold Start Valve)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT277419	1	Hydraulic Hose	Fabricate
4	AT300548	1	Hydraulic Hose	Fabricate, SUB FOR AT277437 INCLUDES (2) 51M7112
5	AT277418	1	Hydraulic Hose	Fabricate
5	51M7102	2	O-Ring	20 X 2 mm
6	AT277417	1	Hydraulic Hose	Fabricate
6	51M7112	2	O-Ring	26 X 2 mm
8	-	1	Part 7	SEE COLD START CHARGE PRESSURE RELIEF VALVE PAGE FOR SERVICE PARTS, AT278148 NOT AVAILABLE FOR SERVICE
9	19M7997	2	Cap Screw	M8 X 110
10	LW10289803	2	Washer	SUB FOR 24M7055, THIS APPLICATION
11	AT277442	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7112
13	19M8504	4	Cap Screw	M8 X 80
16	LW10289803	2	Washer	SUB FOR 24M7055, THIS APPLICATION
18	19M7662	8	Cap Screw	M10 X 30
19	AT274312	4	Flange	-
20	LW10472425	2	O-Ring	SUB FOR LW10290518 AND AT218852
21	AT277451	1	Hydraulic Hose	Fabricate, ALSO ORDER U10289 AND 51M7114
22	AT277452	1	Hydraulic Hose	Fabricate, ALSO ORDER U10289 AND 51M7114
23	-	1	Part 18	SEE COLD START VALVE PAGE FOR SERVICE PARTS AT278193 NOT AVAILABLE FOR SERVICE

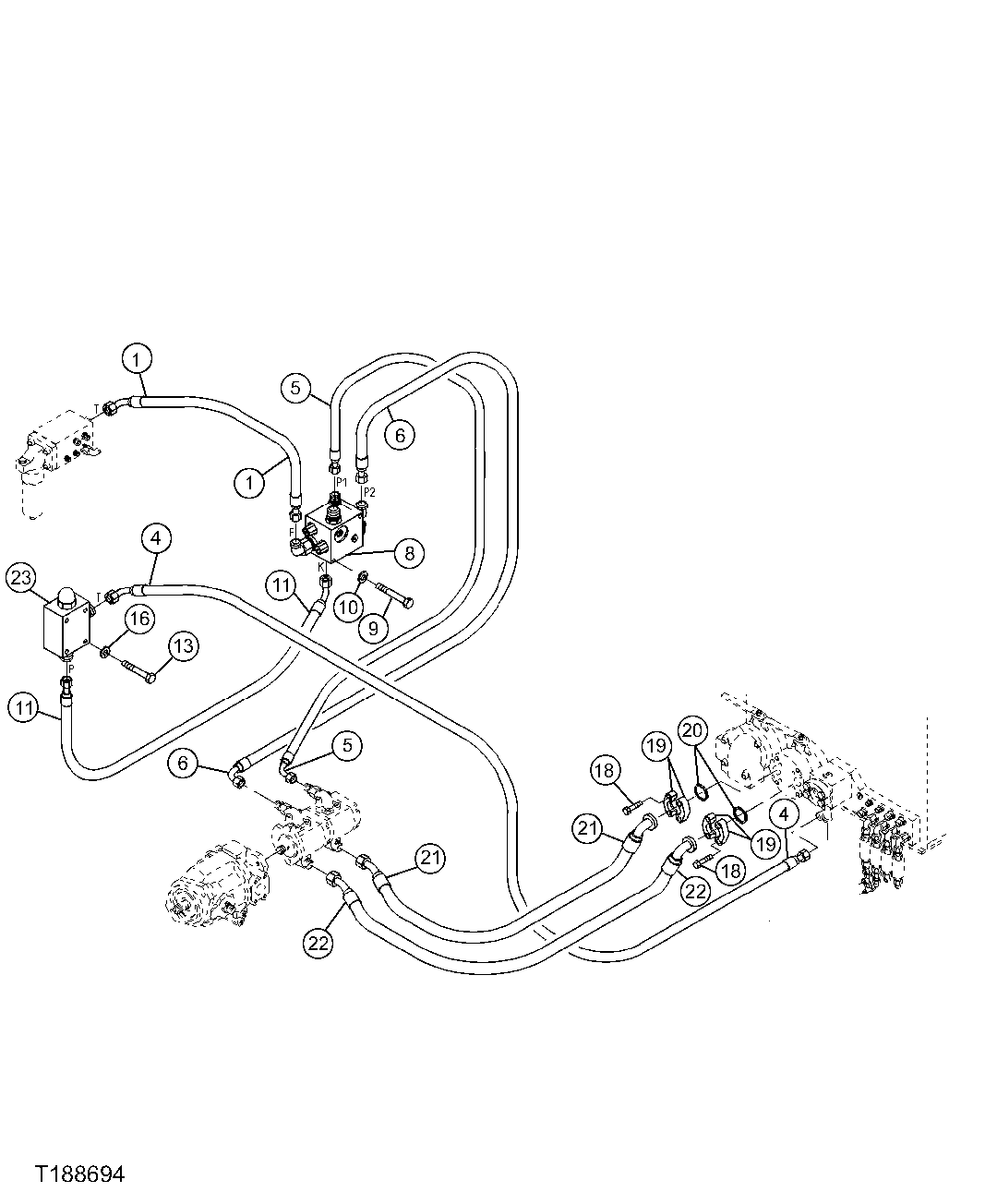

Hydrostatic Hoses (Hydrostatic Charge Pump To Cold Start Valve)

Нет текстового описания
