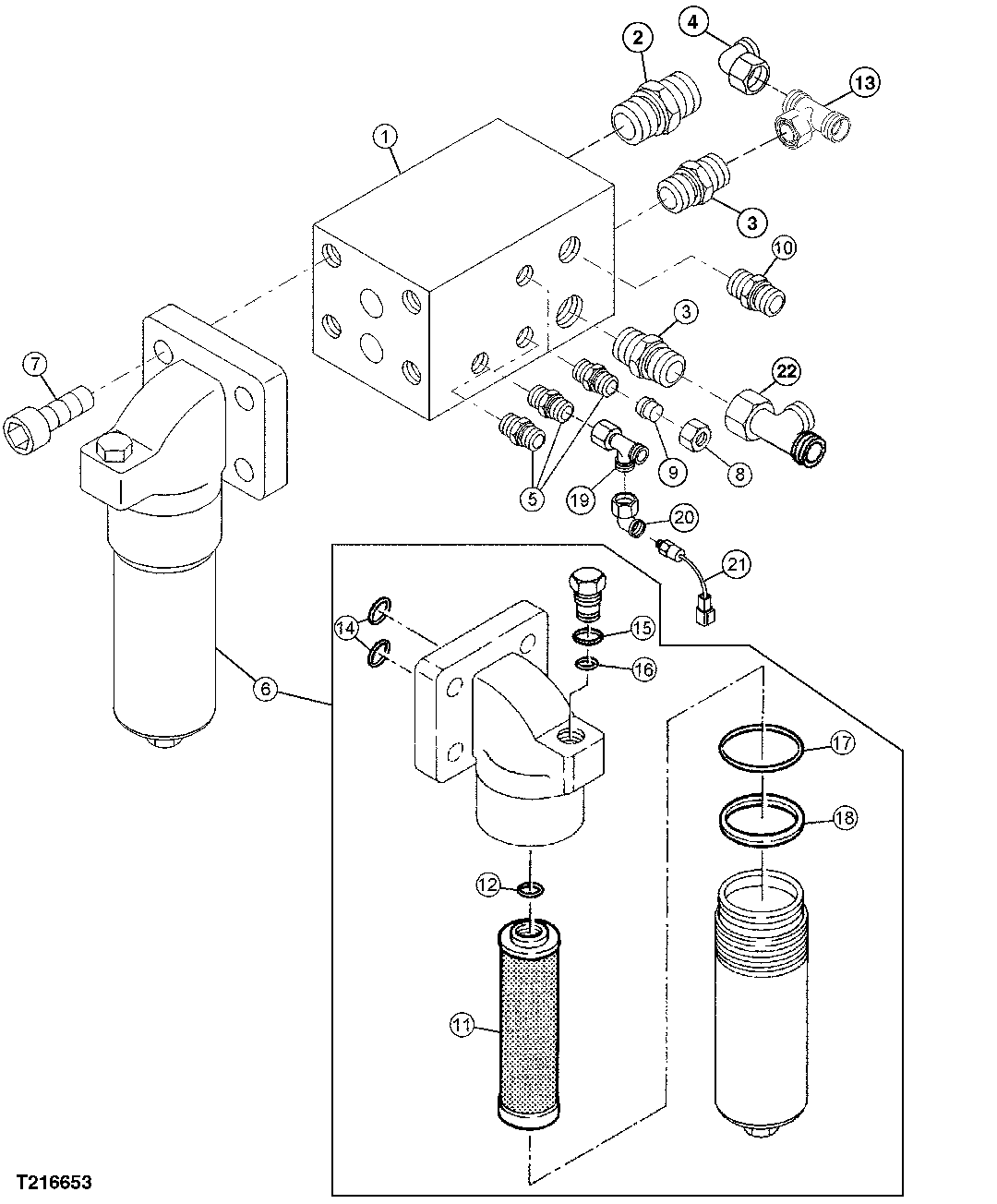

HYDROSTATIC FILTER AND FILTER MANIFOLD (SCRAPER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278149	1	Manifold	-
2	AT218622	1	Fitting	-
3	XGE22LMEDCF	2	Fitting	SUB FOR AT218841
4	XEW22LCF	1	Fitting	SUB FOR LW247126202
4	51M7102	1	O-Ring	20 X 2 mm
5	XGE10LMEDCF	3	Fitting	SUB FOR AT218623
6	AT277298	1	Filter	-
7	19M8746	4	Screw	M16 X 40, M16 X 40
8	XM10LCFX	1	Fitting	SUB FOR AT261739
9	XVKA10CF	1	Fitting	SUB FOR AT274523 AND AT261740
9	51M7106	1	O-Ring	7.500 X 1.500 mm
10	XGE15LMEDCF	1	Elec. Connector Accessory	SUB FOR AT218620
11	AT320755	1	Filter Element	(HYDROSTATIC FILTER), (SUB FOR AT277031)
12	AT277035	1	O-Ring	-
13	XET22LCF	1	Fitting	SUB FOR AT218882 AND LW482430614
13	51M7102	1	O-Ring	20 X 2 mm
14	AT277060	2	O-Ring	-
15	AT277069	1	O-Ring	-
16	AT277027	1	O-Ring	-
17	AT277062	1	O-Ring	-
18	AT277301	1	Back-Up Ring	-
19	XEL10LCF	1	Fitting	SUB FOR AT218872 AND LW247242302
19	51M7106	1	O-Ring	7.500 X 1.500 mm
20	AT265713	1	Elbow Fitting	-
21	AT275694	1	Pressure Switch	-
22	XEL22LCF	1	Fitting	SUB FOR AT218883 AND LW247138602
22	51M7102	1	O-Ring	20 X 2 mm

HYDROSTATIC FILTER AND FILTER MANIFOLD (SCRAPER)
