HYDRAULIC OIL RESERVOIR AND HYDRAULIC OIL RETURN FILTER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278050	1	Hydraulic Reservoir	-
2	AT307325	1	Cover	(SUB FOR AT300673)
4	AT277536	1	Filter Element	-
5	AT261787	2	O-Ring	-
6	AT274007	1	Snap Ring	-
7	19M7872	4	Cap Screw	M12 X 25
8	AT275113	1	Flow Control Hyd. Valve	(HYDRAULIC OIL RETURN FILTER RESTRICTION BYPASS VALVE)
9	AT274111	1	Snap Ring	-
10	AT277660	1	Cover	-
11	AT274570	1	O-Ring	-
12	19M7881	4	Screw	M8 X 20
13	AT274854	1	Plate	(PRESSURE)
15	AT275250	1	Fitting	-
16	AT274601	1	Seal	-
17	AT274766	1	Bleed Valve	-
18	AT218824	1	Sealing Washer	-
19	AT309931	1	Filter Element	(HYDRAULIC OIL RETURN FILTER), (SUB FOR AT277535)
20	AT275257	1	Cover	-
20	AT275257	2	Cover	-
21	AT274832	1	O-Ring	-
21	AT274832	2	O-Ring	-
22	19M7761	6	Screw	M8 X 16
22	19M7761	12	Screw	M8 X 16
23	AT277564	1	Cover	-
25	AT318518	1	Fitting Plug	(SUB FOR AT277389)
30	AT311209	2	Sight Plug	(SUB FOR AT274328)
32	AT274665	1	Drain Plug	-
32	AT274600	1	Seal	(SUB FOR AT277283, THIS APPLICATION)(NOT ILLUSTRATED)
32	AT277283	1	O-Ring	(NOT ILLUSTRATED)
33	AT274600	1	Seal	-

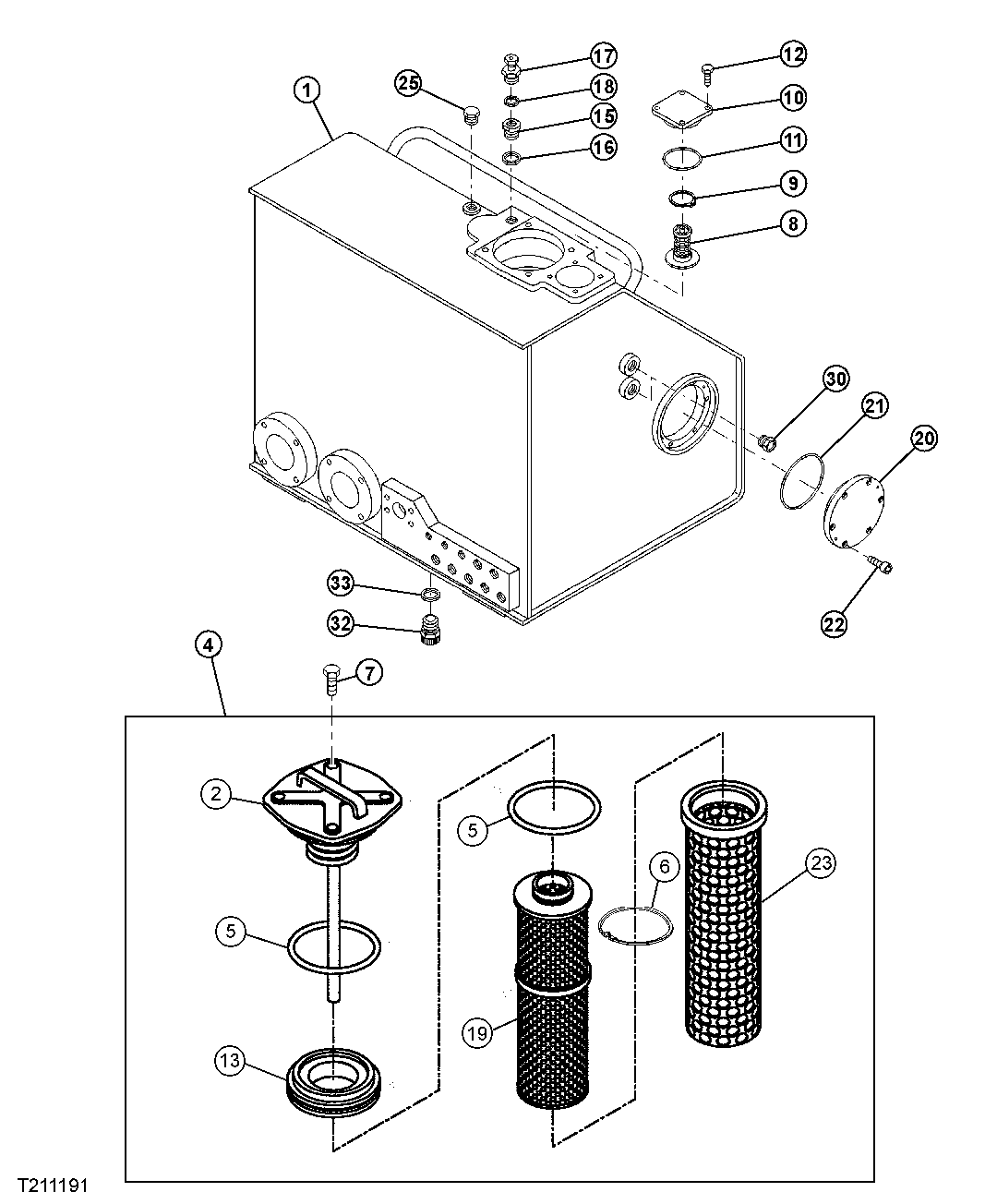

HYDRAULIC OIL RESERVOIR AND HYDRAULIC OIL RETURN FILTER
