HYDRAULIC AND HYDROSTATIC CASE DRAIN FILTERS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	AT277364	1	Filter Element	(HYDROSTATIC AND HYDRAULIC FILTER CASE DRAIN FILTER-ELEMENT ONLY)
3	AT277186	1	Fitting	-
4	AT274649	1	O-Ring	-
5	AT274816	1	O-Ring	-
6	AT274815	1	O-Ring	-
7	AT277185	1	Housing	-
8	AT274649	1	O-Ring	-
9	AT274815	1	O-Ring	-
62	XGAI18LMCF	4	Fitting	SUB FOR AT277144
64	51M7109	1	O-Ring	15 X 2 mm
64	PMH3840	1	Fitting	SUB FOR AT277093
65	XEW18LOMDCF	4	Adapter Fitting	SUB FOR AT274831 AND LW247108302
65	51M7109	1	O-Ring	15 X 2 mm
67	XEGE18LMEDCF	4	Fitting	SUB FOR AT276363
67	51M7109	1	O-Ring	15 X 2 mm
68	AT278144	1	Manifold	(SUCTION)
69	AT218622	1	Fitting	-
70	AT218622	1	Fitting	-
71	19M7914	4	Cap Screw	M12 X 120
72	LW10286362	4	Flange	(SUB FOR AT276918)
73	LW10490787	2	O-Ring	(SUB FOR LW10290517 AND AT277090)
74	51M7109	1	O-Ring	15 X 2 mm
74	XEW18LOMDCF	1	Adapter Fitting	SUB FOR AT274831 AND LW247108302
75	51M7109	1	O-Ring	15 X 2 mm
75	XEL18LCF	1	Fitting	SUB FOR AT218874 AND LW247128502
76	51M7109	1	O-Ring	15 X 2 mm
76	PMH3841	1	Fitting	SUB FOR AT277091
61A	LW247117702	2	Elbow Fitting	SUB FOR AT274796 AND LW247117702
61B	LW247117702	1	Elbow Fitting	SUB FOR AT274796 AND LW247117702
63A	XEL12LCF	2	Fitting	SUB FOR AT274794 AND LW247128602
63A	51M7107	1	O-Ring	9 X 1.500 mm
63B	XEL12LCF	1	Fitting	SUB FOR AT274794 AND LW247128602
63B	51M7107	1	O-Ring	9 X 1.500 mm
66A	-	4	Part 20	(HYDRAULIC AND HYDROSTATIC CASE DRAIN FILTER) ( AT276934 NO LONGER AVAILABLE) (SERVICE WITH COMPONENTS OR AT300689)
66B	AT300689	4	Filter Element	(HYDRAULIC AND HYDROSTATIC CASE DRAIN FILTER)

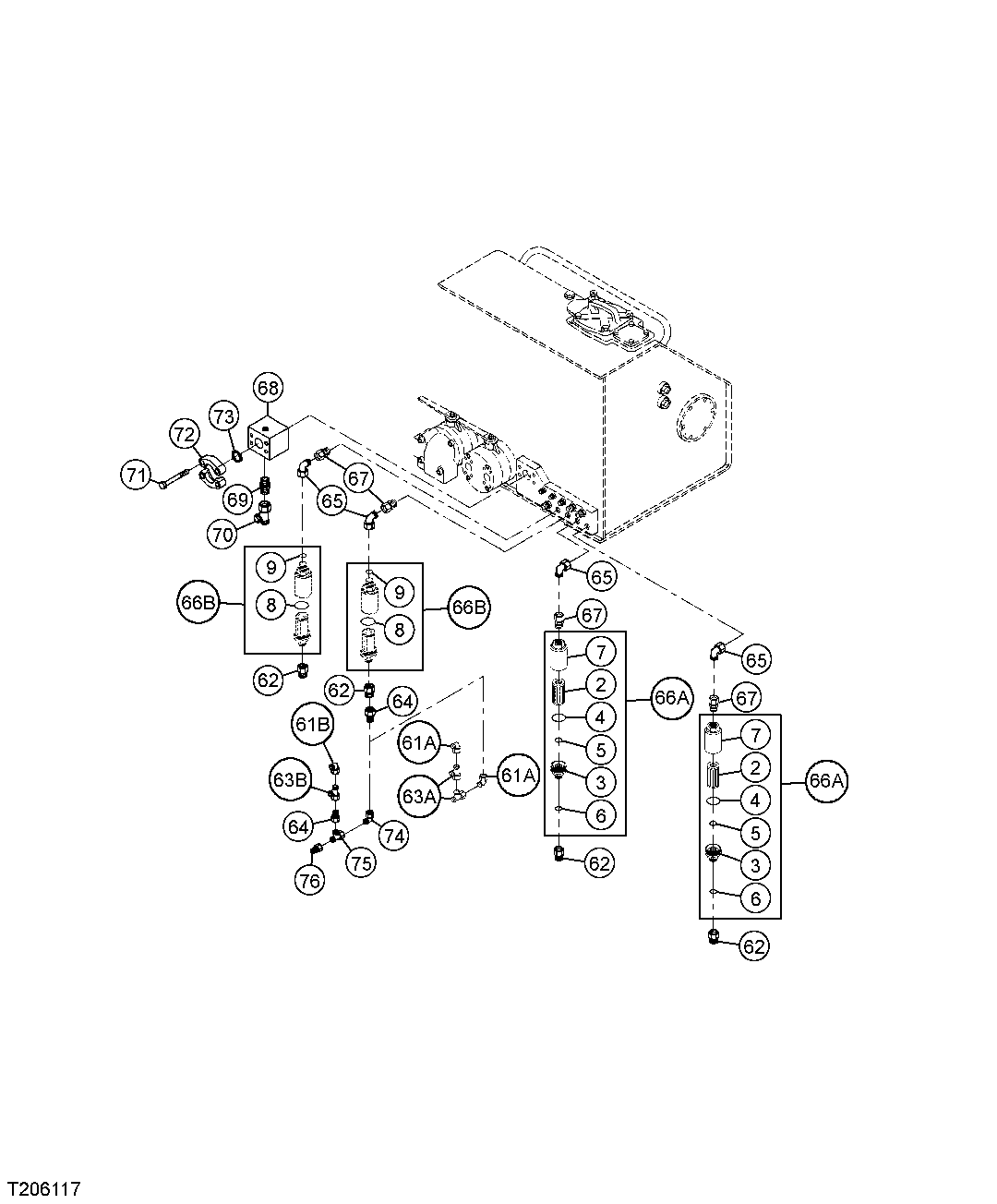

HYDRAULIC AND HYDROSTATIC CASE DRAIN FILTERS

Нет текстового описания
