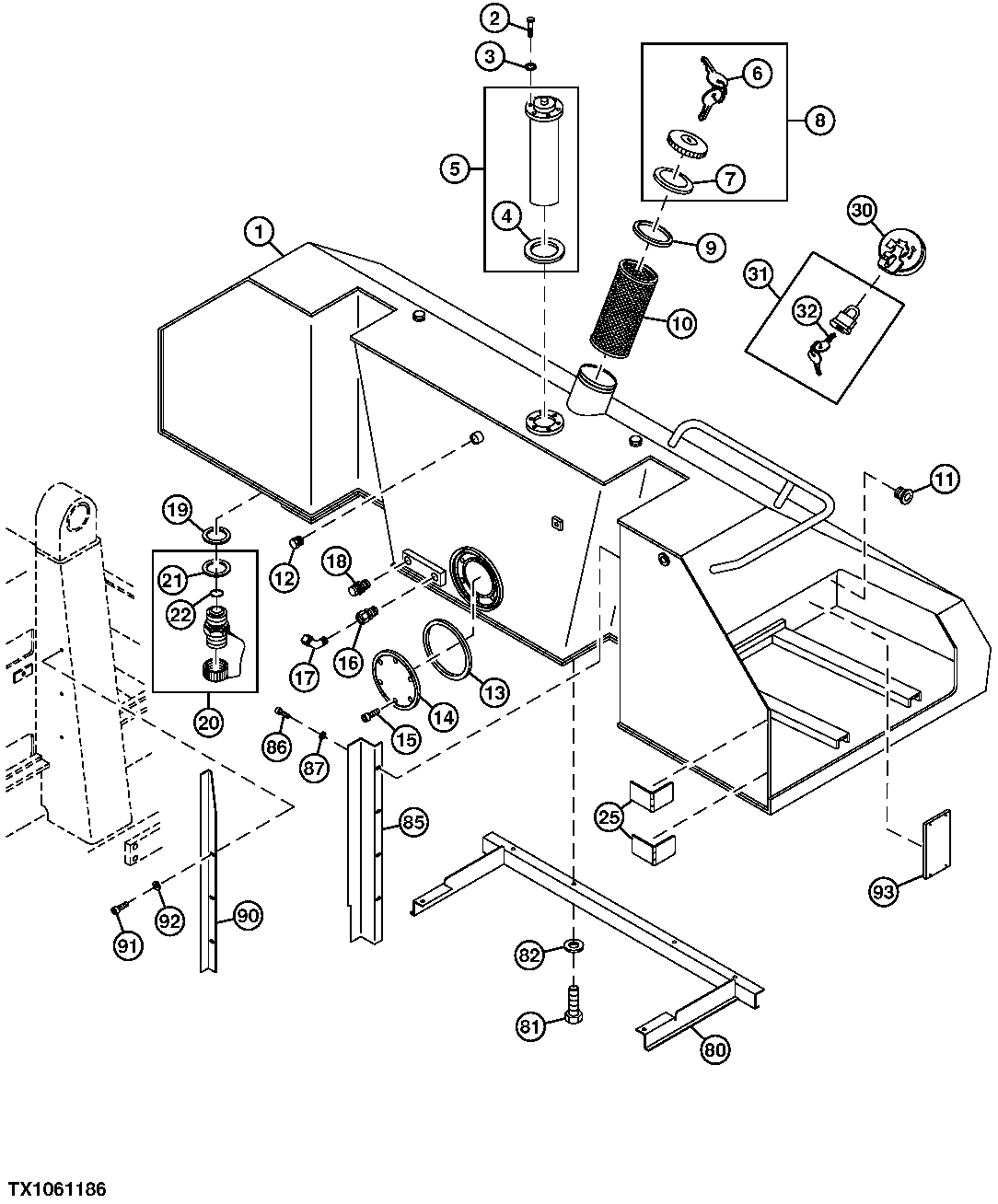

FUEL TANK, CAP, STRAINER AND FUEL GAUGE SENDER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278217	1	Fuel Tank	(ALSO ORDER AT312725)
2	19M7923	6	Cap Screw	M6 X 12
3	LW10289802	6	Washer	(SUB FOR 24M7088, THIS APPLICATION)
4	AT274494	1	Gasket	-
5	AT274829	1	Sensor	FUEL LEVEL
6	AT274672	1	Key	-
7	AT274596	1	Gasket	-
8	AT263617	1	Cap	SUB FOR AT277086
9	AT275233	1	Gasket	-
10	LW10296919	1	Strainer	SUB FOR AT275291 OR AT300545
11	PMH3085	1	Fitting	SUB FOR AT274552 AND LW7362698
11	PMH3831	1	Fitting	-
12	X1/4HP-S	1	Fitting Plug	(SUB FOR AT276199)
13	AT274832	1	O-Ring	-
14	AT275257	1	Cover	-
15	19M7761	6	Screw	M8 X 16
16	XEGE15LMEDCF	1	Fitting	SUB FOR AT277640
16	51M7109	1	O-Ring	15 X 2 mm
17	51M7109	1	O-Ring	15 X 2 mm
17	XEW15LCF	1	Fitting	SUB FOR AT218893
18	XGE10LMEDCF	1	Fitting	SUB FOR AT218623
19	AT274600	1	Seal	M26 X 31
20	AT274665	1	Drain Plug	-
21	AT274600	1	Seal	-
22	AT277283	1	O-Ring	-
25	LW7401289	2	Hinge	-
30	LW10304640	1	Tank Kit	(ALSO ORDER (3) M80352)(RETRO FIT)
31	LW10443841	1	Lock	-
32	LW10443842	1	Key	-
80	AT305971	1	Support	-
81	19M7881	6	Screw	M8 X 20, SUB FOR 19M7139
82	24H1621	6	Washer	11/32" X 1" X 0.220"
85	AT305972	1	Cover	-
86	19M8618	4	Screw	M6 X 12
87	24M7054	4	Washer	6.400 X 12 X 1.600 mm
90	AT305973	1	Cover	-
91	19M8618	3	Screw	M6 X 12
92	24M7054	3	Washer	6.400 X 12 X 1.600 mm
93	LW9412214	1	Plate	-

FUEL TANK, CAP, STRAINER AND FUEL GAUGE SENDER
