Final Drive Complete With Hoses And Sprocket

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7107	2	O-Ring	9 X 1.500 mm
1	AT277526	1	Hydraulic Hose	Fabricate
2	AT277527	1	Hydraulic Hose	Fabricate
2	51M7107	2	O-Ring	9 X 1.500 mm
3	AT278254	1	Reservoir	FINAL DRIVE DUO-CONE SEAL OIL RESERVOIR
4	XGE15LMEDCF	2	Elec. Connector Accessory	SUB FOR AT218620
5	PMH3588	2	Fitting	SUB FOR AT277154
6	LW11690316	1	Cap	SUB FOR AT274764
7	AT311209	1	Sight Plug	SUB FOR AT274328
8	19M7881	4	Screw	M8 X 20
9	LW10289803	8	Washer	SUB FOR 24M7055, THIS APPLICATION
10	14M7166	4	Lock Nut	M8
11	AT274355	1	Sensor	INCLUDES AT274539 SPEED SENSOR
11	AT274539	1	O-Ring	NOT ILLUSTRATED INCLUDED WITH AT274355
12	XGE12LMEDCF	1	Elec. Connector Accessory	SUB FOR AT274170
13	AT277292	1	Adapter Fitting	-
14	AT274338	1	Sensor	FINAL DRIVE OIL LEVEL SENSOR
15	R44302	15	Tie Band	SUB FOR AT218613
16	AT277528	1	Hydraulic Hose	Fabricate
16	51M7108	2	O-Ring	12 X 2 mm
17	AT277529	1	Hydraulic Hose	Fabricate
17	51M7108	2	O-Ring	12 X 2 mm
18	AT277896	1	Drive	NLA ORDER AT321548COMPONENTS ON ANOTHER PAGE
18	AT321548	1	Drive Reman	REMAN FOR AT277896COMPONENTS ON ANOTHER PAGE
19	AT302437	2	Sprocket Segments	THIS IS A COMPLETE SPROCKET IT CONTAINS FIVE SEGMENTS
19	AT316055	2	Sprocket Segments	SUB FOR AT303091)(THIS IS A RECESSED SPROCKET COMPLETE IT CONTAINS FIVE SEGMENTS
20	AT276932	24	Bolt	-
21	AT276933	24	Nut	-
22	LW10488309	13	Socket Head Screw	SUB FOR 19M8249
23	LW10286435	16	Cap Screw	SUB FOR 19M7903
24	24M7559	21	Washer	25 X 44 X 4 mm, SUB FOR AT275997
..	AT312549	1	Electrical Repair Kit	SPEED SENSOR REPAIR KIT FOR WIRING HARNESS AT302389 AND SPEED SENSOR AT274355NOT ILLUSTRATED

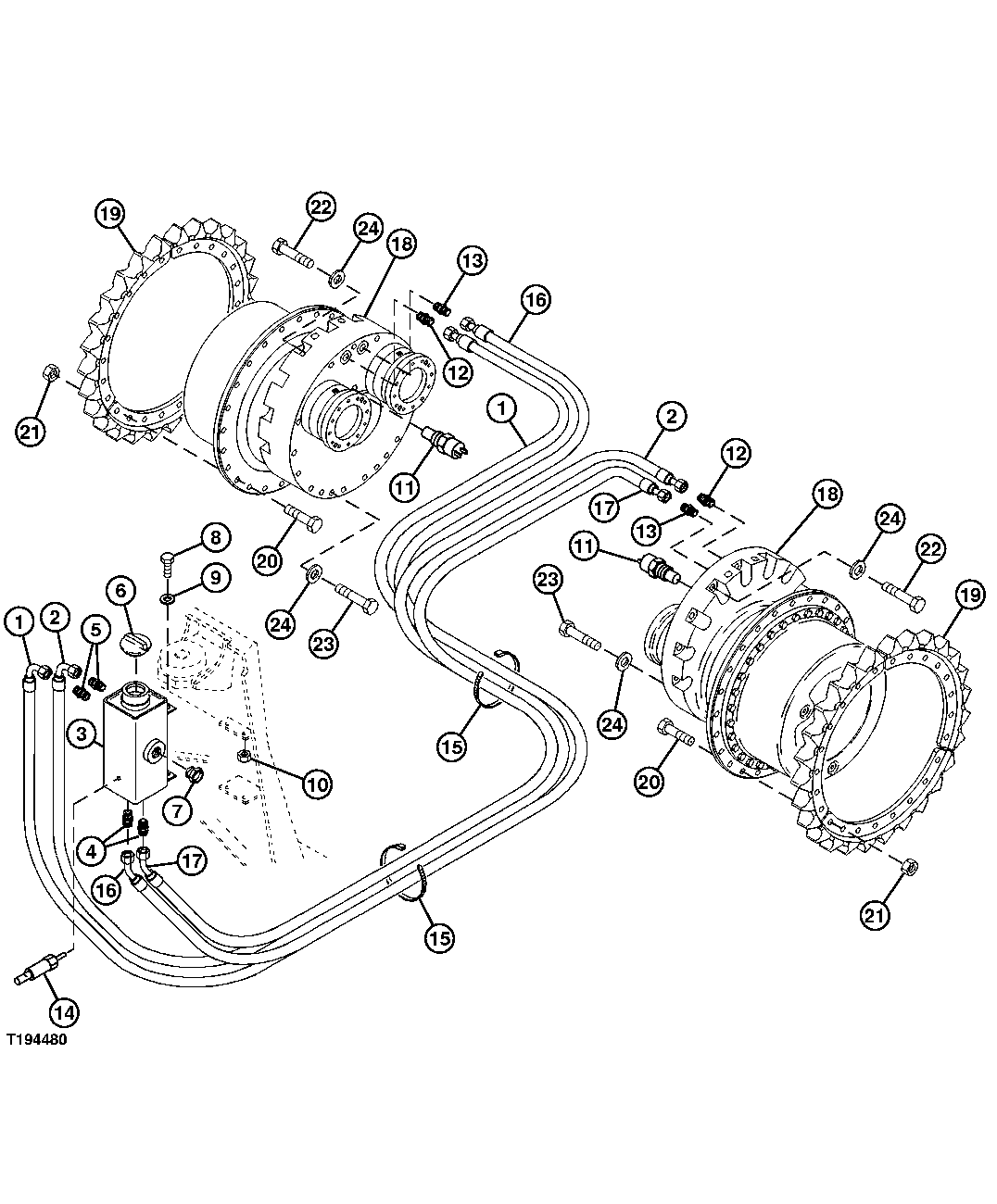

Final Drive Complete With Hoses And Sprocket
