Engine Fuel Water Separator, Bracket, Fuel Hoses And Fuel Shut-Off Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT276304	1	Fuel Filter	COMPONENTS ON ANOTHER PAGE
2	19M7660	2	Screw	M8 X 20
3	LW10289803	2	Washer	SUB FOR 24M7055, THIS APPLICATION
4	AT278082	1	Bracket	-
5	19M8011	2	Cap Screw	M12 X 30, SUB FOR 19M7285
6	24M7240	2	Washer	13 X 25 X 3 mm
7	-	1	Part 7	MAKE FROM LW9812359 SUB FOR AT277147CTL 0.27M
8	AT276034	1	Hose Clamp	-
9	XEGE15LMEDCF	1	Fitting	SUB FOR AT277640
9	51M7109	1	O-Ring	15 X 2 mm
10	XEW15LCF	1	Fitting	SUB FOR AT218893
10	51M7109	1	O-Ring	15 X 2 mm
11	LW10471436	1	Ball Cock Valve	SUB FOR AT277377
12	XGE15LMEDCF	1	Elec. Connector Accessory	SUB FOR AT218620
13	XEW15LCF	1	Fitting	SUB FOR AT218893
13	51M7109	1	O-Ring	15 X 2 mm
14	AT277663	1	Fitting	-
15	AT274247	1	Seal	-
16	AT278112	1	Hydraulic Hose	-
16	51M7108	2	O-Ring	12 X 2 mm
17	LW9812386	1	Hose Guard	SUB FOR AT300145
18	AT274674	1	Clamp	-
19	19M7932	1	Cap Screw	M8 X 16, SUB FOR 19M7162
20	LW10289803	1	Washer	SUB FOR 24M7055, THIS APPLICATION
21	19M7407	1	Cap Screw	M8 X 25, SUB FOR 19M7163
22	LW10289803	2	Washer	SUB FOR 24M7055, THIS APPLICATION
23	14M7273	1	Nut	M8

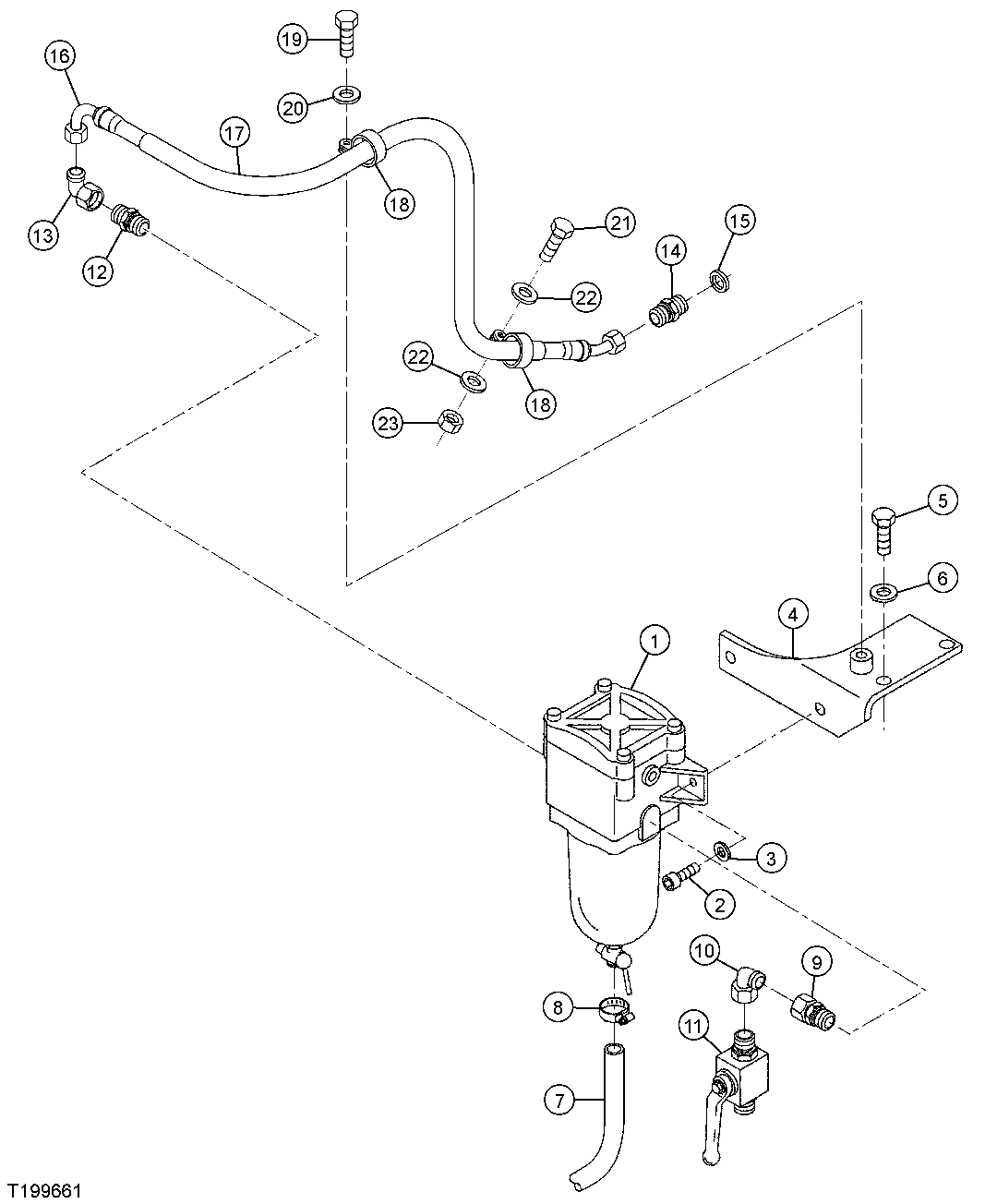

Engine Fuel Water Separator, Bracket, Fuel Hoses And Fuel Shut-Off Valve

Нет текстового описания
