ENGINE FRONT COVER, FRONT COVER GASKET AND ENGINE OIL PRESSURE REGULATING VALVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SERVICE WITH COMPONENTS)
2	AT278310	1	Cover	-
3	AT277738	1	Gasket	-
4	AT274733	4	O-Ring	-
5	AT277809	1	Bolt	-
6	AT275352	2	Spacer	-
8	AT276869	5	Socket Head Screw	M10 X 110
9	AT266609	3	Plug	-
10	PMH3080	1	Fitting	SUB FOR AT261789
10	PMH3829	1	Fitting	-
11	AT260902	3	Ring	-
12	AT274018	1	Seal	-
13	19M8412	2	Screw	M10 X 55
14	PMH3079	3	Fitting	SUB FOR AT274534
14	PMH3828	1	Fitting	-
15	AT274491	2	Hand Operated Valve	-
16	AT277056	3	Seal	-
17	AT276062	2	Pipe Plug	M38 X 1.5
18	AT276179	2	Seal	-
19	AT276889	6	Socket Head Screw	M10 X 85
21	AT277832	1	Line	REDUCING STUB PIPE
22	AT277080	1	Pipe Plug	-
23	AT218825	2	Sealing Washer	-
24	PMH3085	1	Fitting	SUB FOR AT274552 AND LW7362698
24	PMH3831	1	Fitting	-
25	AT277112	1	O-Ring	-
26	14M7260	1	Nut	M16
27	AT277766	1	Washer	-
28	AT277767	1	Screw	-
29	AT277116	1	O-Ring	-
30	AT275316	1	Compression Spring	-
31	AT275305	1	Piston	-
32	AT277749	1	Valve Seat	-
33	AT277110	1	O-Ring	-
34	19M7938	1	Cap Screw	M10 X 20
35	AT277764	1	Cover	-
36	AT277733	1	O-Ring	-
37	AT277734	1	O-Ring	-

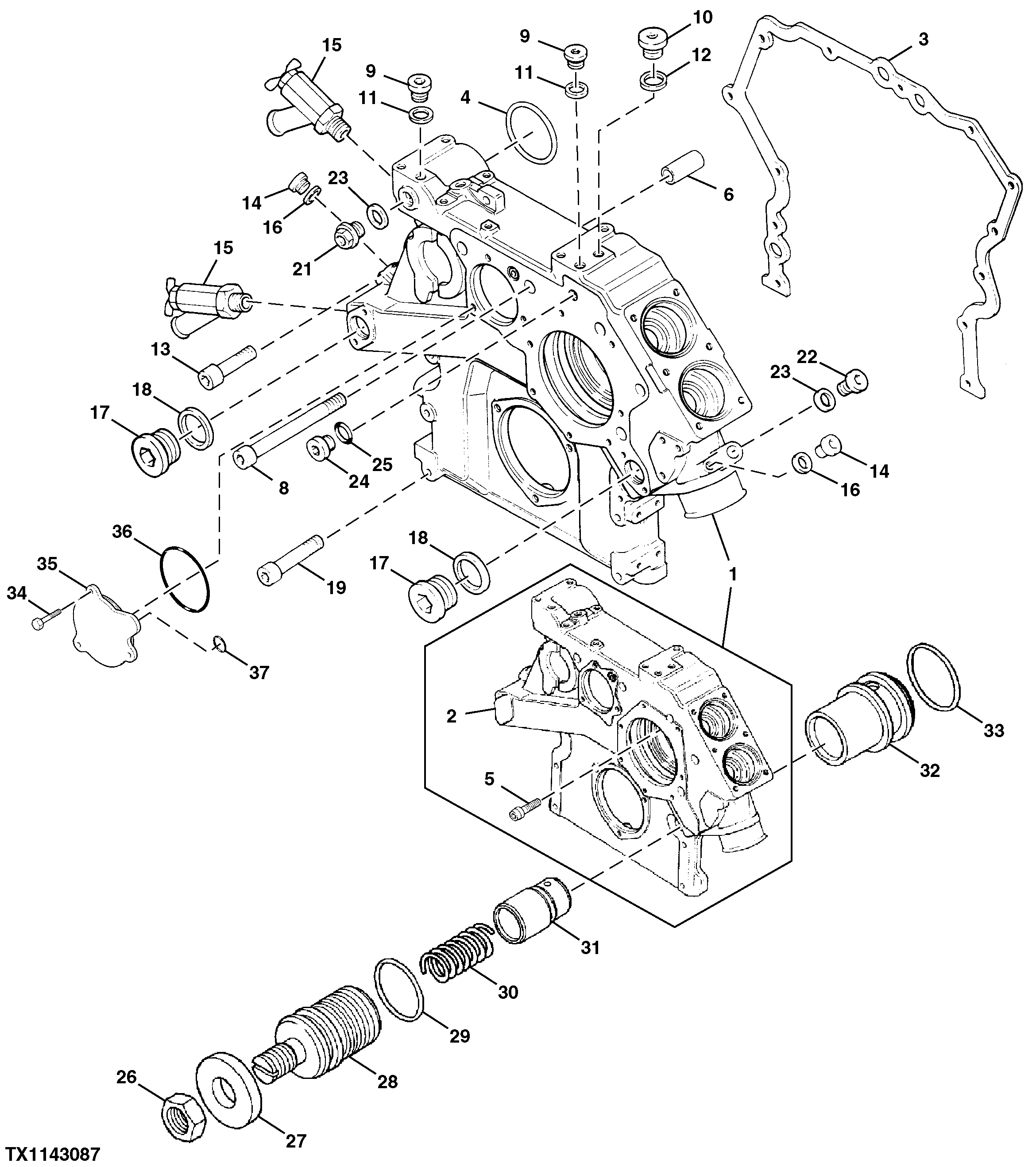

ENGINE FRONT COVER, FRONT COVER GASKET AND ENGINE OIL PRESSURE REGULATING VALVE
