ENGINE CYLINDER BLOCK AND MAIN BEARING CAPS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(SERVICE WITH COMPONENTS), (SUB FOR AT266567)
1	-	1	Part 1	(SERVICE WITH COMPONENTS), (SUB FOR AT266556)
2	-	1	Part 3	(NOT AVAILABLE FOR SERVICE)
3	AT276892	3	Plug	-
4	AT276883	4	Plug	-
5	AT276882	3	Plug	-
8	AT311716	1	Self-Locking Screw	-
9	AT277774	1	Tube	-
10	PMH3276	2	Fitting	SUB FOR AT274631
10	XED33X2X	1	Fitting	-
11	AT274601	3	Seal	-
12	PMH3083	2	Fitting	SUB FOR AT250332
12	PMH3830	1	Fitting	-
13	AT218824	2	Sealing Washer	-
14	PMH3079	2	Fitting	SUB FOR AT274534
14	PMH3828	1	Fitting	-
15	AT277056	2	Seal	-
16	AT274067	15	Pipe Plug	-
17	AT260902	15	Ring	-
20	AT276884	12	Spring Pin	M21 X 18
21	AT277751	1	Cover	-
22	AT277750	1	Gasket	-
23	19M7881	3	Screw	M8 X 20, (SUB FOR 19M7139)
24	AT274027	1	Spring Pin	-
25	AT277755	1	Nozzle	-
26	AT275317	2	Orifice	-
27	AT274027	1	Spring Pin	-
28	AT277756	1	Nozzle	-
29	-	4	Part 29	(NOT SERVICED BY LEIBHERR) (MACHINED WITH ENGINE BLOCK, ORDER NEW BLOCK)
30	AT277714	8	Bolt	-
31	AT277743	8	Bolt	-
32	AT277818	2	Bushing	-
33	AT277817	2	Bushing	-
34	-	1	Part 34	(KIT) ( AT277770 NOT AVAILABLE FOR SERVICE) (SERVICE WITH AT277810)
34	-	1	Part 35	(KIT) ( AT300402 NOT AVAILABLE FOR SERVICE) (SERVICE WITH AT266545)
35	AT277810	1	Cylinder Block	(KIT)
35	AT266545	1	Cylinder Block	(KIT)

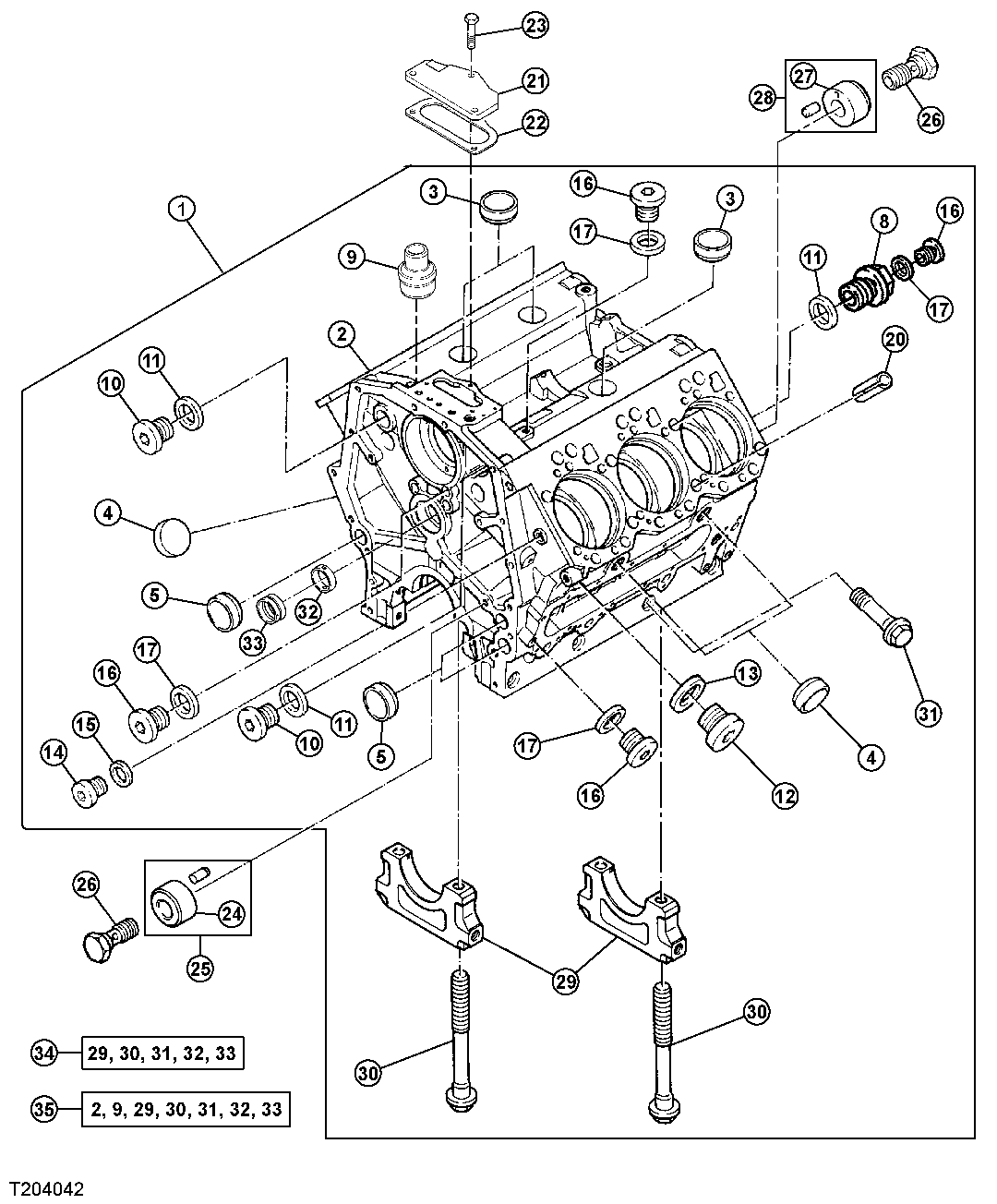

ENGINE CYLINDER BLOCK AND MAIN BEARING CAPS
