Engine Compartment Front Doors, Side Shields And Covers

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
5	AT277684	1	Bracket	-
6	AT277078	1	Bushing	-
7	11M7059	1	Cotter Pin	3.200 X 20 mm
8	24M7466	1	Washer	10.500 X 20 X 2 mm, SUB FOR LW10289795
21	AT316588	1	Sheet	WITH SCRAPER PACKAGE
27	19M7396	8	Cap Screw	M16 X 45
28	24H1367	8	Washer	21/32" X 1-1/4" X 1/4"
29	LW10306199	1	Isolator	SUB FOR AT274559 AND AT266600 AND LW7006993(CUT TO LENGTH 1.8M FROM 8.5M)
31	AT278250	2	Angle	-
32	19M7662	4	Cap Screw	M10 X 30
33	24M7213	4	Washer	10.500 X 25 X 4 mm
34	AT277379	2	Latch	-
35	19M7923	8	Cap Screw	M6 X 12
36	LW10289802	8	Washer	SUB FOR 24M7088
37	AT277380	2	Latch	-
38	19M7932	4	Cap Screw	M8 X 16
39	AT316588	1	Sheet	SCRAPER ARRANGEMENT
40	AT266553	1	Door	FRONT LEFT
40	AT278146	1	Door	FRONT LEFT
41	AT266554	1	Door	FRONT RIGHT
41	-	1	Part 27	SUB AT266554 SUB FOR AT278147(FRONT RIGHT)
42	AT278150	2	Angle	-
43	19M7396	8	Cap Screw	M16 X 45
44	24H1367	8	Washer	21/32" X 1-1/4" X 1/4"
45	AT278070	2	Plate	-
46	AT278151	2	Plate	-
47	19M7493	8	Cap Screw	M12 X 40
48	24H1272	8	Washer	9/16" X 1-1/4" X 1/4"
49	14M7328	8	Lock Nut	M16
50	AT278197	2	Plate	CONNECTING
53	AT303187	2	Hinge	-
26A	AT278138	1	Door	(LEFT SIDE)
26B	-	1	Part 7	SUB AT303185 SUB FOR AT302372
26B	AT303185	1	Door	WITH WASTEHANDLER OR WOODCHIP PACKAGE
30A	AT278139	1	Door	(RIGHT SIDE)
30B	-	1	Part 13	SUB AT303186 SUB FOR AT302373
30B	AT303186	1	Door	WITH WASTEHANDLER OR WOODCHIP PACKAGE
40A	AT321243	1	Hinge	Not Illustrated, ENGINE ACCESS DOOR HINGE

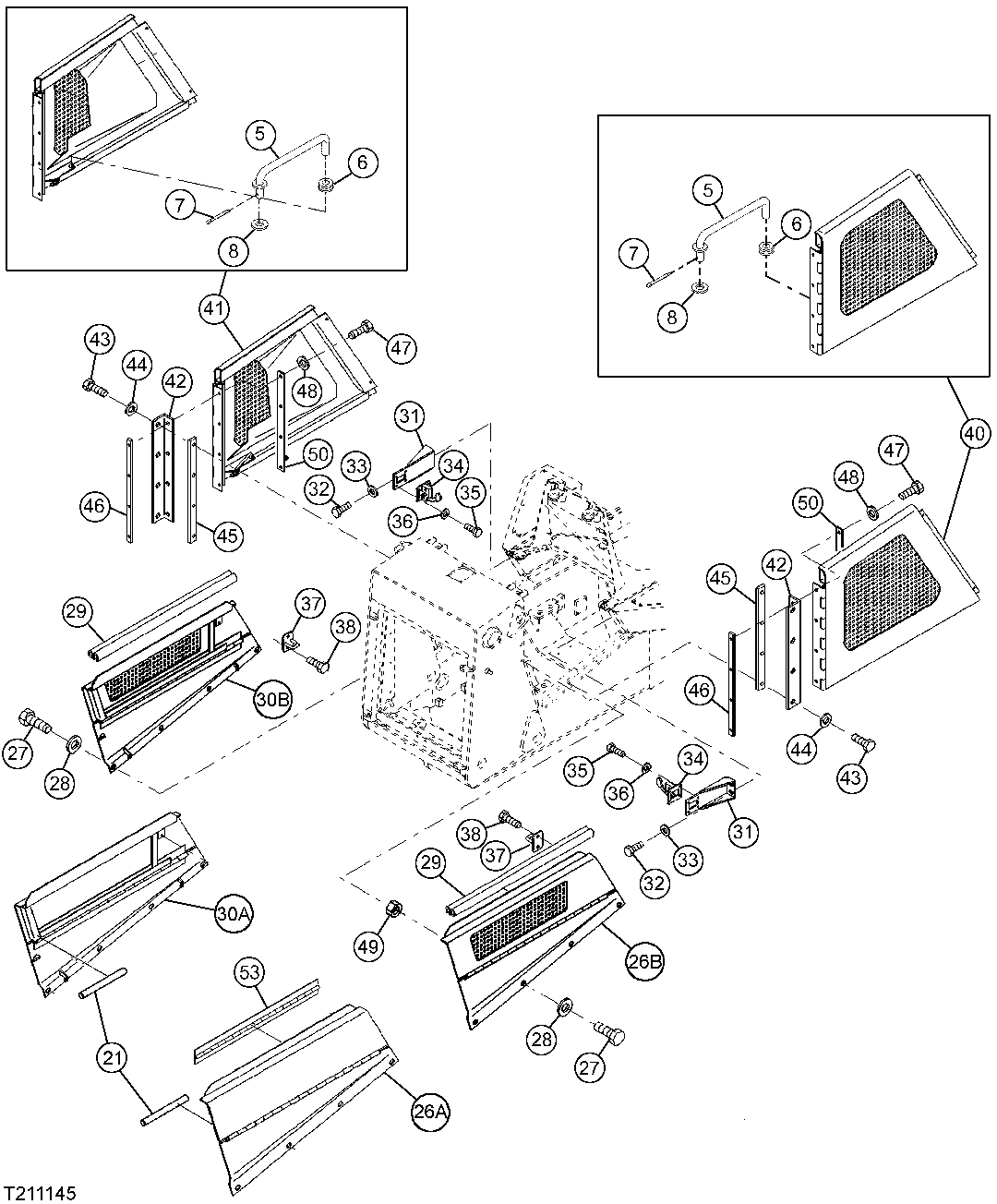

Engine Compartment Front Doors, Side Shields And Covers
