Engine Compartment Back Doors, Hood And Hood Support

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT274672	1	Key	-
2	AT274687	1	Lock	-
3	AT274862	6	Rivet	-
5	AT322284	1	Cover	(USED WITH WOODCHIP PACKAGE ONLY) (FOR UNITS WITH OPTIMAX AIR INTAKE PRECLEANER)
6	19M7932	7	Cap Screw	M8 X 16, SUB FOR 19M7162 USE WITH AT322284
7	LW10289803	7	Washer	USE WITH AT322284 SUB FOR 24M7055
51	LW10306199	1	Isolator	SUB FOR AT274559 AND AT266600 AND LW7006993(CUT TO LENGTH 1.4M FROM 8.5M)
52	LW10306364	1	Bulk Hose	SUB FOR AT274997 AND AT266603(CUT TO LENGTH 1.1M FROM 1.96M)
55	AT278153	1	Door	BACK LH
55	AT266555	1	Door	-
56	AT277686	2	Strip	-
57	19M8011	8	Cap Screw	M12 X 30
60	AT266552	1	Door	-
60	AT278154	1	Door	BACK RH
65	AT278140	1	Hood	-
67	19M7884	4	Cap Screw	M16 X 110
68	24H1367	8	Washer	21/32" X 1-1/4" X 1/4"
69	AT276365	4	Washer	-
70	AT277009	4	Plug	-
71	14M7328	4	Lock Nut	M16
75	AT277459	2	Absorber	-
76	AT277461	4	Ball Joint	-
77	AT276811	2	Pin Fastener	(10 X 35 X 30.5)
78	24M7466	4	Washer	10.500 X 20 X 2 mm, SUB FOR LW10289795
79	11M7059	4	Cotter Pin	3.200 X 20 mm
80	AT303316	1	Cover	(USED WITH COAL OR WOODCHIP PACKAGE)
81	19M7932	5	Cap Screw	M8 X 16, SUB FOR 19M7162 USE WITH AT303316
82	LW10289803	5	Washer	USE WITH AT303316 SUB FOR 24M7055
4A	AT264903	2	Plug	-
4B	LW9409437	1	Plate	-

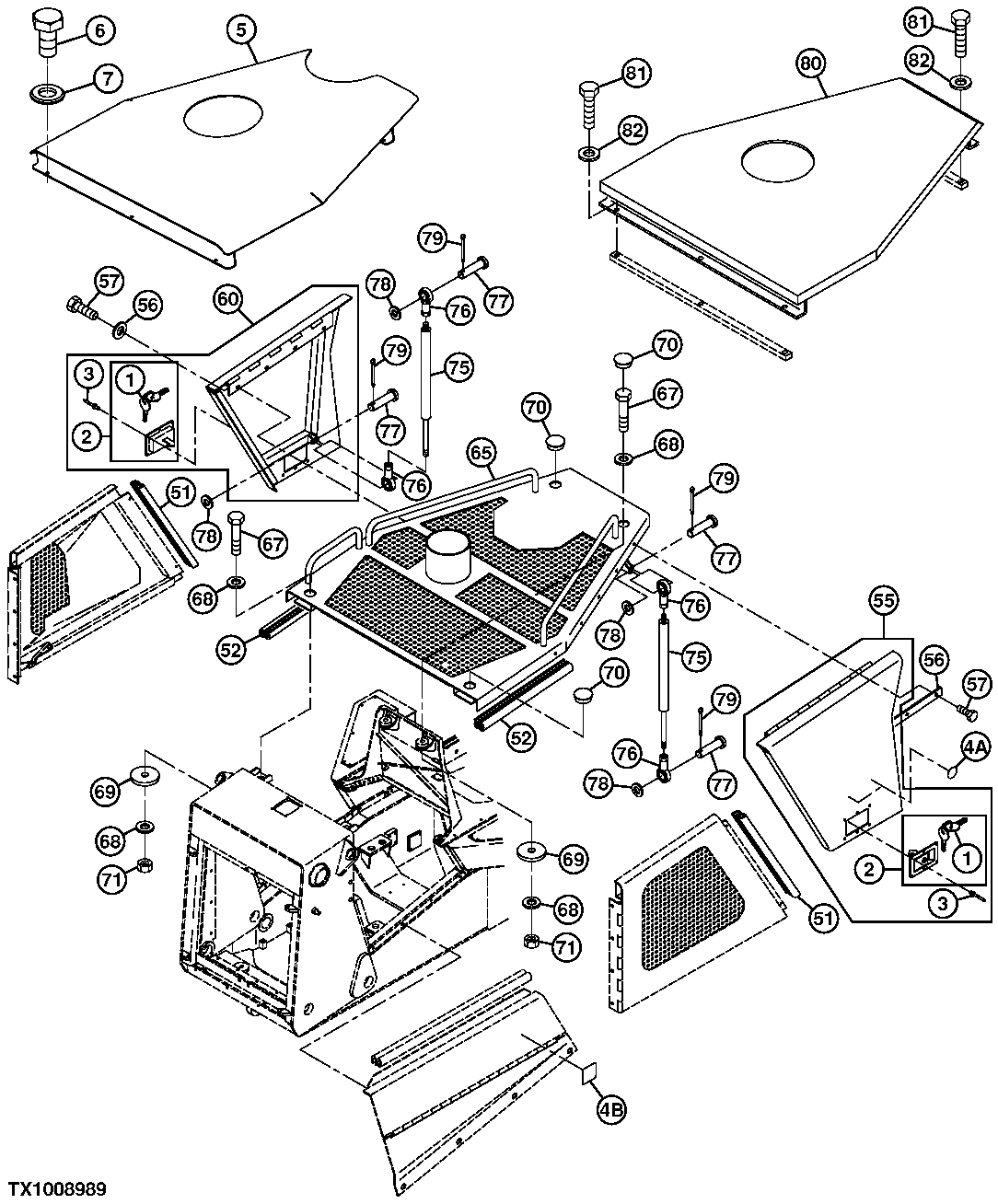

Engine Compartment Back Doors, Hood And Hood Support

Нет текстового описания
