Cylinder Mounted Work Lights And Lighting System

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278769	2	Housing	WORK LIGHT
2	AT278768	2	Bracket	-
3	19M7938	2	Cap Screw	M10 X 20
4	24M7466	2	Washer	10.500 X 20 X 2 mm, SUB FOR LW10289795 AND 24M7028, THIS APPLICATION
5	AT274413	1	Electrical Connector Assy	SOCKET
6	AT274439	1	Relay	FRONT OPTIONAL LIGHTS
7	21M7283	1	Screw	M5 X 8, SUB FOR AT276832
8	AT323089	2	Floodlamp	SUB FOR AT274996 AND AT279888 WORK LIGHT
9	AT135758	1	Bulb	SUB FOR AT274462
10	19M7167	1	Cap Screw	M10 X 25
11	12M1645	1	Washer	10.500 X 21 X 1 mm
12	14M7517	1	Lock Nut	M10, SUB FOR 14M7274, THIS APPLICATION
13	AT325430	2	Cap	SUB FOR AT274652
14	AT276982	1	Circuit Breaker	FRONT OPTIONAL LIGHTS
15	AT274773	2	Grommet	-
16	AT279890	2	Grommet	SUB FOR AT278695
17	AT278786	1	Headlamp Wiring Harness	-
19	AT279860	1	Push Switch	SUB FOR AT278682FRONT OPTIONAL LIGHTS
20	AT278785	1	Wiring Harness	NLA, WORK LIGHT KIT
21	AT187622	4	Elec. Connector Terminal	-
22	AT274404	1	Cap	-
23	AT274467	1	Electrical Connector Assy	-
24	AT274400	1	Elec. Connector Housing	-
25	AT280450	1	Housing	-
26	AT317582	1	Cap	SUB FOR AT280451, THIS APPLICATION
31	AT278762	1	Bracket	NLA, ORDER AT278768
32	AT275634	1	Bracket	-
33	14M7166	2	Lock Nut	M8
..	-	1	Part 29	AT194212 NLA, WHOLE GOODS) (NOT ILLUSTRATED) (INCLUDES ALL COMPONENTS NECESSARY TO ADD ADDITIONAL CYLINDER MOUNTED LIGHTS) (NOT TO BE USED WITH AT263501

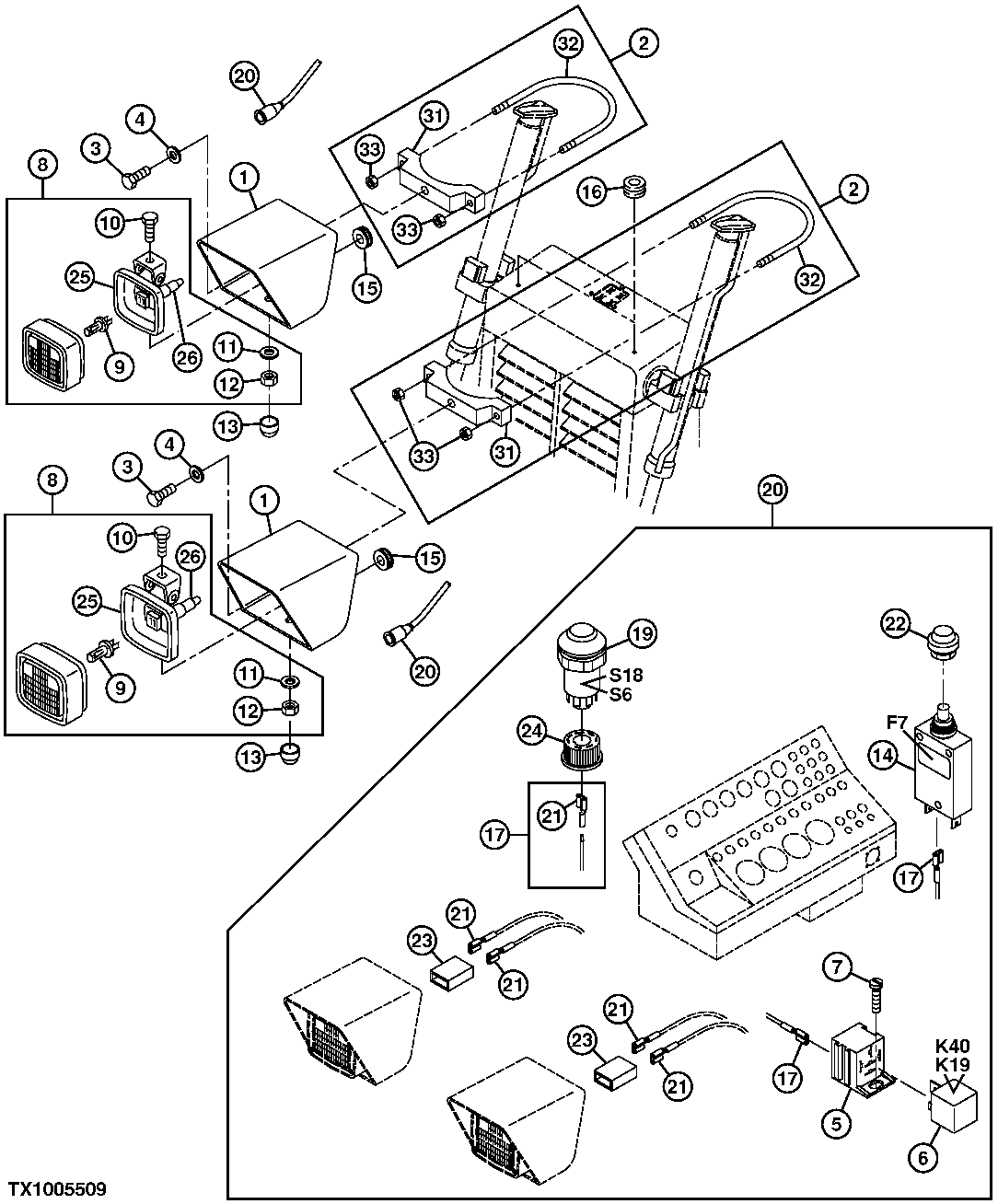

Cylinder Mounted Work Lights And Lighting System

Нет текстового описания
