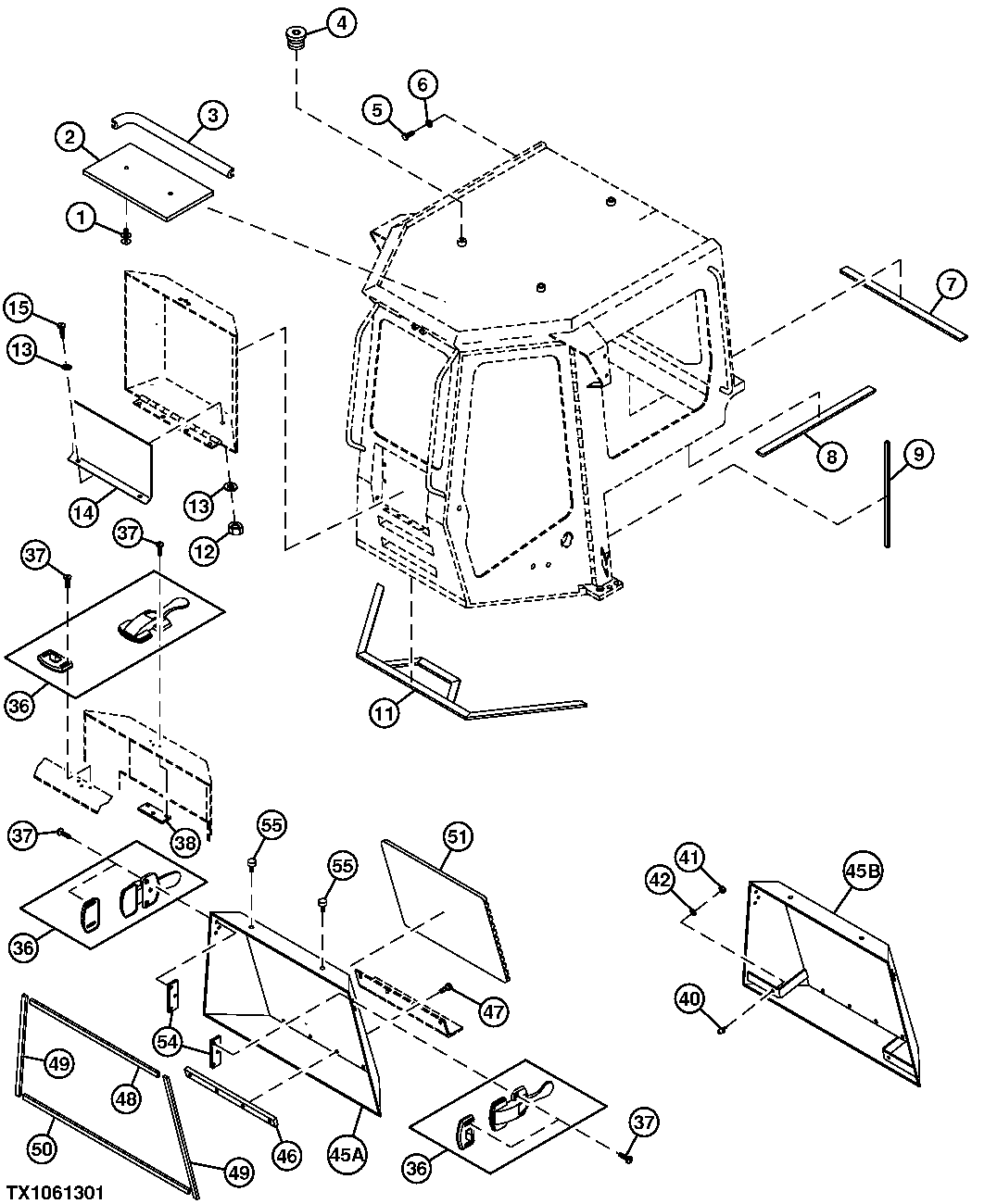

CAB STORAGE COMPARTMENT COMPONENT PARTS, CAB WEATHERSTRIP AND NOISE INSULATION

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT275181	2	Clip	-
2	AT278130	1	Insulator	(SOUND INSULATION)
3	-	1	Part 3	(MAKE FROM LW9812345 ) (SUB FOR AT218611 AND AT340132 )(CTL 1.78M)
4	AT274936	3	Plug	-
5	19M7932	1	Cap Screw	M8 X 16
6	LW10289803	1	Washer	(SUB FOR 24M7055, THIS APPLICATION)
7	AT278133	1	Weatherstrip	-
8	AT278132	2	Weatherstrip	-
9	AT278074	2	Weatherstrip	-
11	LW10306372	2	Weatherstrip	(SUB FOR AT277532)
12	14M7528	2	Lock Nut	M6
13	24M7054	4	Washer	6.400 X 12 X 1.600 mm
14	AT278224	1	Cover	-
15	21M7246	2	Screw	M6 X 16
36	AT274944	3	Latch	(STORAGE COMPARTMENT)
37	AT274209	6	Screw	-
38	AT275676	1	Bracket	-
40	AT324545	2	Stop	-
41	14M7272	2	Nut	M6
42	LW10289802	2	Washer	(SUB FOR 24M7088, THIS APPLICATION)
46	AT278071	1	Hinge	-
47	19M7932	4	Cap Screw	M8 X 16
48	-	1	Part 25	(MAKE FROM LW9812387 ) (SUB FOR AT277641 AND AT300553 ) (CTL 0.47M)
49	-	1	Part 26	(MAKE FROM LW9812387 ) (SUB FOR AT277641 AND AT300553)(CTL 0.35M)
50	-	1	Part 27	(MAKE FROM LW9812387 ) (SUB FOR AT277641 AND AT300553 ) (CTL 0.67M)
51	AT278221	1	Insulator	(RUBBER)
53	AT274209	12	Screw	-
54	AT275676	1	Bracket	-
55	AT277294	2	Stop	-
45A	AT278105	1	Cover	(LOWER STORAGE BOX)
45B	LW9403044	1	Cover	-

CAB STORAGE COMPARTMENT COMPONENT PARTS, CAB WEATHERSTRIP AND NOISE INSULATION
