Cab Platform, Seals, Brackets And Cab Tilt Cylinder And Tilt Cylinder Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278237	1	Frame	OPERATOR PLATFORM
2	14M7273	1	Nut	M8
3	AT278261	1	Bracket	-
4	AT218831	1	Bumper	-
5	AT278039	1	Plate	-
6	AT278040	1	Plate	-
7	AT278065	4	Pin Fastener	-
8	AT278037	1	Bracket	-
9	AT278038	1	Bracket	-
10	AT278041	8	Sleeve	-
11	19M7889	8	Cap Screw	M24 X 80
12	-	1	Part 12	MAKE FROM LW9812371 SUB FOR AT277208 AND AT300550CTL 2.1M
13	AT277077	2	Plug	-
14	AT275777	1	Cover	-
15	AT277465	1	Hydraulic Cylinder	CAB TILT
17	AT277368	1	Bearing	-
21	24M7055	4	Washer	8.400 X 16 X 1.600 mm
22	19M7932	4	Cap Screw	M8 X 16
23	-	1	Part 27	AT277539 NLA
24	AT275518	1	Sleeve	-
26	19M7881	2	Screw	M8 X 20
27	LW10289803	2	Washer	SUB FOR 24M7055, THIS APPLICATION
28	-	1	Part 31	AT300628 NLA
29	-	1	Part 32	AT300629 NLA
30	24M7396	1	Washer	21 X 34 X 3 mm
31	AT264884	2	Plate	-
32	LW240125702	4	Socket Head Screw	SUB FOR AT264666
33	AT218831	2	Bumper	-
34	14M7273	2	Nut	M8
35	LW10287745	1	Valve	-
36	-	1	Part 39	MAKE FROM LW10306137 SUB FOR AT324568
16A	-	1	Part 16	SUB AT320950CYLINDER LOCK AT278064 NLA
16B	AT320950	1	Channel	CYLINDER LOCK
18A	AT276828	1	Pin Fastener	-
18B	19M7968	1	Cap Screw	M20 X 130
19A	24M7499	1	Washer	20 X 30 X 4 mm, SUB FOR AT274100
19B	T18786	1	Washer	-
20A	11M7028	1	Cotter Pin	5 X 32 mm
20B	AT276800	1	Nut	-

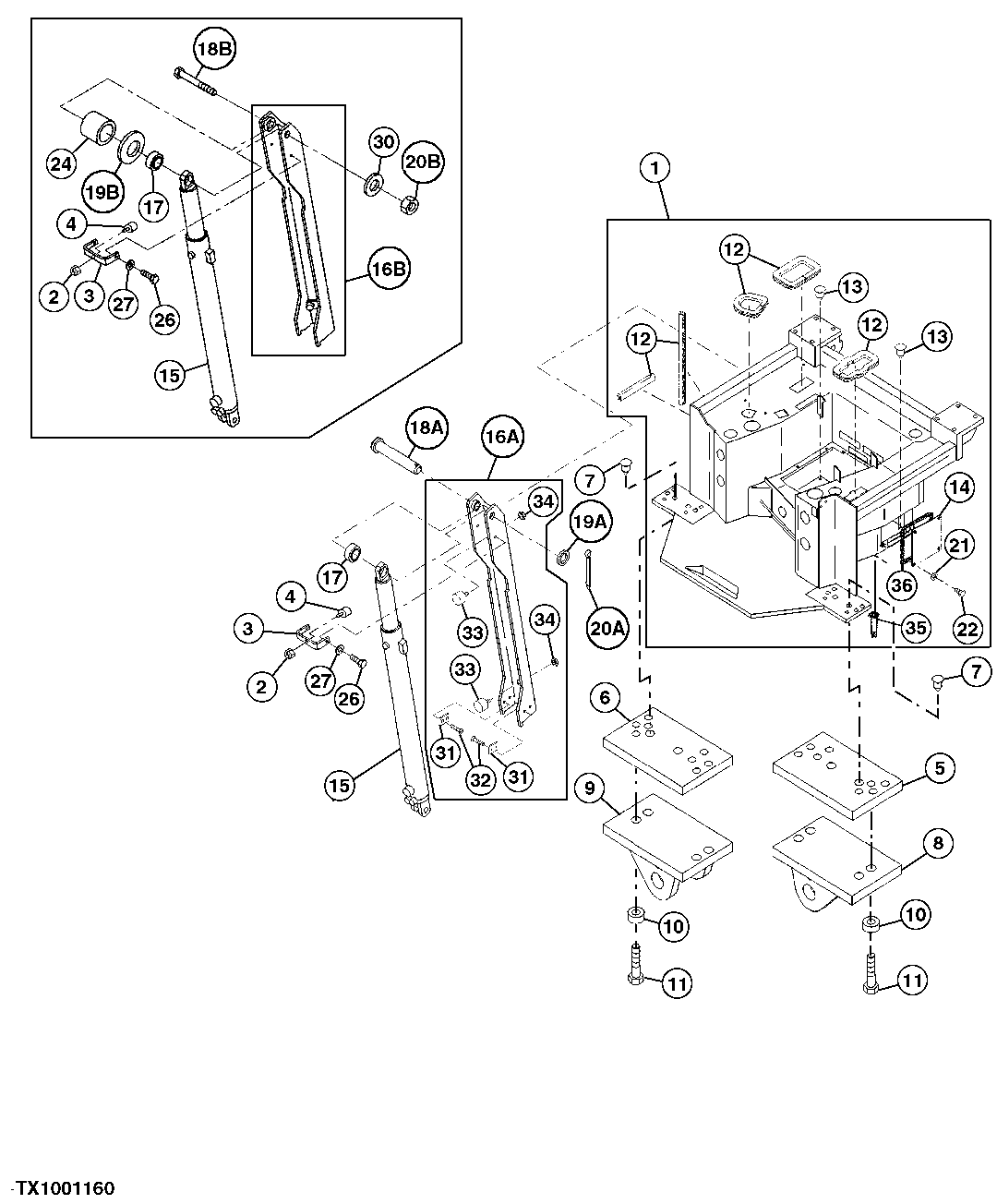

Cab Platform, Seals, Brackets And Cab Tilt Cylinder And Tilt Cylinder Kit
