CAB PLATFORM CONSOLES, COVERS, FOOTREST, SPEED CONTROL LEVER AND PARK BRAKE LOCK LEVER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278303	1	Console	LEFT
2	AT278304	1	Console	RIGHT
3	LW9408631	1	Mat	Rear, SUB FOR AT278305
4	LW10306373	1	Seal	SUB FOR AT278306
5	AT278247	8	Disk	-
6	AT218427	32	Screw	TAPPING M4 X 16
7	AT278046	1	Lever	-
8	AT278183	2	Strip	-
9	AT278182	2	Footrest	-
10	19M7872	4	Cap Screw	M12 X 25
11	19M7768	4	Screw	M6 X 16, M6 X 16
12	AT278044	1	Cover	-
13	24M7213	2	Washer	10.500 X 25 X 4 mm
14	19M7402	2	Cap Screw	M10 X 25
15	AT278045	1	Support	-
16	LW10289802	4	Washer	SUB FOR 24M7088, THIS APPLICATION
17	19M8618	4	Screw	M6 X 12
18	AT304041	1	Bracket	-
19	19M8425	2	Cap Screw	M6 X 16
20	LW10289802	2	Washer	SUB FOR 24M7088, THIS APPLICATION
21	AT277010	1	Clamp	-
22	19M7881	1	Screw	M8 X 20, SUB FOR 19M7139
23	14M7273	1	Nut	M8
24	AT317550	1	Switch	SUB FOR AT274444, PARK BRAKE
25	AT277387	1	Control Lever	COMPONENTS ON ANOTHER PAGE
25	AT301681	1	Control Lever	COMPONENTS ON ANOTHER PAGE
26	19M7061	4	Screw	M6 X 25, SUB FOR LW4901238 AND 19M7574
27	AT311198	1	Plate	-
28	AT311199	2	Rivet	-
29	AT277010	1	Clamp	-
30	AT274267	1	Socket Head Screw	-
31	AT306739	1	Bushing	-
32	-	1	Part 33	(SERVICE WITH COMPLETE ASSEMBLY, AT278046)
33	AT306741	2	Thrust Washer	-
34	AT274053	2	Spring	-
35	AT309788	1	Set Screw	-
36	AT274199	1	Knob	-
37	AT303318	1	Nut	-
38	AT306752	1	Set Screw	-
39	AT314785	1	Bearing With Housing	Park Brake

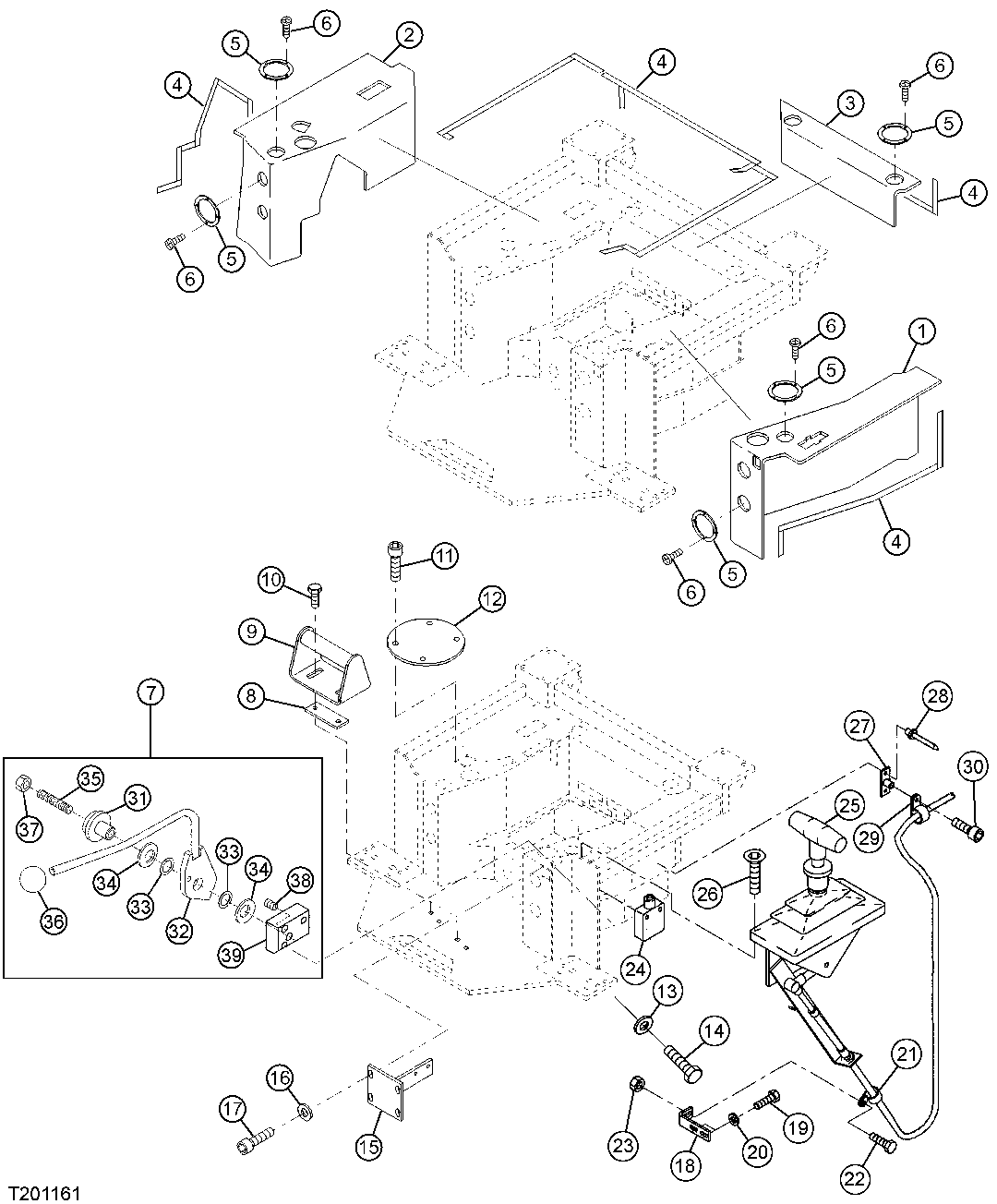

CAB PLATFORM CONSOLES, COVERS, FOOTREST, SPEED CONTROL LEVER AND PARK BRAKE LOCK LEVER
