CAB HEATER BOX MOUNTING BRACKET AND HEATER HOSES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT274058	20	Screw	-
2	AT227669	10	Louver	(SUB FOR AT274826 AND AT151036)
3	AT277525	1	Grommet	-
4	R44302	1	Tie Band	(SUB FOR AT218613)
5	LW408402101	2	Screw	(SUB FOR 21M7265, THIS APPLICATION)
6	24M7027	2	Washer	5.300 X 10 X 1 mm
7	AT274464	1	Electrical Connector Assy	-
8	24M7027	2	Washer	5.300 X 10 X 1 mm
9	19M7372	2	Cap Screw	M5 X 16
10	AT277278	1	Bushing	-
11	AT276200	1	Grommet	-
12	AT274265	8	Hose Clamp	-
13	-	1	Part 13	(MAKE FROM TY22328)(CTL 0.4M)
14	-	1	Part 14	(MAKE FROM TY22328)(CTL 0.22M)
15	AT278063	1	Plate	-
16	21M7265	2	Screw	M5 X 12, (SUB FOR 19M7640)
17	24M7027	2	Washer	5.300 X 10 X 1 mm
18	LW9410761	1	Bracket	(SUB FOR AT278177 AND LW9406519)
19	19M7881	8	Screw	M8 X 20
20	24H1621	8	Washer	11/32" X 1" X 0.220"
21	21M7278	12	Screw	M5 X 10
22	19M7372	3	Cap Screw	M5 X 16
23	24M7027	4	Washer	5.300 X 10 X 1 mm
24	LW7014290	3	Bushing	(SUB FOR AT275110)(PLASTIC)
25	19M7768	1	Screw	M6 X 16
26	24M7088	1	Washer	6.600 X 12 X 1.600 mm
27	19M8919	2	Screw	(SUB FOR AT274213)
28	AT275112	1	Clip	-
29	R113050	1	O-Ring	(SUB FOR AT275095)
30	R33259	1	O-Ring	(SUB FOR AT275111)
31	AT315956	1	Screw	(SUB FOR AT274223)
32	21M7396	1	Screw	M4 X 10
33	24M7117	4	Washer	4.300 X 9 X 0.800 mm
34	21M7395	4	Screw	M4 X 8, (SUB FOR AT274060)
35	AT274362	1	Heater	-
35	LW10286510	1	Heater	-
36	AT275031	2	Hose Clamp	-
37	AT278241	1	Weatherstrip	-
37	LW9404877	1	Mat	-
38	AT276200	2	Grommet	-
38	AT264747	2	Grommet	-
39	LW10286508	1	Control Console	(COMPONENTS ON ANOTHER PAGE)
40	-	1	Part 43	(MAKE FROM LW10306137 ) (SUB FOR AT324568)(CTL 0.45M)
41	-	1	Part 44	(MAKE FROM LW10306137 ) (SUB FOR AT324568)(CTL 0.2M)
42	-	1	Part 45	(MAKE FROM LW10306137 ) (SUB FOR AT324568)(CTL 0.45M)
43	-	1	Part 46	(MAKE FROM LW10306137 ) (SUB FOR AT324568)(CTL 0.2M)
44	-	1	Part 47	(MAKE FROM LW10306154 ) (SUB FOR LW10300325)(CTL 0.38M)
45	-	1	Part 48	(MAKE FROM LW10306154 ) (SUB FOR LW10300325)(CTL 0.57M)

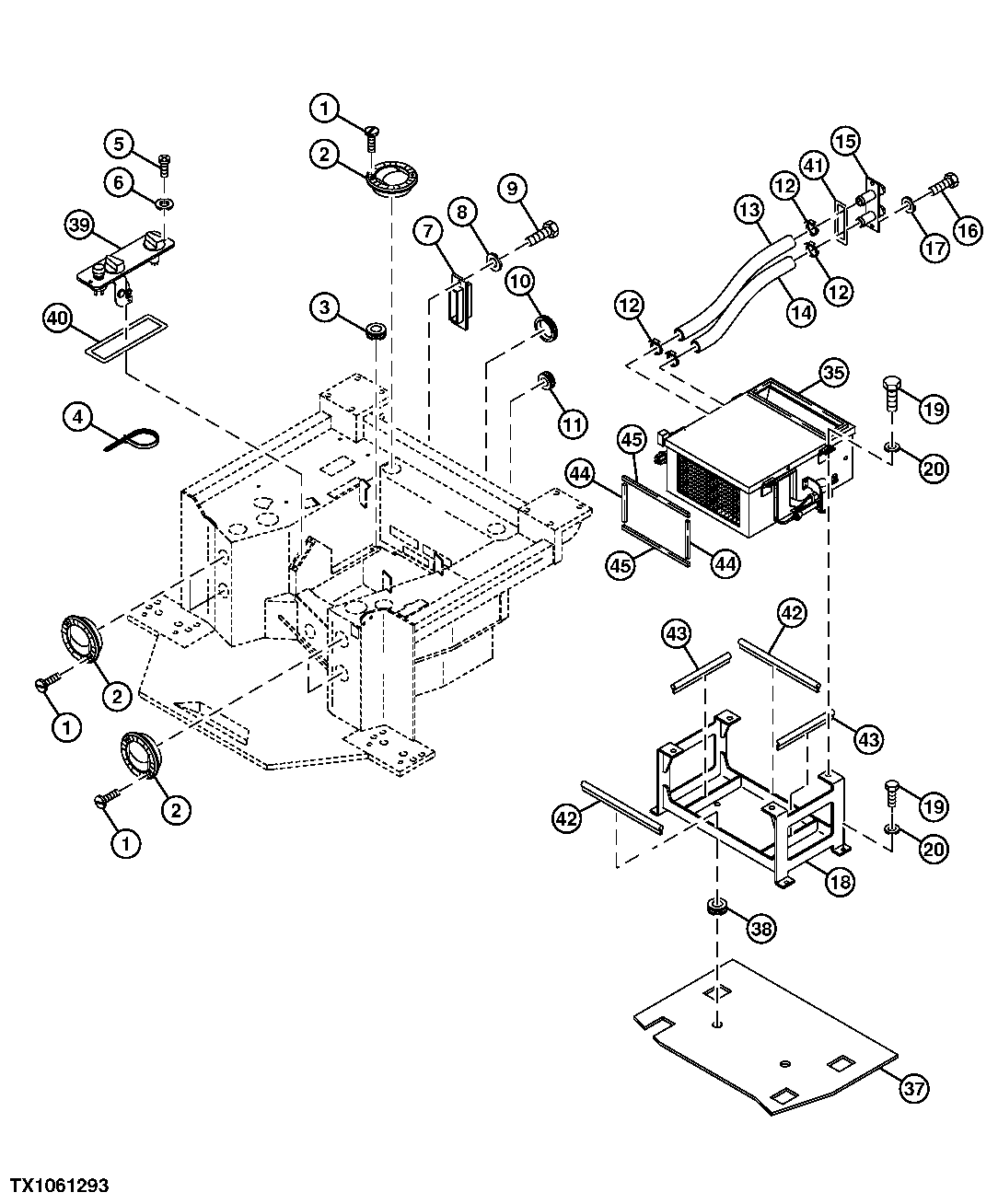

CAB HEATER BOX MOUNTING BRACKET AND HEATER HOSES
