AIR CONDITIONING THERMOSTAT & VENTILATION

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

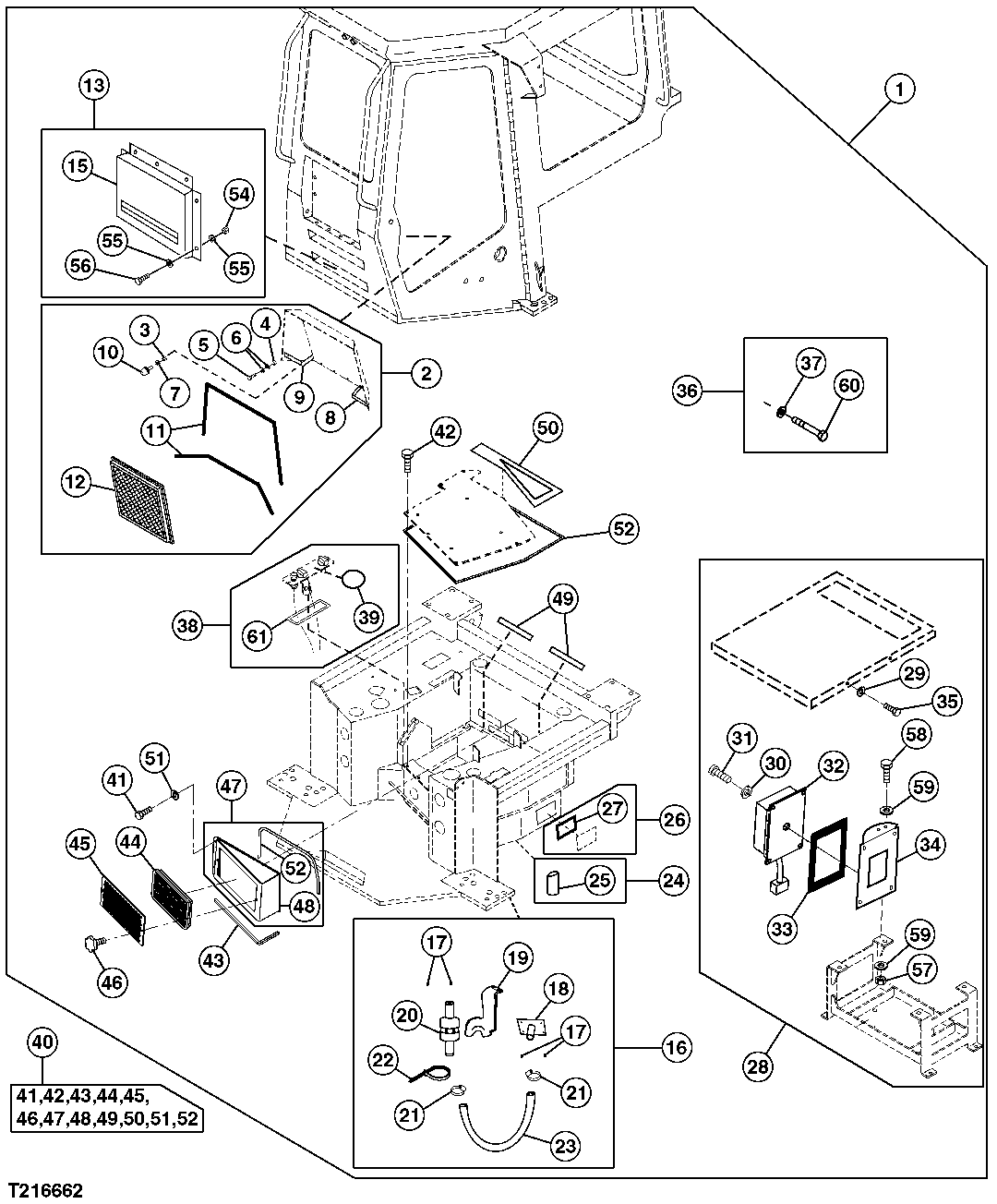

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( AT324512 NLA) (WHOLE GOODS) (A/C IMPROVEMENT)
2	-	1	Part 2	(WHOLE GOODS) ( AT324516 NLA)
3	14M7272	2	Nut	M6
4	14M7273	4	Nut	M8
5	19M7881	4	Screw	M8 X 20
6	24M7055	8	Washer	8.400 X 16 X 1.600 mm
7	24M7088	2	Washer	6.600 X 12 X 1.600 mm
8	AT324542	1	Bracket	(LH)
9	AT324543	1	Bracket	(RH)
10	AT324545	1	Stop	-
11	-	1	Part 11	(MAKE FROM LW10306139 ) (SUB FOR AT324546)
12	AT322767	1	Air Filter	-
13	-	1	Part 13	(WHOLE GOODS) (RETROFIT COVER) ( AT324517 NLA)
15	AT324562	1	Cover	-
16	-	1	Part 15	(WHOLE GOODS) (WATER DRAIN) ( AT324518 NLA)
17	AT277212	5	Rivet	-
18	AT324563	1	Fitting	-
19	AT324564	1	Bracket	-
20	AT324565	1	Check Valve	-
21	AT324566	2	Clip	-
22	R44302	1	Tie Band	-
23	TY22328	1	Bulk Hose	(SUB FOR T60811)
24	-	1	Part 23	(WHOLE GOODS) (WATER DRAIN CONDENSER) ( AT324519 NLA)
25	AT324567	1	Tube	-
26	-	1	Part 25	(WHOLE GOODS) (SEALING) ( AT324520 NLA)
26	-	3	Part 26	(MAKE FROM LW10306138 ) (SUB FOR AT324546)(NOT ILLUSTRATED)
27	-	1	Part 27	(MAKE FROM LW10306137 ) (SUB FOR AT324568)
28	-	1	Part 28	(WHOLE GOODS) (A/C REWORK) ( AT324521 NLA)
29	24M7027	6	Washer	5.300 X 10 X 1 mm
30	24M7117	4	Washer	4.300 X 9 X 0.800 mm
31	21M7395	4	Screw	M4 X 8
32	AT320746	1	Thermostat	(A/C)
33	-	1	Part 33	(MAKE FROM LW10306137 ) (SUB FOR AT324568)
34	AT324569	1	Plate	-
35	19M7700	6	Cap Screw	M5 X 10, (SUB FOR AT324570)
36	-	1	Part 36	(WHOLE GOODS) (A/C REWORK) ( AT324522 NLA)
37	24M7027	6	Washer	5.300 X 10 X 1 mm
38	-	1	Part 38	(WHOLE GOODS) (ELEMENT) ( AT324532 NLA)
39	-	1	Part 39	( AT324571 NLA)
40	-	1	Part 40	(WHOLE GOODS) (CONVERSION) ( AT324534 NLA)
41	19M7077	6	Cap Screw	M6 X 20
42	19M7407	7	Cap Screw	M8 X 25
43	-	1	Part 43	(MAKE FROM LW9812362 ) (SUB FOR AT266601)
44	AT324580	1	Filter Element	-
45	AT324581	1	Cover	-
46	AT324582	2	Handle	-
47	-	1	Part 47	( AT324583 NLA)
48	AT324588	1	Filter Housing	-
49	-	1	Part 49	(MAKE FROM LW10306136 ) (SUB FOR AT324585)
50	-	1	Part 50	( AT324589 NLA)
51	24M7088	6	Washer	6.600 X 12 X 1.600 mm
52	-	1	Part 52	(MAKE FROM LW10306139 ) (SUB FOR AT324546)
53	TY15709	1	TAPE	(NOT ILLUSTRATED) (USE TO SEAL AIR LEAKS)
54	14M7273	7	Nut	M8
55	24M7055	14	Washer	8.400 X 16 X 1.600 mm
56	19M7881	7	Screw	M8 X 20
57	14M7273	2	Nut	M8
58	19M7881	2	Screw	M8 X 20
59	24M7055	4	Washer	8.400 X 16 X 1.600 mm
60	19M7700	6	Cap Screw	M5 X 10, (SUB FOR AT324570)
61	-	1	Part 61	(MAKE FROM LW10306137 ) (SUB FOR AT324568)
