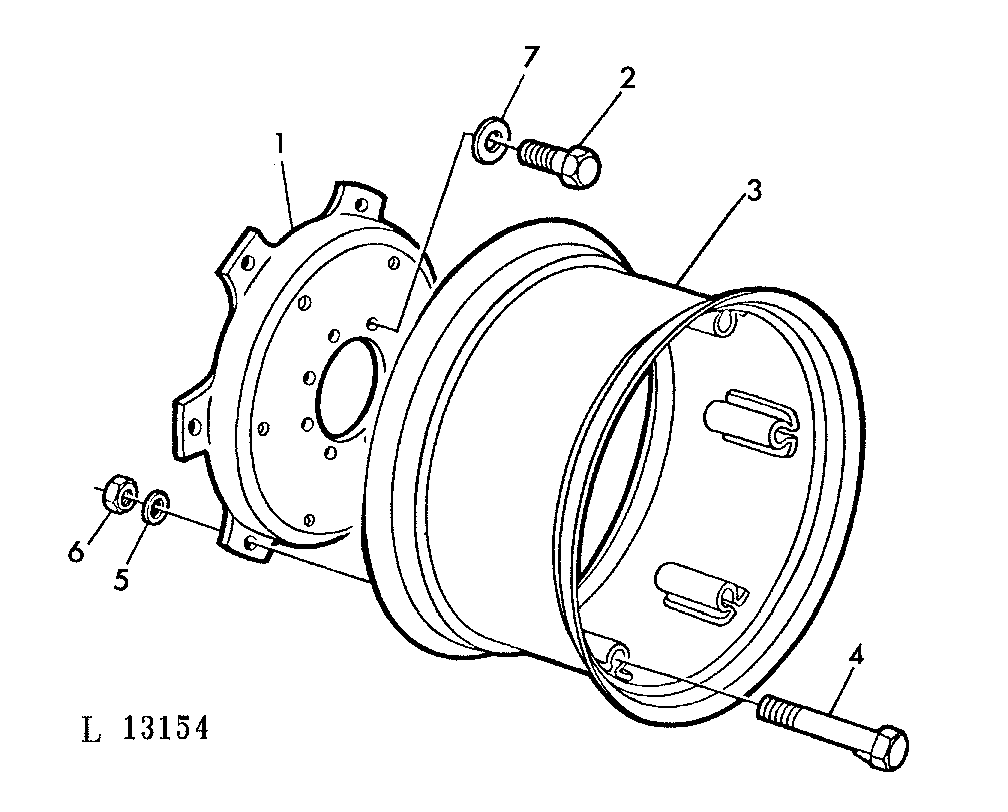

STEEL-DISK REAR WHEELS(BRACKET WELDED) [03B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L25819	2	WHEEL CENTER	(A) 11.2/10-28,12.4/11-28 13.6/12-28(OU) (SUB FOR L24709)
1	T28189	2	WHEEL	(A) 11.2/10-24,4/11-24(OU)
1	L31667	2	WHEEL CENTER	(A) 13.6/12-28,14.9/13-28 16.9/14-28
1	L23560	2	WHEEL CENTER	(A) 13.6/12-28,14,9/13-28 16.9/14-28
1	L24762	2	WHEEL CENTER	(A) 14.9/13-30
1	L31669	2	Wheel Center	(A) 12.4/11-32
1	L23558	2	WHEEL CENTER	(A) 12.4/11-32
1	L24708	2	WHEEL CENTER	(A) 12.4/11-36
1	L31667	2	WHEEL CENTER	(A) 12.4/11-28,13.6/12-28 14.9/13-28
1	L23560	2	WHEEL CENTER	(A) 12.4/11-28,13.6/12-28 14.9/13-28
1	L24708	2	WHEEL CENTER	(A) 9.5/9-36
2	JD21	16	Wheel Bolt	9/16"(OU) (SUB FOR JD16, L24702, L28642)
2	L31689	16	Cap Screw	(SUB FOR L30824)
3	AT26316	2	RIM	(A) 11.2/10-24,12.4/11-24(OU)
3	AL24251	2	RIM	(A) 16.9/14-28
3	AL17754	2	RIM	(A) 14.9/13-30
3	AL15369	2	RIM	(A) 13.6/12-28,14.9-13/28 16.9/14-28
3	AL17750	2	RIM	(A) 12.4/11-36
3	AL15368	2	RIM	(A) 12.4/11-32
3	AL18888	2	RIM	(A) 9.5/9-36 (SUB FOR AL15371)
3	AL15369	2	RIM	(A) 13.6/12-28,14.9/13-28
3	AL16602	2	RIM	(A) 12.4/11-28
4	T27511	12	CAP SCREW	9/16"
5	24M7145	12	Washer	15MM (SUB FOR T31506, 12H317)
6	14H888	12	Nut	9/16"
7	24M7112	16	WASHER	15X28X3MM

STEEL-DISK REAR WHEELS(BRACKET WELDED) [03B21]
